| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHS FCC CE GS UL FDA etc |
| Model Number: | OLST12R-CDS1 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Individual package Or 10pcs/pallet Or 20pcs/pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-120k per month |
| Part Number: | OLST12R-CDS1 | Form Factor: | SFP |
|---|---|---|---|
| Data Rate: | 1000Mbps | Connector: | RJ-45 |
| Media: | Cat 5e/6/6a | Compatibility: | Customized |
| Distance: | 100m | DOM/DDM: | Not Supported |
| Temperature: | 0~70 °C | Vendor Name: | OEM |

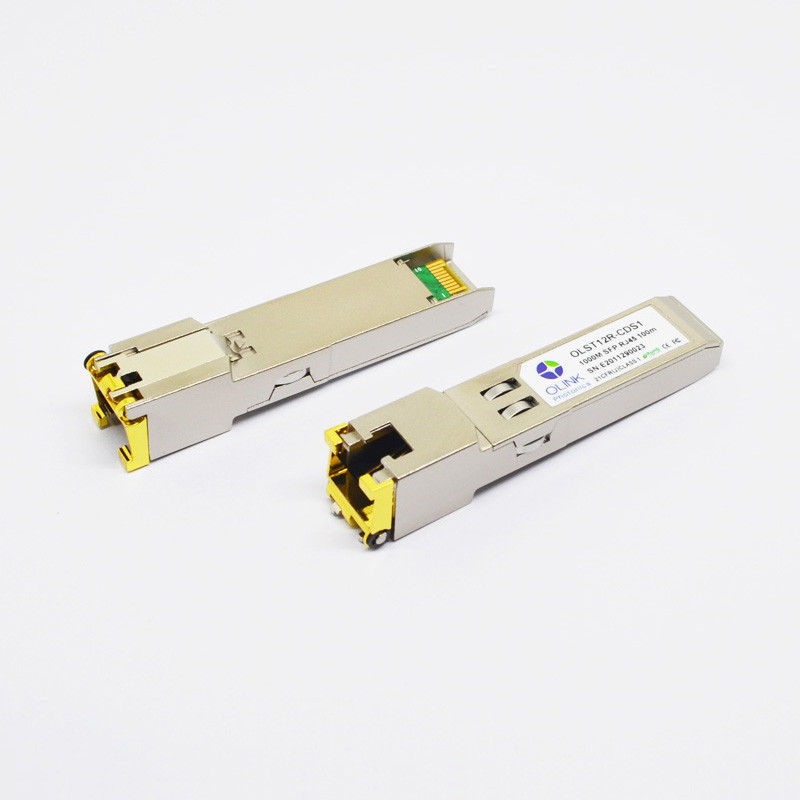

Customized 1000BASE-T SFP Copper RJ-45 100m Optical Transceiver Module
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 10 | 1000 | Mb/s | ||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 320 | 375 | mA | ||
| Operating Case Temp. | Tc | 0 | 70 | °C |
Low-Speed Signals Electrical Interface (TOP(C) = 0 to 70℃, VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| SFP Output _Low | VOL | 0 | 0.5 | V | 1 | |
| SFP Output _High | VOH | Vcc - 0.5 | Vcc+0.3 | V | 1 | |
| SFP Input_Low | VIL | 0 | 0.8 | V | 1 | |
| SFP Input_High | VIH | 2.0 | Vcc+0.3 | V | 1 |
Notes:
1. 4.7k to 10k pull-up to host_Vcc, measured at host side of connector
2. MOD_DEF(1) (SCL) and MOD_DEF(2) (SDA), are open drain CMOS signals. Both MOD_DEF(1) and MOD_DEF(2) must be pulled up to host_Vcc.
High-Speed Electrical Interface (TOP(C) = -0 to 70 ℃, VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Line Frequecy | FL | 125 | MHz | 2 | ||
| Tx Output Impedance | Zout,tx | 100 | Ω | 3 | ||
| Rx Input Impedance | Zin.rx | 100 | Ω | 3 | ||
| Single ended data input swing | Vin | 250 | 1200 | mV | ||
| Single ended data output swing | Vout | 350 | 800 | mV | ||
| Rise/Fall Time | Tr/Tf | 175 | ps | 4 | ||
| Tx Input Impedance | Zin,tx | 50 | Ω | |||
| Rx Output Impedance | Zout,rx | 50 | Ω | |||
Notes:
1. All high-speed signals are AC-coupled internally.
2. 5-level encoding, per IEEE 802.3
3. Differential, for all Frequencies between 1MHz and 125MHz Differential.
4. 20%-80%
Product Features
● Up to 1.25Gb/s bi-directional data links
● Compact RJ-45 connector
● Hot pluggable SFP footprint
● 1Gigabit Ethernet over Cat 5 cable
● Applicable for 100m distance transmission
● Low power consumption, < 1.2W
● Access to physical layer IC via 2-wire serial bus
● 1000 BASE-T operation in host systems with SERDES interface
Applications
● Switch to Switch interface
● Switched backplane applications
● Router/Server interface
● Other optical transmission systems
Ordering Information
| Part Number | Description |
| OLST12R-CDS1 | Copper SFP,1000BASE-T 1000M Only 0~70°C |
| OLSTMMR-CNS1 | Copper SFP, 10/100/1000M 0~70°C |
