| Place of Origin: | SZ China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | ISO9001,ISO14001,OHSAS18001 |
| Model Number: | OLSD**2XL-CD10 |
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | TT/Net 30days |
| Supply Ability: | 80-100k per month |
| Part Number: | OLSD**2XL-CD10 | Compliant To: | IEEE 802.3cc |
|---|---|---|---|
| Transmission Distance: | 10km | Wavelength: | CH21-60 |
| Power Dissipation: | <2.3W | Connector Type: | LC |
| High Light: | 10km 25G SFP28 Transceiver,ODM 25G SFP28 Transceiver,10km SFP28 Transceiver |
||

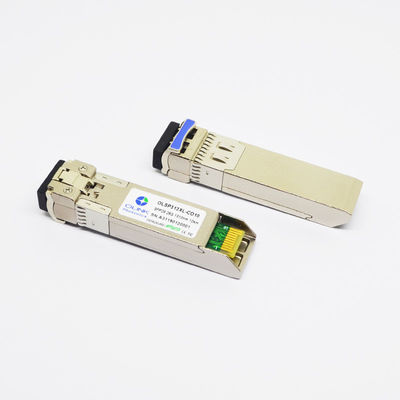

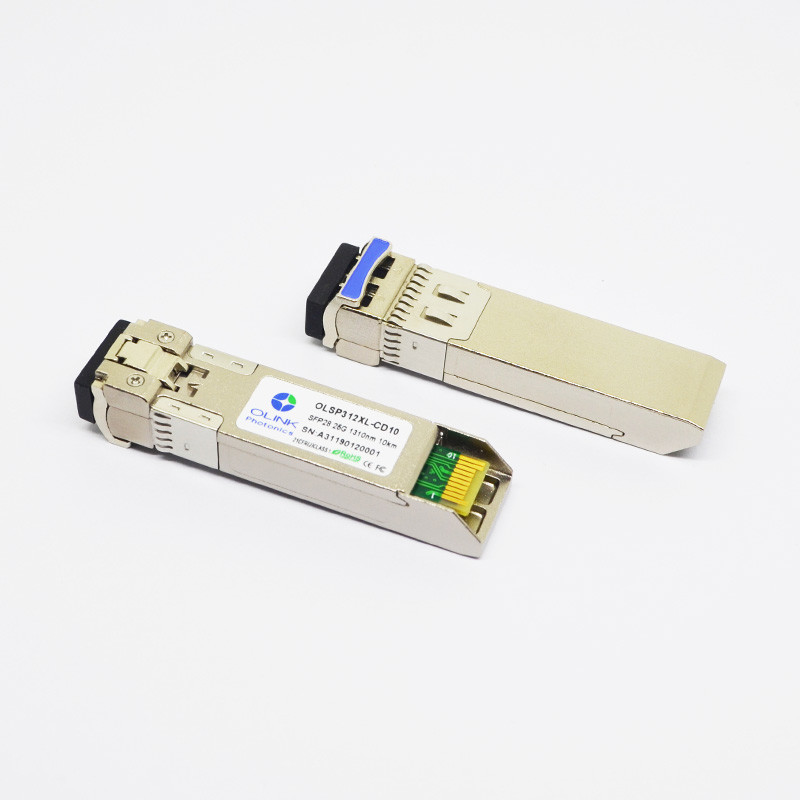

Single Mode 10km 25G SFP28 Transceiver
Dell Compatible SFP28 25G DWDM CH21-60 10km LC SMF Optical Transceiver Module DOM
Product Features
● Duplex LC connector
● Hot-pluggable SFP28 footprint C-band cooled EML laser
● High performance PIN receiver
● RoHS compliant and Lead Free
● Distance up to 10km on 9/125um SMF
● Metal enclosure for lower EMI
● Power dissipation<2.3W
● Commercial and Extend operating temperature optional
Applications
● 25.78 Gb/s single lane
● Other optical links
Product Descriptions
Olinkcom’s OLSDxx2XL-CD10 single-mode transceiver is SFP28 module for duplex optical data
communications support up to 25.78Gb/s. It is with the SFP28 20-pin connector to allow hot plug capability.
Digital diagnostic functions are available via an I C. It has built-in clock and data recovery (CDR). This
module is designed for single-mode fibe.
Optical Characteristics (TOP(C) = 0 to 70 ℃, VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Center Wavelength | λc | As per ITU-T 694.1 | nm | |||
| Center Wavelength (End of Life) | λc_EOL | λc±100pm | ||||
| Ave. output power (Enabled) | PAVE | -3 | 5 | dBm | ||
| Side-Mode Suppression Ratio | SMSR | 35 | dB | |||
| Extinction Ratio | ER | 7 | dB | |||
| RMS spectral width | Δλ | 0.4 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Receiver | ||||||
| Operating Wavelength | λ | 1529 | 1565 | nm | ||
| Receiver Sensitivity | PSEN | -14 | dBm | 1 | ||
| Overload | PAVE | +2 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -14 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | 5 | dB | ||
Notes:
1.Measured with data rate at 25.78Gb/s,ER=7dB, Tc=25degC, BER less than5E-5 with PRBS231-1.
More details of our products:
High Reliable Optical Components and Excellent Design
1. DLB laser and PIN photodiode
2. Thick Gold Finger
3. Plating Hard Gold Shell
Cost-effective and Reliable Transmission
Fully Tested for compatibility in our matched switches.
Our all modules have 3 years warranty!
