| Place of Origin: | SZ China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | ISO9001,ISO14001,OHSAS18001 |
| Model Number: | OLSC292XL-CD10 |
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | TT/Net 30days |
| Supply Ability: | 80-100k per month |
| Part Number: | OLSC292XL-CD10 | Compliant To: | SFF-8402 For SFP28 Solution |
|---|---|---|---|
| Transmission Distance: | 10km | Wavelength: | 1311nm |
| Data Rate: | 25G | Form Factor: | SFP28 |
| High Light: | 1311nm 25G SFP28 Transceiver,LC 25G SFP28 Transceiver,1311nm LC Optical Module |
||

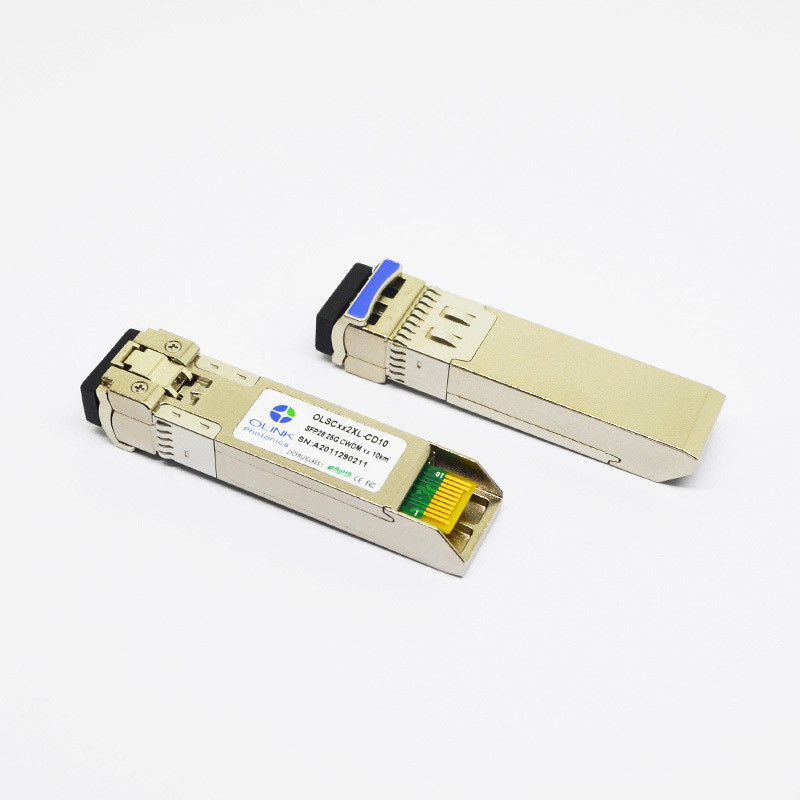

Juniper Compatible 25G SFP28 Transceiver 1311nm 10km DOM LC Optical Module
Juniper Networks Compatible 25G CWDM SFP28 1310nm 10km DOM LC Optical Transceiver
Product Features
● Supports up to 25.78Gb/s bit rates
● compliant to IEEE 802.3cc
● compliant to SFF-8402 for SFP28 solution
● Digital Diagnostic Monitor Interface with SFF-8472
● Hot pluggable SFP+ footprint
● 1271nm ,1291nm,1311nm,1331nm ,1351nm,1371nm CWDM transmitter
● Applicable for 10Km SMF connection
● High transmission margin
● Low power consumption<1.5W
● Single 3.3V power supply
● Operating case temperature:
Commerical:0 to 70 °C Exceptional:-20 to 80 °C
Applications
● 25.78 Gb/s single lane
● Other optical links
Product Descriptions
Wavelength:1271nm ,1291nm,1311nm,1331nm,1351nm,1371nm CWDM DFB transceiver
Its Features:
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(E) =-20 to 80℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | -6.5nm | 1271,1291, 1311,1331, 1351,1371 | +6.5nm | nm | |
| Ave. output power (Enabled) | PAVE | 0 | +6 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 3.5 | dB | |||
| RMS spectral width(-20dB) | Δλ | 1 | nm | |||
| Dispersion penalty | TDP | 2,4,4.5 | dB | |||
| Relative Intensity Noise | RIN | -130 | dB/Hz | |||
| Receiver | ||||||
| Operating Wavelength | 1260 | 1610 | nm | |||
| Receiver Sensitivity(OMA) | PSen | -13.8 | dBm | 3 | ||
| Average Receiver Power | Pimax | -13.3 | 2 | dBm | ||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -12 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | 5 | dB | ||
Notes:
1. Average power figures are informative only, per IEEE 802.3cc..
2. Measured at the BER less than 5E-5, back to back. The measure pattern is PRBS 231-1 with worst ER=4.5@ 25.78Gb/s.
This SFP28 25G provides 25GBase-CWDM throughput up to 10km over single mode fiber (SMF) using a wavelength of 1270nm through an LC duplex connector. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.
This module also 100% supports Brocade ,Cisco,D-link,Arista,HW,Dell,FS,AVAYA,Allied Telesis,MikroTik Switches!
Offering stable reliable products is our eternal pursuit!You are Absolutely worth it!
Quality warranty:3 years.
