| Place of Origin: | SZ China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | ISO9001,ISO14001,OHSAS18001 |
| Model Number: | OLSP5525L-CDH1 |
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | TT/Net 30days |
| Supply Ability: | 80-100k per month |
| Part Number: | OLSP5525L-CDH1 | Data Rate: | 2.5G |
|---|---|---|---|
| Transmission Distance: | 40km | Wavelength: | 1310nm |
| Low Power Consumption: | < 1.2W | Support Industrial Version: | Yes |
| Compatible: | Alcatel-Lucent | Connector Type: | LC |
| High Light: | 2.5G SPF Transceiver,100km SPF Transceiver,2.5G sfp lc |
||

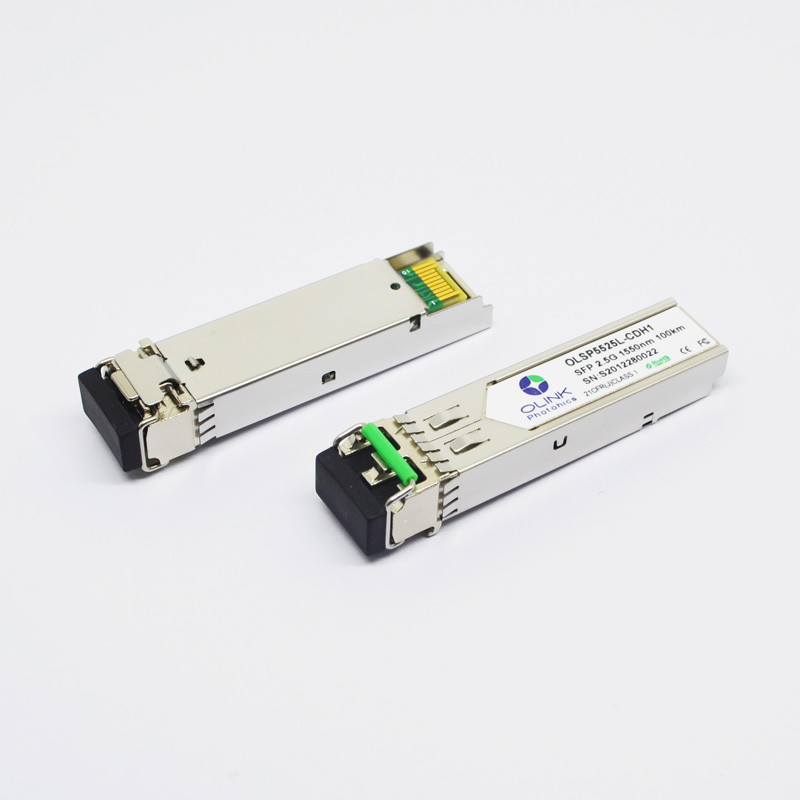

2.5G Gigabit Ethernet Optical SPF Transceiver 1550nm 100km Alcatel Lucent Compatible
Alcatel-Lucent Compatible 2.5G Gigabit Ethernet1550nm 100km LC SFP Optical Transceivers
Product Features
● Supports 2.5Gbps bit rates
● Duplex LC connector
● Hot pluggable SFP footprint
● 1550nm DFB laser transmitter and APD photo-detector
● Applicable for 100Km SMF connection
● Low power consumption, < 1.2W
● Digital Diagnostic Monitor Interface
● Compliant with SFP MSA and SFF-8472
● Very low EMI and excellent ESD protection
● Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 85 °C
Applications
● SDH STM-16 and SONET OC-48 system
● 2X Fiber Channel
● Switch to Switch interface
● Switched backplane applications
● Router/Server interface
● Other optical transmission systems
Product Descriptions
OLSP5525L-C(I)DH1,SFP transceivers are high performance, cost effective modules supporting dual data-rate of 2.5Gbps and 100km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1530 | 1550 | 1565 | nm | |
| Ave. output power (Enabled) | PAVE | 0 | 5 | dBm | 1 | |
| Extinction Ratio | ER | 8.5 | dB | 1 | ||
| Side mode Suppression Ratio | SMSR | 30 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 0.26 | ns | 2 | ||
| Dispersion penalty | TDP | 3.2 | dB | |||
| Output Optical Eye | ITU-T G.957 Compliant | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1270 | 1610 | nm | ||
| Receiver Sensitivity | PSEN1 | -28 | dBm | 3 | ||
| Overload | PAVE | -7 | dBm | 3 | ||
| LOS Assert | Pa | -40 | dBm | |||
| LOS De-assert | Pd | -29 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Besides compatible Alcatel-lucent,this time is no problem to 100% connect with Cisco,Juniper,D-link,MikroTik etc switches.
