| Place of Origin: | SZ China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | ISO9001,ISO14001,OHSAS18001 |
| Model Number: | OLSP3125L-CD02 |
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | TT/Net 30days |
| Supply Ability: | 80-100k per month |
| Part Number: | OLSP3125L-CD20 | Data Rate: | 2.5G |
|---|---|---|---|
| Transmission Distance: | 20km | Wavelength: | 1310nm |
| Low Power Consumption: | < 1.0W | Support Industrial Version: | Yes |
| High Light: | 2.5G SFP Optical Transceivers,ODM SFP Optical Transceivers,2.5 G Sfp Module |
||

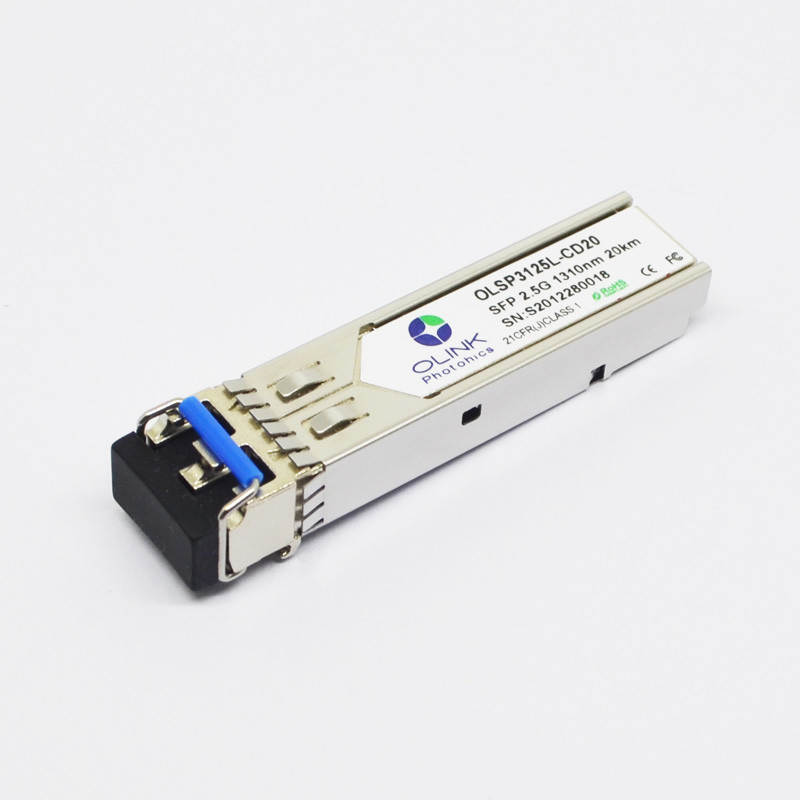

D Link Compatible SFP Optical Transceivers 1310nm 20km 2.5 G Sfp Module
D-Link Compatible 2.5G 1310nm 20km LC Connector SFP Optical Transceivers
Product Features
● Supports bit rates up to 2.5Gbps
● Duplex LC connector
● Hot pluggable SFP footprint
● 1310nm DFB laser transmitter and PIN photo-detector
● Applicable for 10Km SMF connection
● Low power consumption, < 1.0W
● Digital Diagnostic Monitor Interface
● Compliant with SFP MSA and SFF-8472
● Very low EMI and excellent ESD protection
● Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 85 °C
Applications
● SDH STM-16 and SONET OC-48 system
● 2X Fiber Channel
● Switch to Switch interface
● Switched backplane applications
● Router/Server interface
● Other optical transmission systems
Product Descriptions
Our SFP transceivers are high performance, cost effective modules supporting dual data-rate of 2.5Gbps and 10km transmission distance with SMF.This module consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1270 | 1310 | 1360 | nm | |
| Ave. output power (Enabled) | PAVE | -5 | 0 | dBm | 1 | |
| Extinction Ratio | ER | 8.5 | dB | 1 | ||
| Side mode Suppression Ratio | SMSR | 30 | dB | |||
| RMS spectral width | Δλ | 0.65 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 0.26 | ns | 2 | ||
| Dispersion penalty | TDP | 3.9 | dB | |||
| Output Optical Eye | Compliant with IEEE802.3 z (class 1 aser safety) | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1270 | 1610 | nm | ||
| Receiver Sensitivity | PSEN1 | -19 | dBm | 3 | ||
| Overload | PAVE | -3 | dBm | 3 | ||
| LOS Assert | Pa | -35 | dBm | |||
| LOS De-assert | Pd | -20 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
