| Place of Origin: | SZ China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | ISO9001,ISO14001,OHSAS18001 |
| Model Number: | OLSP5501L-CDH3 |
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | TT/Net 30days |
| Supply Ability: | 80-100k per month |
| PN: | OLSP5501L-CDH3 | Maximum Data Transfer Rate: | 1.25G |
|---|---|---|---|
| Compatible: | Ciena | Wavelength: | 1550nm |
| Low Power Consumption: | < 0.8W | Transmission Distance: | 120km |
| High Light: | 120km SFP Optical Transceivers,0.8W SFP Optical Transceivers,120km fiber optic transceiver |
||

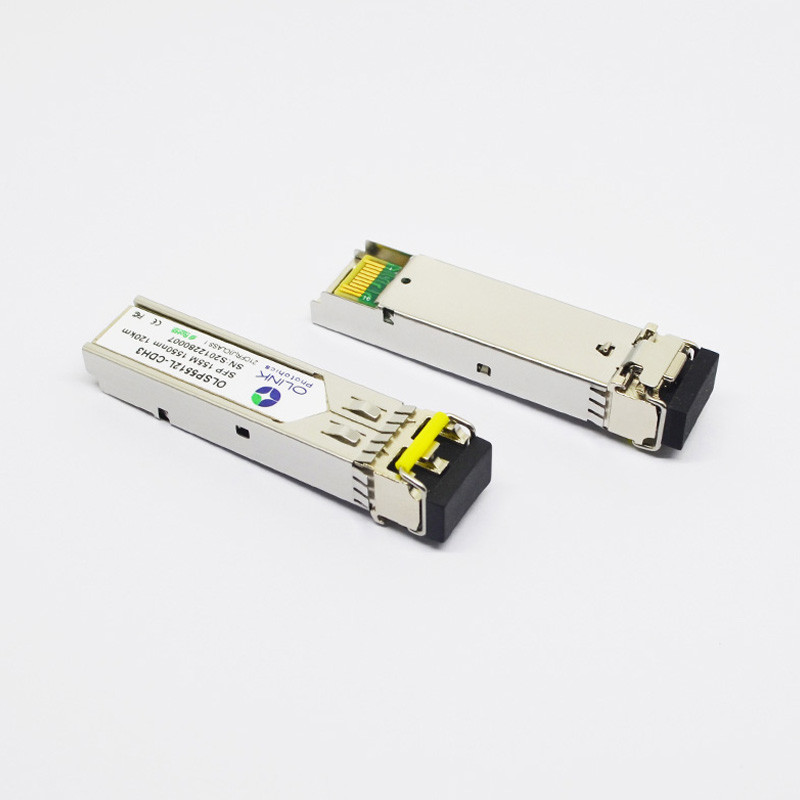

Single Mode LC 120km SFP Optical Transceivers 1.25G 1550nm Ciena Compatible
Ciena Compatible 1.25G 1550nm Single Mode LC 120km SFP Optical Transceivers
Product Features
● Supports 1.25Gbps/1.0625Gbps bit rates
● Duplex LC connector
● Hot pluggable SFP footprint
● 1550nm DFB laser transmitter and APD photo-detector
● Applicable for 120Km SMF connection
● Low power consumption, < 1.0W
● Digital Diagnostic Monitor Interface
● Compliant with SFP MSA and SFF-8472
● Very low EMI and excellent ESD protection
● Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 85 °C
Applications
● Gigabit Ethernet
● Fiber Channel
● Switch to Switch interface
● Switched backplane applications
● Router/Server interface
● Other optical transmission systems
Product Descriptions
Olinkphotonics’ OLSP5512L-C(I)DH1,SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 120km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1530 | 1550 | 1565 | nm | |
| Ave. output power (Enabled) | PAVE | 0 | 5 | dBm | 1 | |
| Extinction Ratio | ER | 9 | dB | 1 | ||
| Side mode Suppression Ratio | SMSR | 30 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 0.26 | ns | 2 | ||
| Output Optical Eye | Compliant with IEEE802.3 z (class 1 aser safety) | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1260 | 1610 | nm | ||
| Receiver Sensitivity | PSEN1 | -32 | dBm | 3 | ||
| Overload | PAVE | -7 | dBm | 3 | ||
| LOS Assert | Pa | -45 | dBm | |||
| LOS De-assert | Pd | -34 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
All Olincom SFP transceiver modules are backed by a lifetime warranty and free lifetime professional technical support. We offer a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
