| Place of Origin: | SZ China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | ISO9001,ISO14001,OHSAS18001 |
| Model Number: | OLSP8512L-CDS5 |
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | TT/Net 30days |
| Supply Ability: | 80-100k per month |
| Form Factor: | SFP | Data Rate: | 1.25G |
|---|---|---|---|
| Compatible: | Cisco | Wavelength: | 850nm |
| Transmission Distance: | 550m | Type: | Multi Mode Fiber |
| High Light: | Juniper SFP Optical Transceivers,ISO SFP Optical Transceivers,1.25G sfp multimode |
||

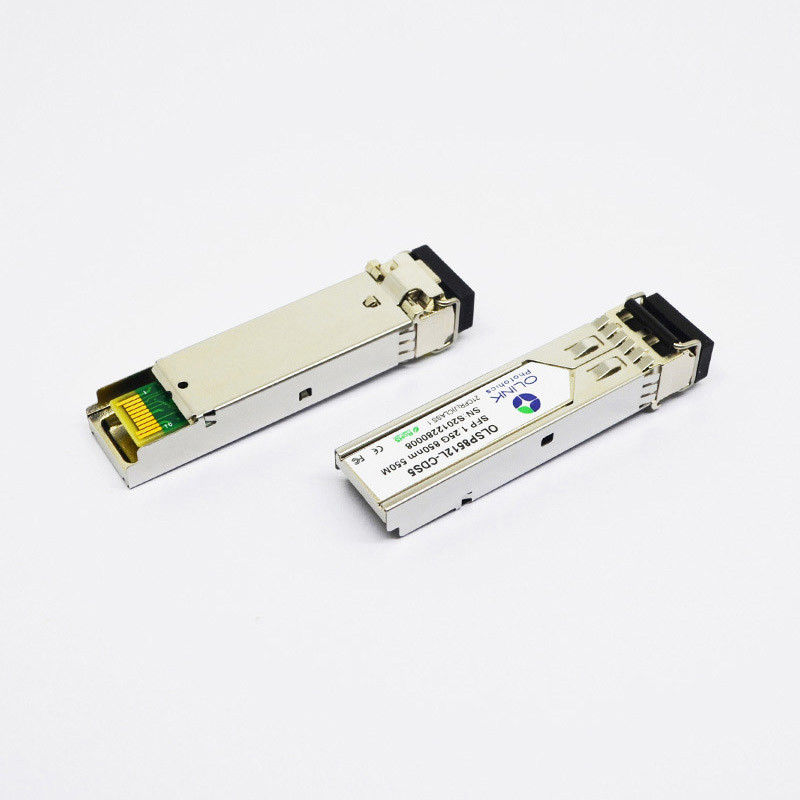

Juniper Compatible 1.25G SFP Optical Transceivers Multi Mode Fiber
Juniper Compatible 1.25G SFP Module MM Fiber Transceiver DOM
| Product Name: | SFP optical transceiver |
| Form Factor: | SFP |
| Data Rate: | 1.25G |
| Compatible: | Juniper |
| Mode Type: | Multimode |
| Connector Type: | LC |
| Brand: | Olinkcom |
| Certification: | ISO9001,ISO14001,OHSAS18001 |
| Place of origin: | SZ,China |
| DDM | Yes |
| Commerical Temperature: | 0℃-70℃ |
| Application: | Telecommunication |
| Low Temperature: | -40℃ |
| High Temperature: | 85℃ |
| Compatible brands | Cisco,Juniper,MikroTik,Arista,Extreme |
| Capacity supply: | 3-5 working days |
| Package: | 10 pcs/ pallet |
Product Features
● Supports 1.25Gbps/1.0625Gbps bit rates
● Duplex LC connector
● Hot pluggable SFP footprint
● 850nm VSCEL laser transmitter and PIN photo-detector
● Applicable for 550m on 50/125µm, 300m on 62.5/125µm MMF connection
● Low power consumption, < 0.8W
● Digital Diagnostic Monitor Interface
● Compliant with SFP MSA and SFF-8472
● Very low EMI and excellent ESD protection
● Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 85 °C
Product Descriptions
Olinkphotonics’ OLSP8512L-C(I)DS5, The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF. The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Ave. output power (Enabled) | PAVE | -10 | 0 | dBm | 1 | |
| Extinction Ratio | ER | 9 | dB | 1 | ||
| RMS spectral width | Δλ | 0.65 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 0.25 | ps | 2 | ||
| Output Optical Eye | Compliant with IEEE802.3 z &ITU G.957 Compliant (class 1 aser safety) | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Receiver Sensitivity | PSEN1 | -18 | dBm | 3 | ||
| Overload | PAVE | -3 | dBm | 3 | ||
| LOS Assert | Pa | -35 | dBm | |||
| LOS De-assert | Pd | -20 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
