| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHS FCC CE GS UL FDA etc |
| Model Number: | OLSP5512L-CDH2 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Individual package Or 10pcs/pallet Or 20pcs/pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-120k per month |
| Data Rate: | 1.25Gbps/1.0625Gbps | Form Factor: | SFP |
|---|---|---|---|
| Compatibility: | Cisco | Connector: | LC Duplex |
| Wavelength: | 1550nm | Distance: | 120km |
| DDM/DOM: | Supported | Fiber Type: | SMF |
| Temperature: | 0~70 °C | Warranty: | 3 Years |

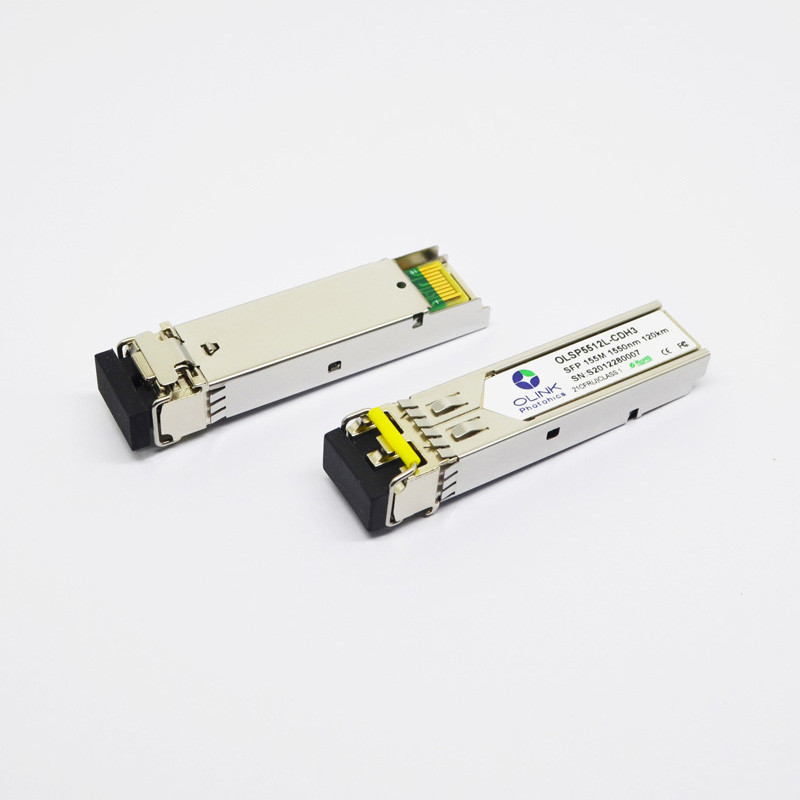

1000BASE-EZX SFP 1550nm 120km DOM LC SMF Fiber Optic SFP Module
Product Spotlights
* Supports 1.25Gbps/1.0625Gbps bit rates
* Duplex LC connector
* Hot pluggable SFP footprint
* 1550nm DFB laser transmitter and APD photo-detector
* Applicable for 120Km SMF connection
* Low power consumption, < 1.0W
* Digital Diagnostic Monitor Interface
* Compliant with SFP MSA and SFF-8472
* Very low EMI and excellent ESD protection
* Operating case temperature: Commerical:0 to 70 °C
Electrical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Differential data input swing | VIN,PP | 300 | 1800 | mVpp | 1 | |
| Tx Disable Input-High | VIH | 2.0 | Vcc+0.3 | V | ||
| Tx Disable Input-Low | VIL | 0 | 0.8 | V | ||
| Tx Fault Output-High | VOH | 2.0 | Vcc+0.3 | V | 2 | |
| Tx Fault Output-Low | VOL | 0 | 0.8 | V | 2 | |
| Input differential impedance | Rin | 100 | Ω | |||
| Receiver | ||||||
| Differential data output swing | Vout,pp | 400 | 1000 | mVpp | 3 | |
| Rx LOS Output-High | VROH | 2.0 | Vcc+0.3 | V | 2 | |
| Rx LOS Output-Low | VROL | 0 | 0.8 | V | 2 | |
Notes:
1. TD+/- are internally AC coupled with 100Ω differential termination inside the module.
2. Tx Fault and Rx LOS are open collector outputs, which should be pulled up with 4.7k to 10kΩ resistors on the host board. Pull up voltage between 2.0V and Vcc+0.3V.
3. RD+/- outputs are internally AC coupled, and should be terminated with 100Ω (differential) at the user SERDES.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1530 | 1550 | 1565 | nm | |
| Ave. output power (Enabled) | PAVE | 0 | 5 | dBm | 1 | |
| Extinction Ratio | ER | 9 | dB | 1 | ||
| Side mode Suppression Ratio | SMSR | 30 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 0.26 | ns | 2 | ||
| Output Optical Eye | Compliant with IEEE802.3 z (class 1 aser safety) | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1260 | 1610 | nm | ||
| Receiver Sensitivity | PSEN1 | -32 | dBm | 3 | ||
| Overload | PAVE | -7 | dBm | 3 | ||
| LOS Assert | Pa | -45 | dBm | |||
| LOS De-assert | Pd | -34 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured at 1.25Gb/s with PRBS 2 223 – 1NRZ test pattern.
2. Unfiltered, measured with a PRBS223 – 1 test pattern @1.25Gbps
3. Measured at 1.25Gb/s with PRBS 223 – 1 NRZ test pattern for BER < 1x10-12
Applications
● Gigabit Ethernet
● Fiber Channel
● Router/Server interface
● Other optical transmission systems
