| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHS FCC CE GS UL FDA etc |
| Model Number: | OLSP5512L-CDH1 |
| Minimum Order Quantity: | 1pc |
| Packaging Details: | Individual package Or 10pcs/pallet Or 20pcs/pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-120k per month |
| Compatibility: | Customized | Form Factor: | SFP |
|---|---|---|---|
| Data Rate: | 1.25Gbps/1.0625Gbps | Connector: | LC Duplex |
| Wavelength: | 1550nm | Distance: | 100km |
| Temperature: | 0~70 °C | DDM/DOM: | Supported |
| Fiber Type: | SMF | Warranty: | 3 Years |

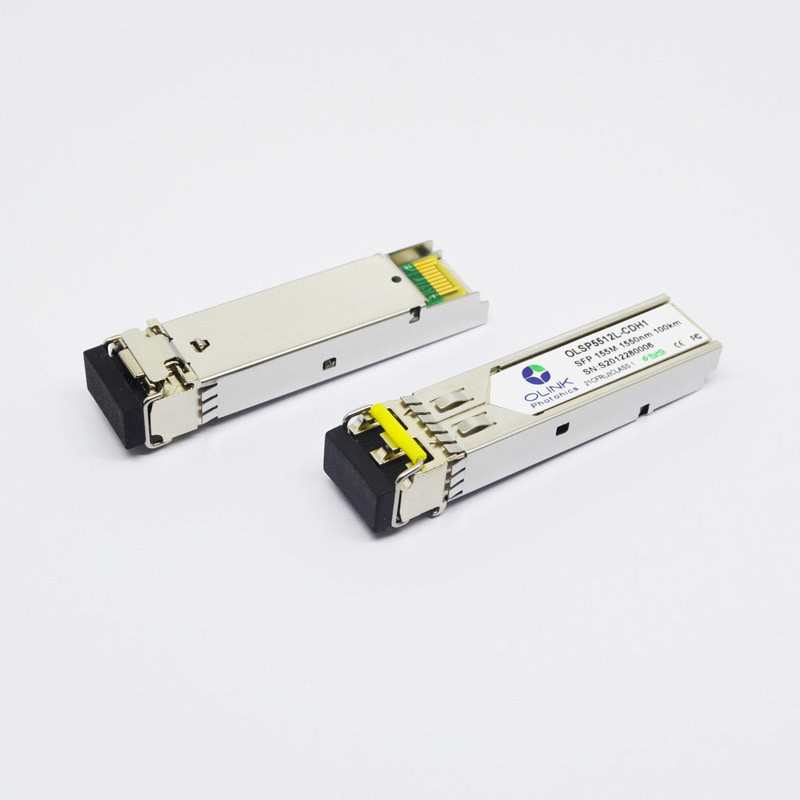

OEM SFP Transceiver Module Fiber Optic LC Connector 1000BASE-EZX 1550nm 100km DOM SMF
Product Descriptions
This SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 100km transmission distance with SMF. We as a manufacturer can provide compatibility with different brands, such as Cisco, Juniper, Arita, Dell, Brocade etc.
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 1.25 | Gb/s | |||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 300 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Electrical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Differential data input swing | VIN,PP | 300 | 1800 | mVpp | 1 | |
| Tx Disable Input-High | VIH | 2.0 | Vcc+0.3 | V | ||
| Tx Disable Input-Low | VIL | 0 | 0.8 | V | ||
| Tx Fault Output-High | VOH | 2.0 | Vcc+0.3 | V | 2 | |
| Tx Fault Output-Low | VOL | 0 | 0.8 | V | 2 | |
| Input differential impedance | Rin | 100 | Ω | |||
| Receiver | ||||||
| Differential data output swing | Vout,pp | 400 | 1000 | mVpp | 3 | |
| Rx LOS Output-High | VROH | 2.0 | Vcc+0.3 | V | 2 | |
| Rx LOS Output-Low | VROL | 0 | 0.8 | V | 2 | |
Notes:
1. TD+/- are internally AC coupled with 100Ω differential termination inside the module.
2. Tx Fault and Rx LOS are open collector outputs, which should be pulled up with 4.7k to 10kΩ resistors on the host board. Pull up voltage between 2.0V and Vcc+0.3V.
3. RD+/- outputs are internally AC coupled, and should be terminated with 100Ω (differential) at the user SERDES.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1530 | 1550 | 1565 | nm | |
| Ave. output power (Enabled) | PAVE | 0 | 5 | dBm | 1 | |
| Extinction Ratio | ER | 9 | dB | 1 | ||
| Side mode Suppression Ratio | SMSR | 30 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 0.26 | ns | 2 | ||
| Dispersion penalty | TDP | 3.2 | dB | |||
| Output Optical Eye | Compliant with IEEE802.3 z (class 1 aser safety) | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1260 | 1610 | nm | ||
| Receiver Sensitivity | PSEN1 | -28 | dBm | 3 | ||
| Overload | PAVE | 0 | dBm | 3 | ||
| LOS Assert | Pa | -45 | dBm | |||
| LOS De-assert | Pd | -30 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured at 1.25Gb/s with PRBS 2 223 – 1NRZ test pattern.
2. Unfiltered, measured with a PRBS223 – 1 test pattern @1.25Gbps
3. Measured at 1.25Gb/s with PRBS 223 – 1 NRZ test pattern for BER < 1x10-12
Product Features
● Supports 1.25Gbps/1.0625Gbps bit rates
● LC connector
● Hot pluggable
● 1550nm DFB laser transmitter and PIN photo-detector
● Supports 100Km SMF connection
● Low power consumption, < 1.0W
● Compliant with SFP MSA and SFF-8472
● Digital Diagnostic Monitor Interface
● Very low EMI and excellent ESD protection
● Operating case temperature: Commerical: 0 to 70 °C
Applications
● Gigabit Ethernet, Fiber Channel
● Switch to Switch interface, Switched backplane applications
● Router/Server interface
● Other optical transmission systems
