| Data Rate: | 1.25Gbps/1.0625Gbps | Form Factor: | SFP |
|---|---|---|---|
| Connector: | LC Duplex | Compatibility: | OEM |
| Wavelength: | 1550nm | Distance: | 40km |
| Fiber Type: | SMF | DDM/DOM: | Supported |

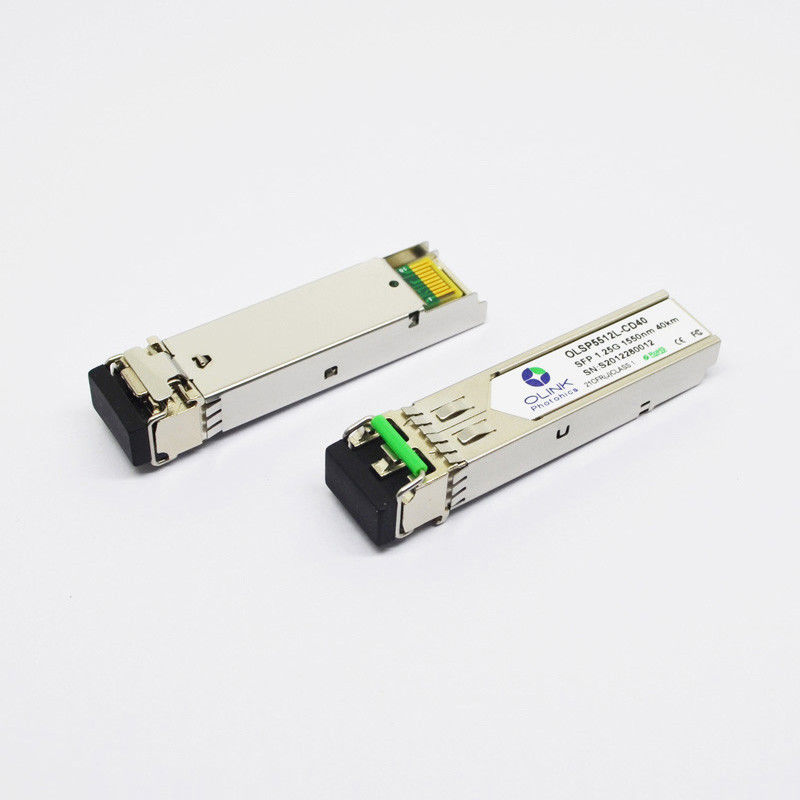

SFP Fiber Transceiver OEM 1000BASE-EX SFP 1550nm 40km DOM LC SMF Module
Product Descriptions
The Olinkcom's OLSP5512L-CD40 supports customized, we as a professional manufacturer often major brands compatible, like Arista, Brocade, Cisco, Dell, Extreme, Huaiwei etc. And this module applies to dual data-rate of 1.25Gbps/1.0625Gbps and 40km transmission distance with SMF. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 1.25 | Gb/s | |||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 250 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1530 | 1550 | 1570 | nm | |
| Ave. output power (Enabled) | PAVE | -5 | 0 | dBm | 1 | |
| Extinction Ratio | ER | 9 | dB | 1 | ||
| Side mode Suppression Ratio | SMSR | 30 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 0.26 | ns | 2 | ||
| Dispersion penalty | TDP | 3.2 | dB | |||
| Output Optical Eye | Compliant with IEEE802.3 z (class 1 aser safety) | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1550 | nm | |||
| Receiver Sensitivity | PSEN1 | -22 | dBm | 3 | ||
| Overload | PAVE | 0 | dBm | 3 | ||
| LOS Assert | Pa | -35 | dBm | |||
| LOS De-assert | Pd | -24 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured at 1250Mb/s with PRBS 2 223 – 1NRZ test pattern.
2. Unfiltered, measured with a PRBS223 – 1 test pattern @1.25Gbps
3. Measured at 1250Mb/s with PRBS 223 – 1 NRZ test pattern for BER < 1x10-12
Product Features
● 1.25Gbps/1.0625Gbps bit rates
● LC connector
● Hot pluggable SFP footprint
● 1550nm DFB laser transmitter and PIN photo-detector
● Applicable for 40Km SMF connection
● Very low EMI and excellent ESD protection
● Operating case temperature: Commerical:0 to 70 °C
Applications
● Fiber Channel
● Switch to Switch interface
● Router/Server interface
● Other optical transmission systems
