| Part Number: | OLSP3112L-CD20 | Compatibility: | Customized |
|---|---|---|---|
| Form Factor: | SFP | Data Rate: | 1.25Gbps/1.0625Gbps |
| Connector: | LC Duplex | Wavelength: | 1310nm |
| Distance: | 20km | DDM/DOM: | Supported |
| Fiber Type: | SMF | Temperature: | 0~70 °C |

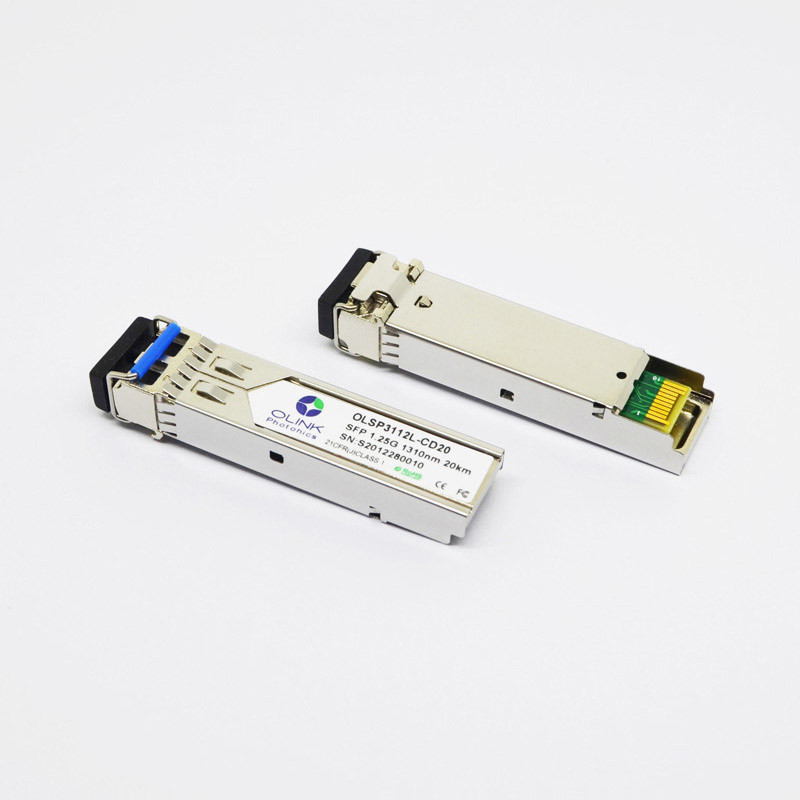

Customized SFP Transcceiver 1000BASE-LX/LH SFP 1310nm 20km DOM LC SMF Optical Module
Product Descriptions
1000BASE-LX/LH SFP 1310nm 20km DOM LC SMF Transceiver Optical modules are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1290 | 1310 | 1330 | nm | |
| Ave. output power (Enabled) | PAVE | -8 | -4 | dBm | 1 | |
| Extinction Ratio | ER | 9 | dB | 1 | ||
| RMS spectral width | Δλ | 0.65 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 0.26 | ns | 2 | ||
| Dispersion penalty | TDP | 3.9 | dB | |||
| Output Optical Eye | Compliant with IEEE802.3 z (class 1 aser safety) | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1310 | nm | |||
| Receiver Sensitivity | PSEN1 | -22 | dBm | 3 | ||
| Overload | PAVE | -3 | dBm | 3 | ||
| LOS Assert | Pa | -35 | dBm | |||
| LOS De-assert | Pd | -24 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured at 1250Mb/s with PRBS 2 223 – 1NRZ test pattern.
2. Unfiltered, measured with a PRBS223 – 1 test pattern @1.25Gbps
3. Measured at 1250Mb/s with PRBS 223 – 1 NRZ test pattern for BER < 1x10-12
Digital Diagnostic Specifications
The OLSP3112L-C(I)D20 transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.
| Parameter | Symbol | Units | Min. | Max. | Accuracy | Note |
| Transceiver temperature | DTemp-E | ºC | -45 | +90 | ±5ºC | 1 |
| Transceiver supply voltage | DVoltage | V | 2.8 | 4.0 | ±3% | |
| Transmitter bias current | DBias | mA | 2 | 15 | ±10% | 2 |
| Transmitter output power | DTx-Power | dBm | -9 | -3 | ±3dB | |
| Receiver average input power | DRx-Power | dBm | -25 | 0 | ±3dB |
Notes:
1. When Operating temp.=0~70 ºC,the range will be min=-5,Max=+75
2. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser
3. Internal/ External Calibration compatible.
Product Features
● Supports 1.25Gbps/1.0625Gbps bit rates
● Duplex LC connector
● Hot pluggable SFP footprint
● 1310nm FP laser transmitter and PIN photo-detector
● Applicable for 20Km SMF connection
● Low power consumption, < 0.8W
● Digital Diagnostic Monitor Interface
● Compliant with SFP MSA and SFF-8472
● Very low EMI and excellent ESD protection
● Operating case temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C
Applications
● Gigabit Ethernet
● Fiber Channel
● Switch to Switch interface
● Switched backplane applications
● Router/Server interface
● Other optical transmission systems
