| Part Number: | OLSP3112L-CD10 | Compatibility: | Dell |
|---|---|---|---|
| Data Rate: | 1.25Gbps/1.0625Gbps | Form Factor: | SFP |
| Connector: | LC Duplex | Wavelength: | 1310nm |
| Distance: | 10km | DDM/DOM: | Supported |
| Fiber Type: | SMF | TX Power: | -9.5 ~ -3dBm |
| High Light: | 10km SFP Optical Transceivers,FDA SFP Optical Transceivers,10km ethernet transceiver |
||

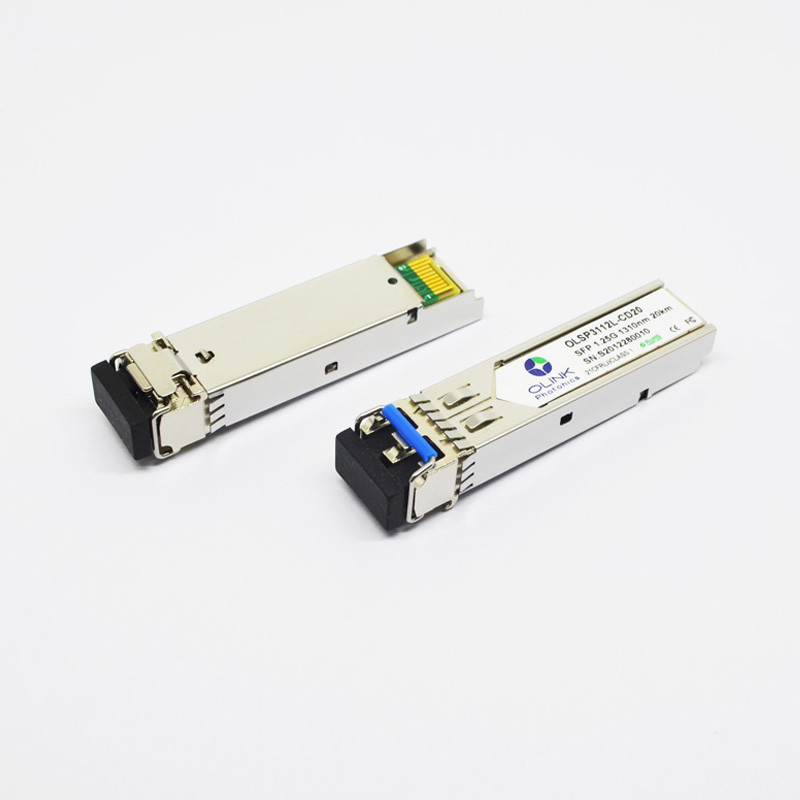

1000BASE LX SFP Optical Transceivers 1310nm 10km Dell Compatible For Fiber Channel
SFP Optical Transceiver 1000BASE LX Dell Compatible SFP 1310nm 10km LC Module
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1290 | 1310 | 1330 | nm | |
| Ave. output power (Enabled) | PAVE | -9 | -3 | dBm | 1 | |
| Extinction Ratio | ER | 9 | dB | 1 | ||
| RMS spectral width | Δλ | 0.65 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 0.26 | ns | 2 | ||
| Dispersion penalty | TDP | 3.9 | dB | |||
| Output Optical Eye | Compliant with IEEE802.3 z (class 1 aser safety) | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1310 | nm | |||
| Receiver Sensitivity | PSEN1 | -22 | dBm | 3 | ||
| Overload | PAVE | 0 | dBm | 3 | ||
| LOS Assert | Pa | -35 | dBm | |||
| LOS De-assert | Pd | -24 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured at 1.25Gb/s with PRBS 2 223 – 1NRZ test pattern.
2. Unfiltered, measured with a PRBS223 – 1 test pattern @1.25Gbps
3. Measured at 1.25Gb/s with PRBS 223 – 1 NRZ test pattern for BER < 1x10-12
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 1.25 | Gb/s | |||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 220 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Product Descriptions
This product SFP Optical Transceiver 1000BASE LX Dell Compatible SFP 1310nm 10km LC Module is designed for supporting dual data-rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Applications
● Gigabit Ethernet
● Fiber Channel
● Switched backplane applications
● Router/Server interface and other optical transmission systems
