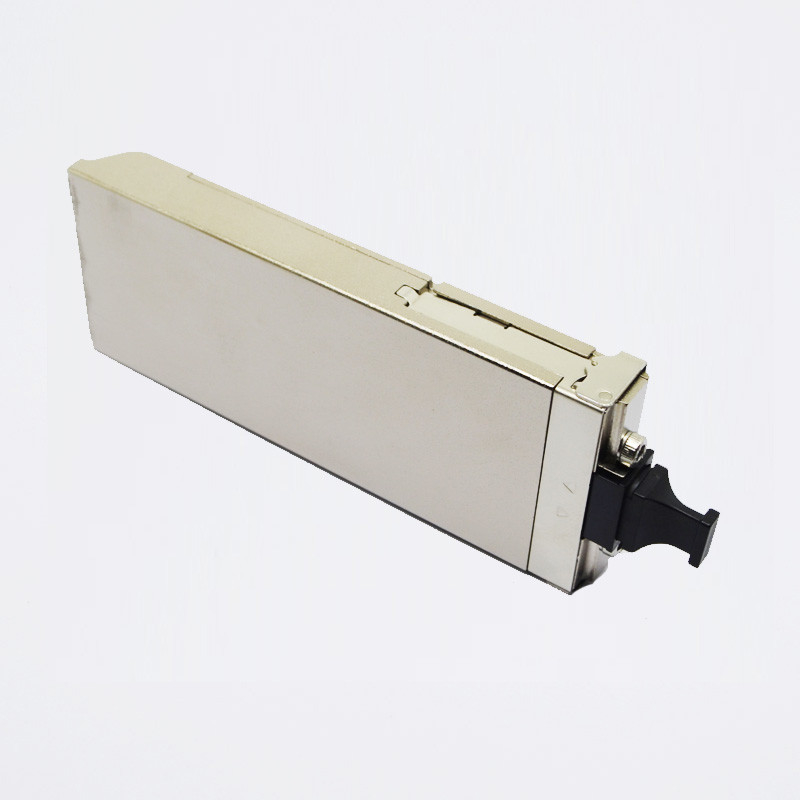

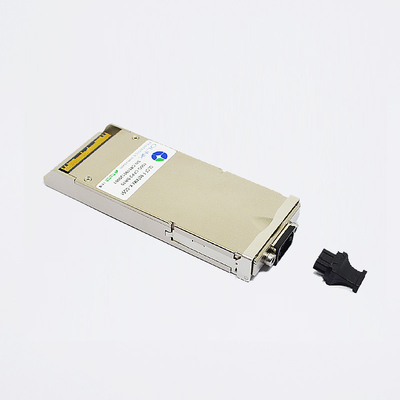

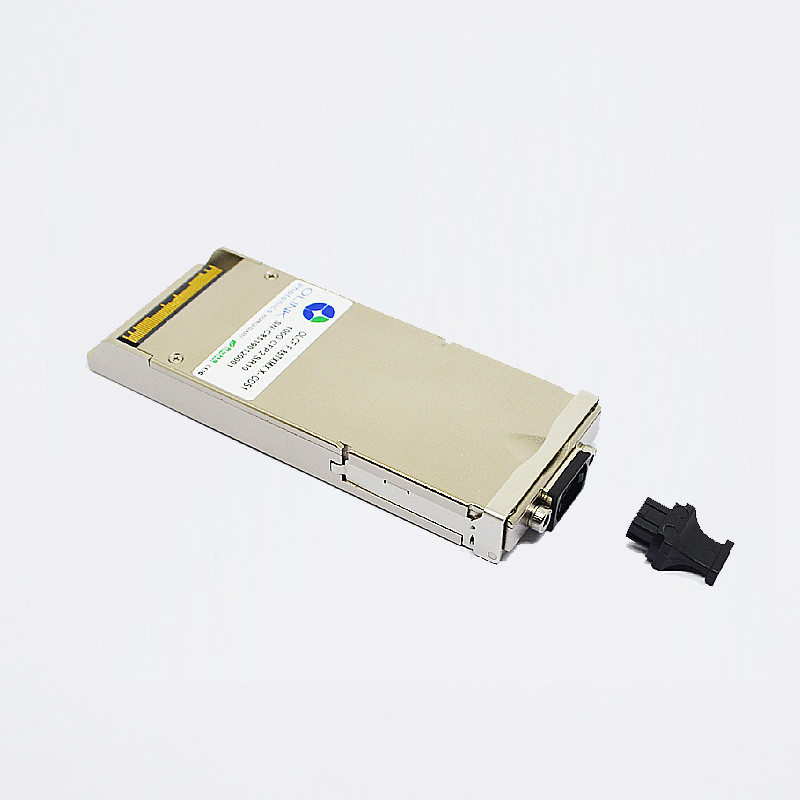

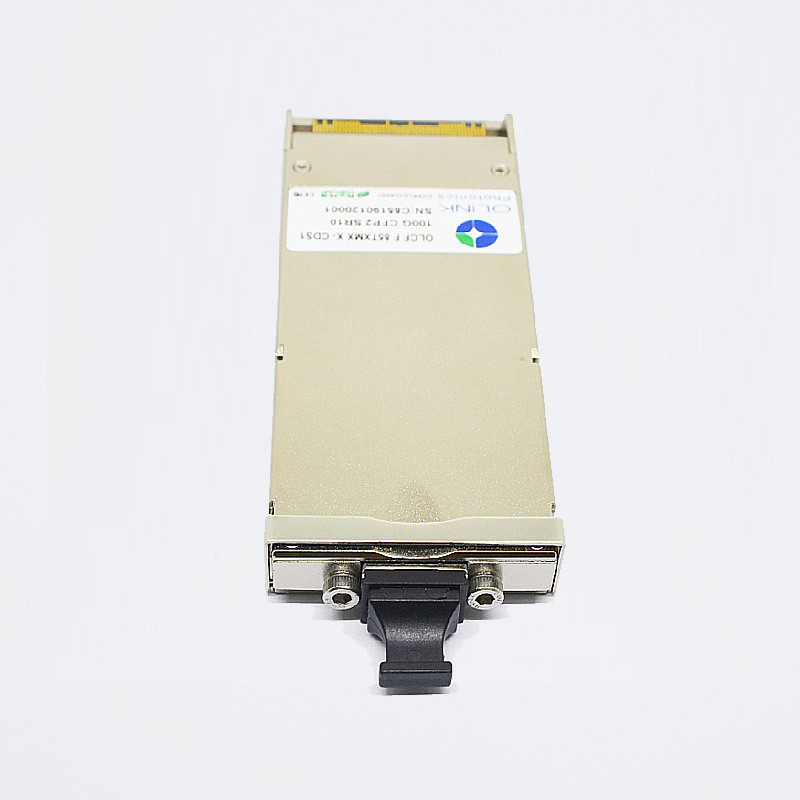

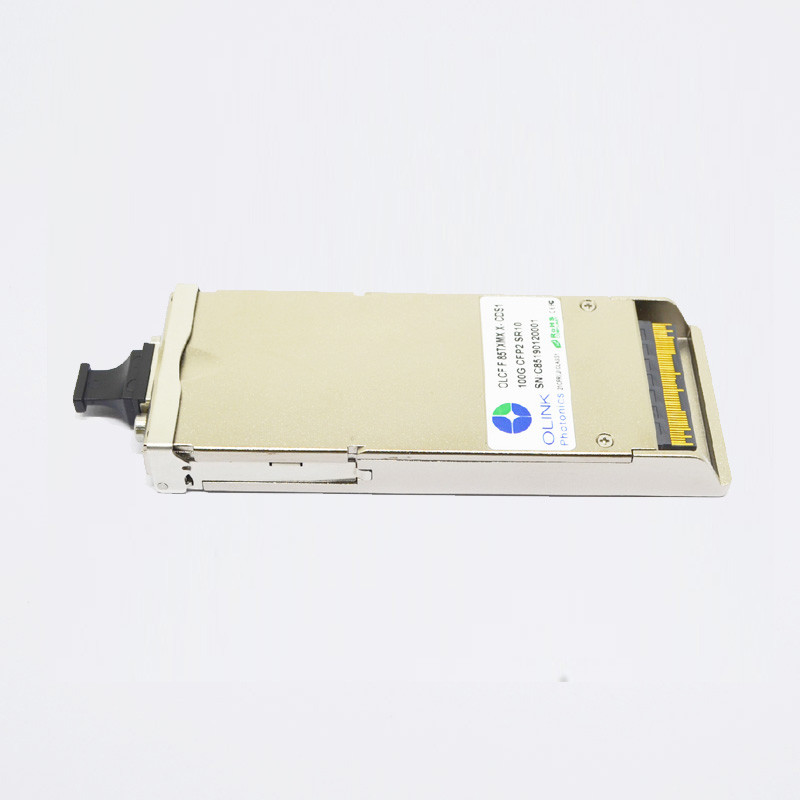

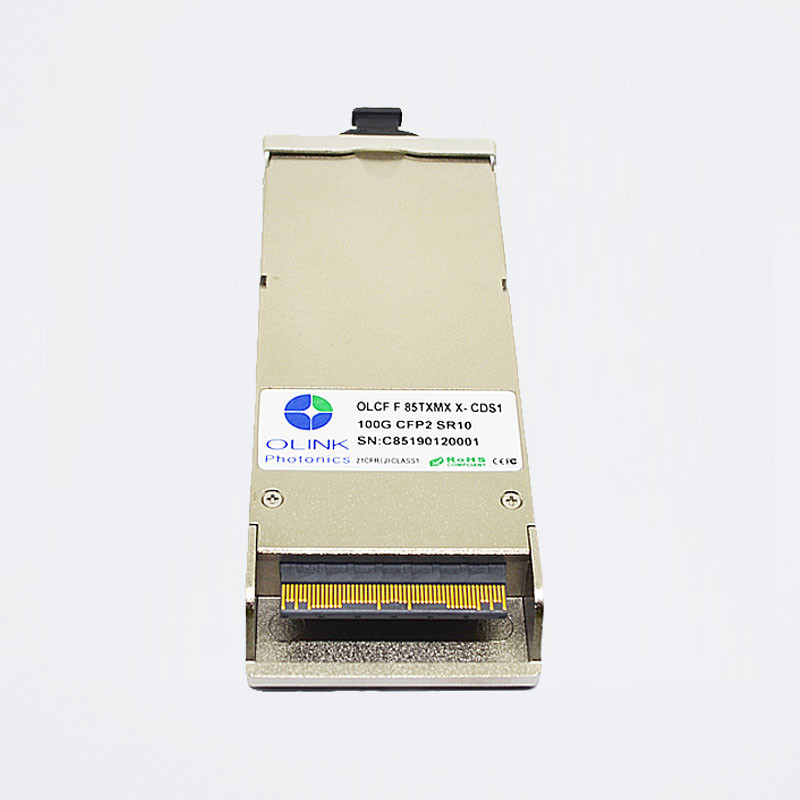

100GBASE-SR10 CFP2 850nm 100m Optical Transceiver Module With DOM Function

Basic Information
Place of Origin: SZ China
Brand Name: OLKOPTO
Certification: ISO9001,ISO14001,OHSAS18001
Model Number: OLCF85TXMX-CDS1
Minimum Order Quantity: 1pcs
Packaging Details: Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet
Delivery Time: 3-5 working days
Payment Terms: TT/Net 30days
Supply Ability: 80-100k per month
Part Number: OLCF85TXMX-CDS1 Data Rate: 100G
Compitible Brand: Generic,Cisco,Juniper,MikroTik,D-Link,Ciena, Extreme Form Factor: CFP2
Connector: LC Power Consumption: < 4W
High Light:

100GBASE-SR10 Optical Transceiver Module

,

100m Optical Transceiver Module

,

CFP2 Optical Transceiver With DOM Function

Optical transceive modules 100Gb/s CFP2 SR10 850nm 100m brocade compatible DOM



RoHS Compliant 100Gb/s CFP2 SR10 850nm 100m Optical Transceiver





Product Features

● Supports 103.1Gb/s to 112Gb/s bit rates

● MPO 24 receptacle optical interface

● CPPI electrical interface

● Uncooled 10x10Gb/s 850nm transmitter

● 10 parallel electrical serial interface

● Applicable for 100m with OM3 MMF and 150m with OM4 MMF

● Low power consumption <4W

● Digital Diagnostic Monitor Interfacel ●MDIO Communication Interface

● Compliant with 100GBASE-SR10

● Operating case temperature:

Commerical:0 to 70 °C

Applications

● 100GBASE-SR10 Ethernet

● 10x11.2Gb/s Multimode OTN

● 10x 10GE-SRLite Ethernet



Standards

● Compliant with IEEE 802.3ba

● Compliant with CFP2 MSA hardware specifications

● Compliant with CFP2 MSA management specifications



Functional Description

Olinkcom’s OLCF85TXMX-CDS1, the 100GE SR10 CFP2 (ALT1) transceiver modules are designed for use in 100 Gigabit Ethernet links and 10x11.2G OTN client interfaces over multimode fiber. They are compliant with the CFP2 MSA and with IEEE 802.3ba 100GBASE-SR10. Digital diagnostics functions are available via the MDIO interface.



Optical Characteristics (TOP = 0 to 70 °C, VCC = 3.13 to 3.47 V)

Parameter Symbol Min. Typ Max. Unit Note
Transmitter (per Lane)
Data Rate Per Lane DRPL   10.3125 11.1810 Gb/s 1
Center wavelength λ 840 850 860 nm
RMS Spectral Width Δλ     0.65 nm
Average Power per Lane PAVEp -8   1 dBm
Transmit OMA per Lane POMA -6   3.0 dBm 2
Average launch Power of OFF DP     -30 dB
Peak Power per Lane PP     4.0 dBm
TDP per Lane TDP     4 dBm
Extinction Ratio ER 3.0     dB
Return Loss Tolerance       12 dB
Relative Intensity Noise RIN     -128 dB/Hz 3
Transmitter eye mask definition {X1, X2, X3, Y1, Y2, Y3}   0.23, 0.34, 0.43, 0.27, 0.35, 0.4
Receiver (per Lane)
Center wavelength λ 840 850 860 nm
Receiver Sensitivity per Lane PSEN1     -9.9 dBm 4
Receiver Sensitivity (OMA) per Lane PSEN2     -5.4 dBm

Peak Power, per lane



PPx     4 dBm
Overload,perlane PAVE 1     dBm

Receiver Reflectance



Rrx     -12 dB

Dispersion penalty , per lane



TDP     1.9 dB

Stressed eye J2 jitter, per Lane



JE2P   0.35   UI

Stressed eye J9 jitter, per Lane



JE9P   0.47   UI

Jitter tolerance [OMA], per lane



JTP   -5.4   dBm

LOS De-Assert



Pa -11     dBm

LOS Assert



Pd     -25 dBm

LOS Hysteresis



Pd-Pa 0.5     dB

Notes:

1.  Transmitter consists of 10 lasers operating at a maximum rate of 11.1810 Gb/s each.

2.  Even if TDP is <0.9dB, the OMA min must exceed this value.

3.  RIN is scaled by 10*log (10/4) to maintain SNR outside of transmitter.

4.  Measured using DUT Tx and DUT Rx; no golden transmitters shall be used.



More details of our products:

High Reliable Optical Components and Excellent Design

1. DLB laser and PIN photodiode

2. Thick Gold Finger



3. Plating Hard Gold Shell



Cost-effective and Reliable Transmission



Comprehensive Performance Test with our Advanced Equipment
  • Certified and tested on the automatic quality control system, to ensure the high performance in the actual working environment.Fully Tested for compatibility in our matched switches.

Our Packing & Labeling:

  • Anti-static box
  • Individual package
  • 10pcs/pallet
  • 20pcs/pallet



Our all modules have 3 years warranty!
