| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSBxx1XL-CD60 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10GBASE SFP+ BIDI TX1270/RX1330nm 60km | Speed: | 10GBASE |
|---|---|---|---|
| Wavelength: | TX1270/RX1330nm | Reach: | 60km |
| Compatibility: | OEM | Fiber: | SMF |
| Optical Components: | DFB/APD | DOM: | DOM |
| Connector: | LC Simplex | Weight: | 0.024kg |
| High Light: | Generic SMF SFP+ Fiber Transceiver,10GBASE-BX SFP+ Fiber Transceiver,1330nmTX SFP+ Optical Transceiver |
||

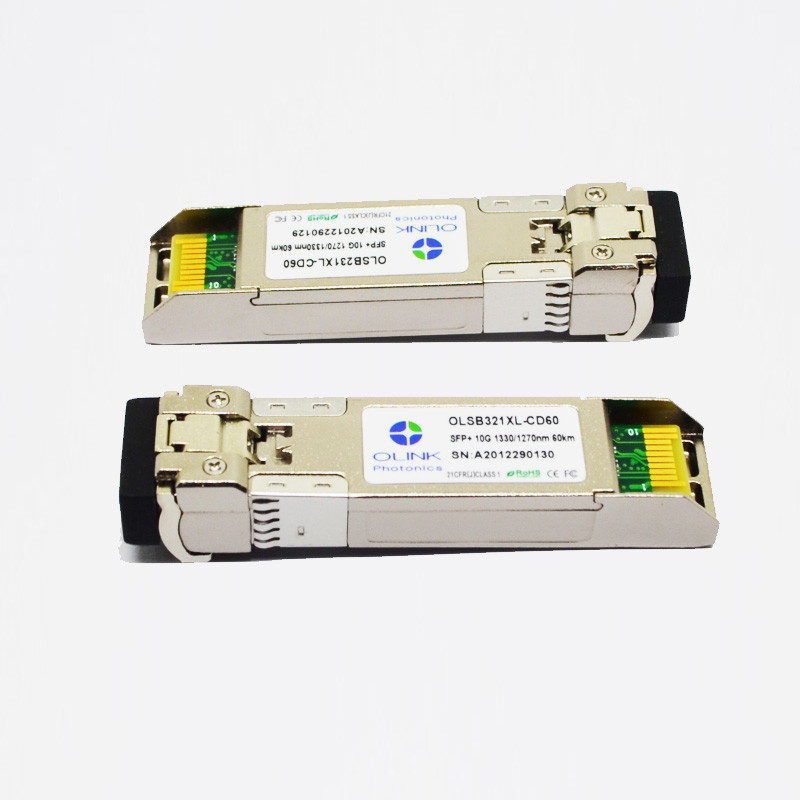

Generic 10GBase-BX SFP+ Transceiver (SMF, 1330nmTx/1270nmRx, 60km, LC, DOM)
Generic 10G SFP+ BIDI TX1270/RX1330nm 60km
1. Up to 11.3Gbps Data Links
2. Up to 60km transmission on SMF
3. Power dissipation<1.0W
4. 2-wire interface with integrated Digital Diagnostic monitoring
5. EEPROM with Serial ID Functionality
6. Compliant with SFP+ MSA with LC connector
7. Single + 3.3V Power Supply
8. Case operating temperature: Commercial: 0°C to +70°C
Optical Characteristics (TOP(C) = 0 to 70 ℃, VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note | ||
| Transmitter | ||||||||
| Operating Wavelength | λ | 1250 | 1270 | 1290 | nm | |||
| 1310 | 1330 | 1350 | ||||||
| Ave. output power (Enabled) | PAVE | 1 | 6 | dBm | 1 | |||
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||||
| Extinction Ratio | ER | 5 | 6 | dB | ||||
| RMS spectral width | Δλ | 1 | nm | |||||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||||
| Dispersion penalty | TDP | 3.2 | dB | |||||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||||
| Receiver | ||||||||
| Operating Wavelength | λ | 1330 | nm | |||||
| 1270 | ||||||||
| Receiver Sensitivity | PSEN1 | -21 | dBm | 2 | ||||
| Overload | PAVE | -7 | dBm | |||||
| LOS Assert | Pa | -40 | dBm | |||||
| LOS De-assert | Pd | -25 | dBm | |||||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||||
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER=6; BER<10-12; 231 – 1 PRBS.
Digital Diagnostic Specifications
The OLSBxx1XL-CD60 transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.
| Parameter | Symbol | Units | Min. | Max. | Accuracy | Note |
| Transceiver supply voltage | DVoltage | V | 2.8 | 4.0 | ±3% | |
| Transmitter bias current | DBias | mA | 0 | 127 | ±10% | 3 |
| Transmitter output power | DTx-Power | dBm | -1 | +7 | ±2dB | |
| Receiver average input power | DRx-Power | dBm | -30 | -7 | ±2dB |
Notes:
1. When Operating temp.=0~70 ºC,the range will be min=-5,Max=+75
2. Internally measured
3. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser
