| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSBxx1XL-C(I)D40 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ BIDI TX1270/RX1330nm 40km | Speed: | OC-192 |
|---|---|---|---|
| Wavelength: | TX1270/RX1330nm | Reach: | 10km |
| Compatibility: | OEM | Fiber: | SMF |
| Optical Components: | DFB/PIN | DOM: | DOM |
| Connector: | LC Simplex | Weight: | 0.024kg |
| High Light: | SMF Bidirectional Optical Transceiver,10G SFP+ Bidirectional Optical Transceiver,TX1270nm 10G SFP+ Optical Transceiver |
||

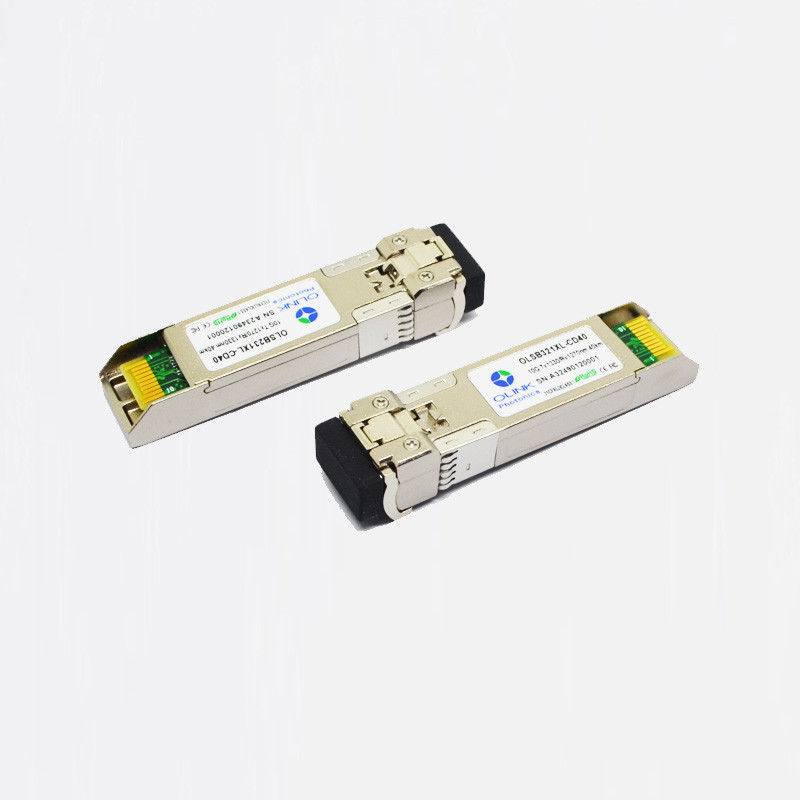

SFP+, 10Gbps, Bi-Directional, 10GBase-BX, SMF, Tx1270/Rx1330nm, 40KM
Generic 10G SFP+ BIDI TX1270/RX1330nm 40km
• SFF-8432 and SFF-8472 Compliance
• Uncooled DFB transmitter and PIN receiver
• Simplex LC Connector
• Single-mode Fiber
• Hot Pluggable
• Excellent ESD Protection
• Metal with Lower EMI
• RoHS Compliant and Lead Free
Applications
• 10GBase-BX Ethernet
• 8x/10x Fibre Channel
• Access, Metro and Enterprise
Electrical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Differential data input swing | VIN,PP | 180 | 700 | mVpp | 1 | |
| Transmit Disable Voltage | VD | VCC-0.8 | Vcc | V | ||
| Transmit Enable Voltage | VEN | Vee | Vee+0.8 | |||
| Input differential impedance | Rin | 100 | Ω | |||
| Receiver | ||||||
| Differential data output swing | Vout,pp | 300 | 850 | mVpp | 2 | |
| Output rise time and fall time | Tr, Tf | 28 | Ps | 3 | ||
| LOS asserted | VLOS_F | VCC-0.8 | Vcc | V | 4 | |
| LOS de-asserted | VLOS_N | Vee | Vee+0.8 | V | 4 | |
Notes:
1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
2. Into 100Ω differential termination.
3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an acceptable alternative.
4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1250 | 1270 | 1290 | nm | |
| 1310 | 1330 | 1350 | ||||
| Ave. output power (Enabled) | PAVE | 0 | 6 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 5 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||
| Dispersion penalty | TDP | 3.2 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1330 | nm | |||
| 1270 | ||||||
| Receiver Sensitivity | PSEN2 | -15 | dBm | 2 | ||
| Average Receive Power | PAVE | 0.5 | dBm | |||
| Receiver Reflectance | Rrx | -12 | dB | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -18 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER=6; BER<10-12; 231 – 1 PRBS.
