| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSBxx1XL-C(I)D10 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ BIDI TX1270/RX1330nm 10km | Data Rate: | 10Gb/s |
|---|---|---|---|
| Wavelength: | TX1270/RX1330nm | Distance: | 10km |
| Compatibility: | OEM | Fiber Type: | SMF |
| Optical Components: | DFB/PIN | DOM: | DOM |
| Connector: | LC Simplex | Weight: | 0.024kg |
| Highlight: | 1330nmRX 10G SFP+ Optical Transceiver,1270nmTX 10G SFP+ Optical Transceiver,10km BiDi WDM Transceiver |
||
SFP+, BiDi WDM, 1270nm TX/1330nm RX, LR SMF 10km, 10G, DOM, C-Temp/I-Temp

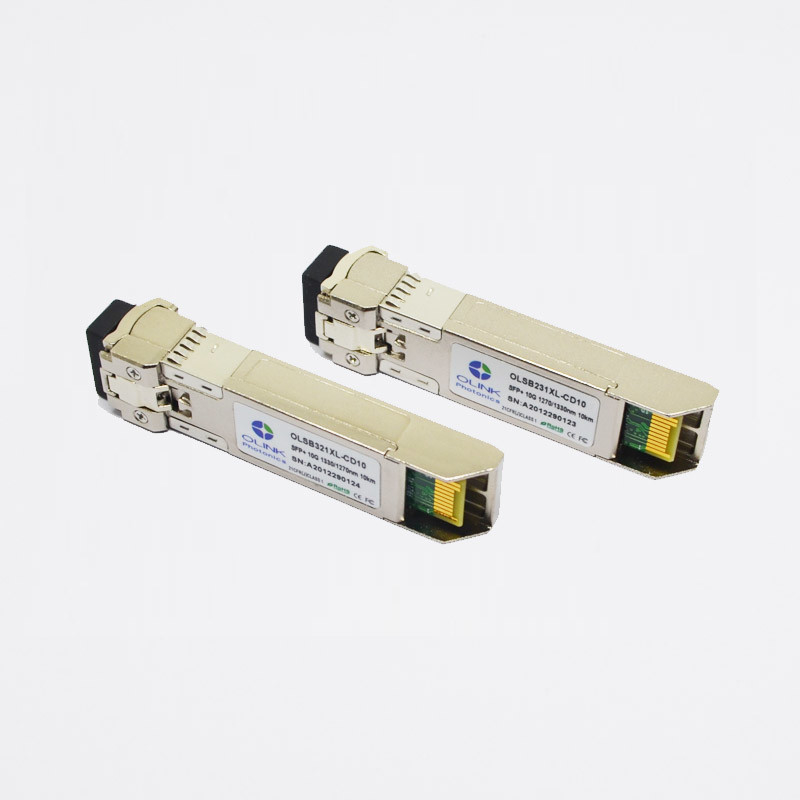

Generic 10G SFP+ BIDI TX1270/RX1330nm 10km
• Electrical interface compliant to SFF-8431
• Compliant with SFF-8472
• 1 0Gb/s serial optical interface compliant to 802.3ae
• Distance up to 10km on single mode fiber
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Metal enclosure, for lower EMI
• ROHS compliant and lead-free
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 9.95 | 10.3125 | 11.3 | Gb/s | |
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 400 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
|
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1250 | 1270 | 1290 | nm | |
| 1310 | 1330 | 1350 | ||||
| Ave. output power (Enabled) | PAVE | -6 | 0 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 4 | 4.5 | dB | ||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||
| Dispersion penalty | TDP | 3.2 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1330 | nm | |||
| 1270 | ||||||
| Receiver Sensitivity(ER=4.5) | PSEN1 | -12.6 | dBm | 2 | ||
| Receiver Sensitivity(ER=6) | PSEN2 | -14.4 | dBm | 2 | ||
| Average Receive Power | PAVE | 0.5 | dBm | |||
| Receiver Reflectance | Rrx | -12 | dB | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -17 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER; BER<10-12; 231 – 1 PRBS.
This module is programmed to works with a wide range of equipment such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and Media Converters
