| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHs, FCC, CE, UL, ISO9001, ISO14001 |
| Model Number: | OLCF85TXMX-CDS1 |
| Minimum Order Quantity: | 1 pc |
| Packaging Details: | Individual package |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 2K per month |
| Compatible Brand: | Brocade | Vendor Name: | Olinkcom |
|---|---|---|---|
| Form Factor: | CFP2 | Data Rate: | 100Gbps |
| Wavelength: | 850nm | Distance: | 100M |
| Connector: | MPO | Temperature: | 0~70℃ |
| DOM: | Supported | Warranty: | 3 Years |
| High Light: | 100G Optical Transceiver,100M 100G Optical Transceiver,100M CFP2 100G |
||

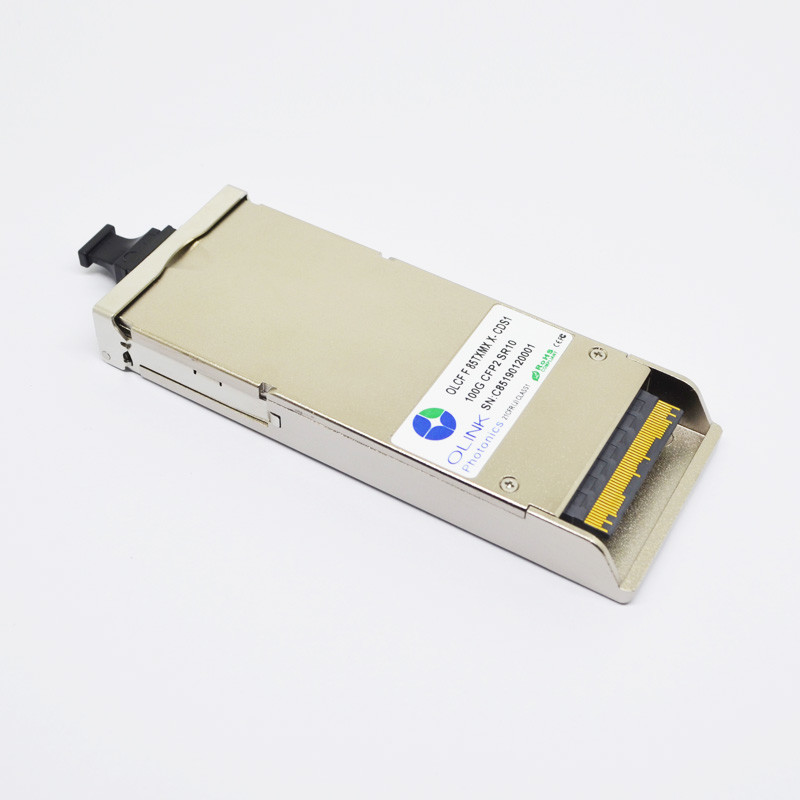

Brocade Compatible CFP2 100G Optical Transceiver 100M DOM MPO
Brocade Compatible CFP2-100G-SR10 100GBASE-SR10 850nm 100M DOM MPO MMF Transceiver Module
Functional Description
Olinkcom’ OLCF85TXMX-CDS1, the 100GE SR10 CFP2 (ALT1) transceiver modules are designed for use in 100 Gigabit Ethernet links and 10x11.2G OTN client interfaces over multimode fiber. They are compliant with the CFP2 MSA and with IEEE 802.3ba 100GBASE-SR10. Digital diagnostics functions are available via the MDIO interface.
Optical Characteristics (TOP = 0 to 70 °C, VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter (per Lane) | ||||||
| Data Rate Per Lane | DRPL | 10.3125 | 11.1810 | Gb/s | 1 | |
| Center wavelength | λ | 840 | 850 | 860 | nm | |
| RMS Spectral Width | Δλ | 0.65 | nm | |||
| Average Power per Lane | PAVEp | -8 | 1 | dBm | ||
| Transmit OMA per Lane | POMA | -6 | 3.0 | dBm | 2 | |
| Average launch Power of OFF | DP | -30 | dB | |||
| Peak Power per Lane | PP | 4.0 | dBm | |||
| TDP per Lane | TDP | 4 | dBm | |||
| Extinction Ratio | ER | 3.0 | dB | |||
| Return Loss Tolerance | 12 | dB | ||||
| Relative Intensity Noise | RIN | -128 | dB/Hz | 3 | ||
| Transmitter eye mask definition {X1, X2, X3, Y1, Y2, Y3} | 0.23, 0.34, 0.43, 0.27, 0.35, 0.4 | |||||
| Receiver (per Lane) | ||||||
| Center wavelength | λ | 840 | 850 | 860 | nm | |
| Receiver Sensitivity per Lane | PSEN1 | -9.9 | dBm | 4 | ||
| Receiver Sensitivity (OMA) per Lane | PSEN2 | -5.4 | dBm | |||
|
Peak Power, per lane
|
PPx | 4 | dBm | |||
| Overload,perlane | PAVE | 1 | dBm | |||
|
Receiver Reflectance
|
Rrx | -12 | dB | |||
|
Dispersion penalty , per lane
|
TDP | 1.9 | dB | |||
|
Stressed eye J2 jitter, per Lane
|
JE2P | 0.35 | UI | |||
|
Stressed eye J9 jitter, per Lane
|
JE9P | 0.47 | UI | |||
|
Jitter tolerance [OMA], per lane
|
JTP | -5.4 | dBm | |||
|
LOS De-Assert
|
Pa | -11 | dBm | |||
|
LOS Assert
|
Pd | -25 | dBm | |||
|
LOS Hysteresis
|
Pd-Pa | 0.5 | dB | |||
Product Features
● Supports 103.1Gb/s to 112Gb/s bit rates
● MPO 24 receptacle optical interface
● CPPI electrical interface
● Uncooled 10x10Gb/s 850nm transmitter
● 10 parallel electrical serial interface
● Applicable for 100m with OM3 MMF and 150m with OM4 MMF
● Low power consumption <4W
● Digital Diagnostic Monitor Interfacel ●MDIO Communication Interface
● Compliant with 100GBASE-SR10
● Operating case temperature:0~70℃
Applications
● 100GBASE-SR10 Ethernet
● 10x11.2Gb/s Multimode OTN
Standards
● Compliant with IEEE 802.3ba
● Compliant with CFP2 MSA hardware specifications
● Compliant with CFP2 MSA management specifications
Ordering Information
| Part Number | Description |
| OLCF85TXMX-CDS1 | CFP2 100G SR10 850nm100m 0~70℃ |
