| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHs, FCC, CE, UL, ISO9001, ISO14001 |
| Model Number: | OLXB321XL-CD60 |
| Minimum Order Quantity: | 1 pc |
| Packaging Details: | Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-100K per month |
| Compatible Brand: | Cisco | Vendor Name: | Olinkcom |
|---|---|---|---|
| Data Rate: | 10Gbps | Form Factor: | XFP |
| Wavelength: | 1330/1270nm | Distance: | 60km |
| TX Power: | 1~6dBm | Max RX Power: | -21dBm |
| Temperature: | 0~70℃ | DOM: | Supported |
| High Light: | RoHs 10G XFP Module,60km LC 10G XFP Module,60km LC Optical Transceiver |
||

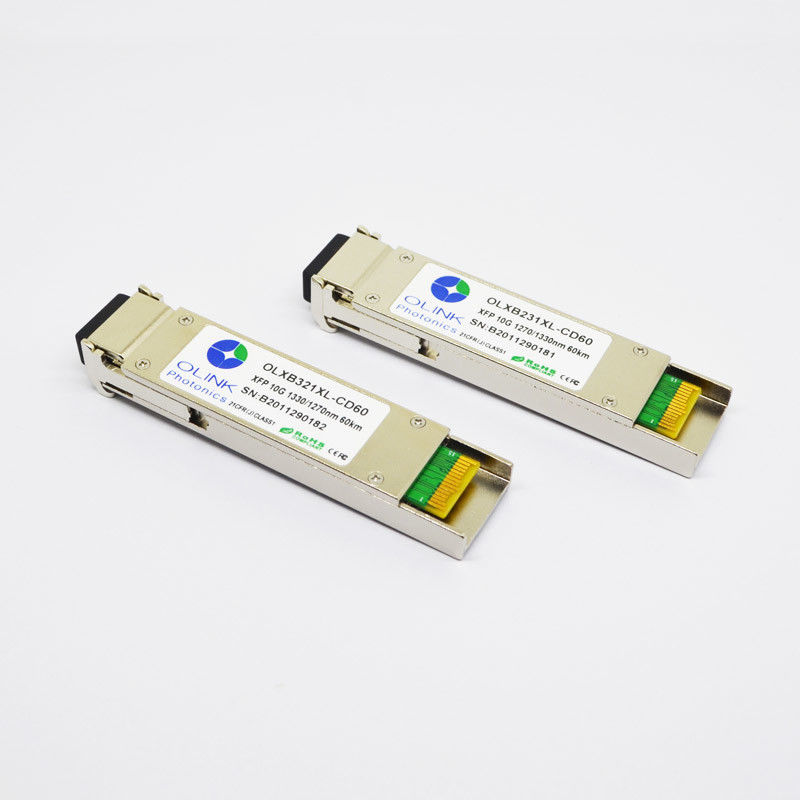

RoHs 10G XFP Module 1330nm 1270nm 60km LC Optical Transceiver
XFP-10G-BXD-60 Cisco Compatible 10GBASE-BX 1330/1270nm 60km Optical Transceiver Module
Product Descriptions
Olinkcom’OLXB321XL-CD60 is compliant with the IEEE803.3ae 10Gbase-BX. and transmission distance up to 60km on SMF .The transceiver module comprises a transmitter with a 1330nm DFB laser transmitter, an integrated 1270nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ for commercial temperature, -40 to 85 °C for industrial temperature, and offers optimum heat dissipation and excellent electromagnetic shielding for 10 GbE systems application.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1310 | 1330 | 1350 | nm | |
| Ave. output power (Enabled) | PAVE | 1 | 6 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Optical Modulation Amplitude | POMA | -2.1 | 0 | dB | OMA | |
| Extinction Ratio | ER | 5 | dB | |||
| RMS spectral width | Δλ | 0.45 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 45 | ps | |||
| Dispersion penalty | TDP | 3.2 | dB | |||
| Relative Intensity Noise | RIN | -130 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1250 | 1270 | 1290 | nm | |
| Receiver Sensitivity | PSEN | -21 | dBm | 2 | ||
| Overload | PAVE | -7 | dBm | |||
| Receiver Reflectance | Rrx | -12 | dB | |||
| LOS Assert | Pa | -40 | dBm | |||
| LOS De-assert | Pd | -25 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Product Features
●Supports 9.95 to 11.3Gb/s bit rates
●Simplex LC Connector
●Hot-pluggable XFP footprint
●Uncooled 1330nm DFB transmitter, 1270nm APD photo-detector
●Applicable for 60km SMF connection
●Low power consumption, < 2W
●Digital Diagnostic Monitor Interface
●XFP MSA package
●Operating case temperature:0~70℃
Applications
●10GBASE-ER at 10.3125Gbps
●10GBASE-EW at 9.953Gbps
●10GBASE-BX 10G Ethernet
●Other optical link
Ordering Information
| Part Number | Description | |
| OLXB321XL-CD60 | XFP Bidi,9.95 to 11.3Gb/s, 1330/1270nm, 60km, 0~70℃, with DOM | |
