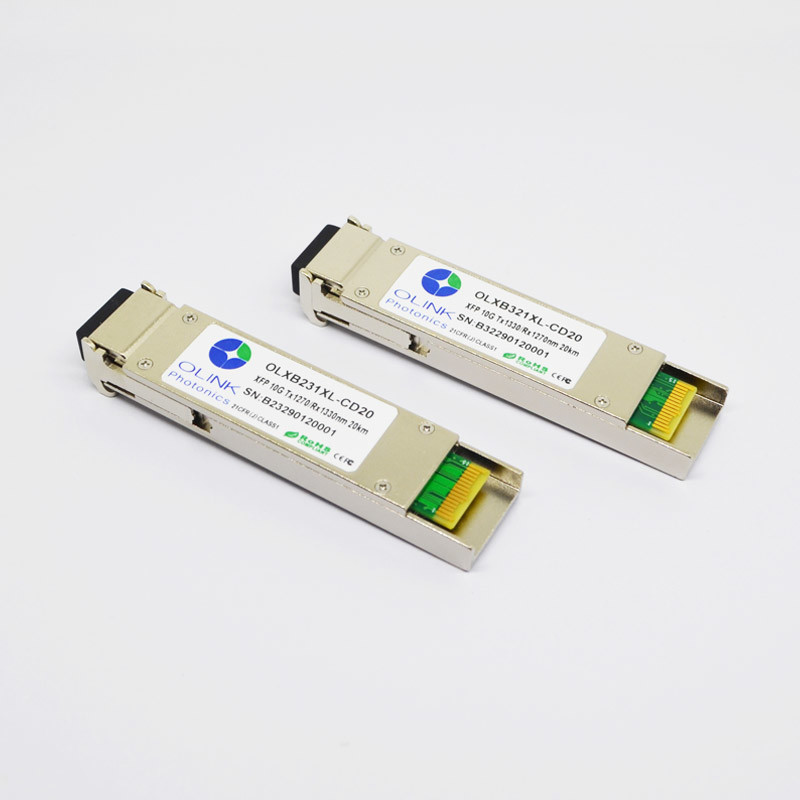

1330nm 20km 10G XFP Module

Basic Information
Place of Origin: China
Brand Name: OLKOPTO
Certification: RoHs, FCC, CE, UL, ISO9001, ISO14001
Model Number: OLXB231XL-CD20
Minimum Order Quantity: 1 pc
Packaging Details: Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet
Delivery Time: 3-5 working days
Payment Terms: T/T or Net 30 days
Supply Ability: 80-100K per month
Compatible Brand: Cisco Data Rate: 10Gbps
Form Factor: XFP Wavelength: 1270/1330nm
Distance: 20km Optical Power: -3~5dBm
Sensitivity: <-14dBm DOM: Supported
High Light:

10G XFP Module

,

20km 10G XFP Module

,

xfp 10g

1330nm 20km 10G XFP Module



Cisco XFP-10G-BXU20 Compatible 10GBASE-BX XFP 1270/1330nm 20km DOM LC SMF Transceiver Module





Product Descriptions

Olinkcom’OLXB231XL-CD20 is compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 20km on SMF .The transceiver module comprises a transmitter with a 1270nm DFB laser transmitter, an integrated 1330nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ for commercial temperature, -40 to 85 °C for industrial temperature, and offers optimum heat dissipation and excellent electromagnetic shielding for 10 GbE systems application.



Optical Characteristics (TOP(C) = 0 to 70 , TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)

Parameter Symbol Min. Typ Max. Unit Note
Transmitter
Operating Wavelength λ 1250 1270 1290 nm
Ave. output power (Enabled) PAVE -3   5 dBm 1
Side-Mode Suppression Ratio SMSR 30     dB
Optical Modulation Amplitude POMA -2.8   0 dB OMA
Extinction Ratio ER 4.5     dB
RMS spectral width Δλ     0.45 nm
Rise/Fall time (20%~80%) Tr/Tf     45 ps
Dispersion penalty TDP     2 dB
Relative Intensity Noise RIN     -130 dB/Hz
Output Optical Eye Compliant with IEEE 0802.3ae
Receiver
Operating Wavelength λ 1310 1330 1350 nm
Receiver Sensitivity PSEN     -14 dBm 2
Average Receive Power PAVE     0.5 dBm
Receiver Reflectance Rrx     -12 dB
LOS Assert Pa -30     dBm
LOS De-assert Pd     -16 dBm
LOS Hysteresis Pd-Pa 0.5     dB


Product Features

●Supports 9.95 to 11.3Gb/s bit rates

●Simplex LC Connector

●Hot-pluggable XFP footprint

●Uncooled 1270nm DFB transmitter, 1330nm PIN photo-detector

●Applicable for 20km SMF connection

●Low power consumption, < 1.8W

●Digital Diagnostic Monitor Interface

●XFP MSA package

●Operating case temperature: 0 to 70 °C



Applications

●10GBASE-LR at 10.3125Gbps

●10GBASE-LW at 9.953Gbps

●Other optical link
