| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHs, FCC, CE, UL, ISO9001, ISO14001 |
| Model Number: | OLXB321XL-CD10 |
| Minimum Order Quantity: | 1 pc |
| Packaging Details: | Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 80-100K per month |
| Compatible Brand: | Cisco | Data Rate: | 10Gbps |
|---|---|---|---|
| Form Factor: | XFP | Wavelength: | 1330/1270nm |
| Distance: | 10km | Optical Power: | -6~0dBm |
| Sensitivity: | <-14dBm | DOM: | Supported |
| High Light: | 10km Dwdm XFP Transceiver,10km XFP Transceiver,10km 1270nm XFP Transceiver |
||

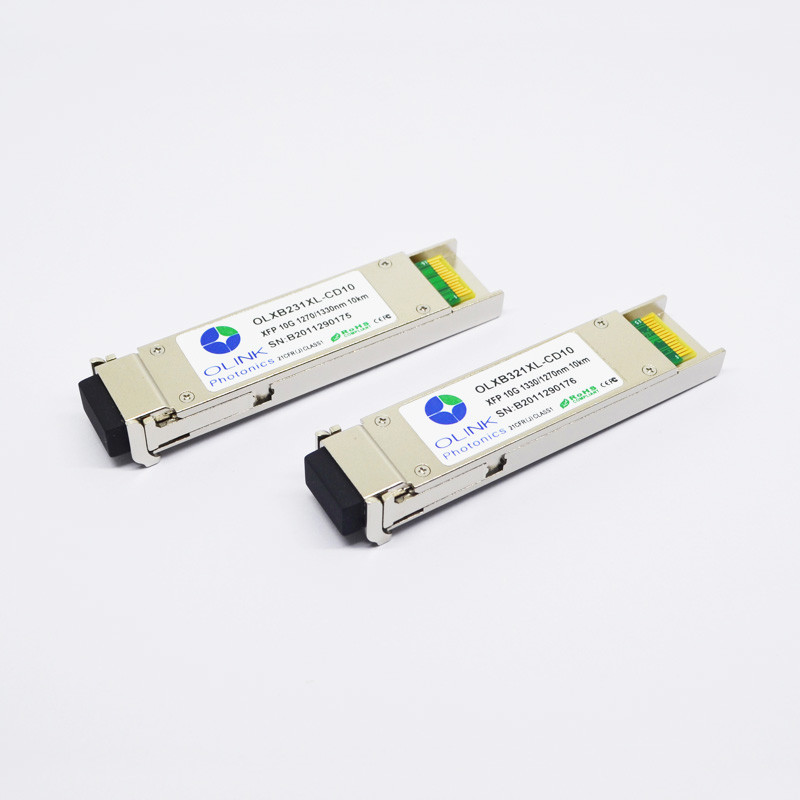

1330nm 1270nm Dwdm XFP Transceiver 10km DOM LC SMF XFP-10G-BXD10 Compatible
Cisco XFP-10G-BXD10 Compatible 10GBASE-BX XFP 1330/1270nm 10km DOM LC SMF Transceiver Module
Product Descriptions
Olinkcom’OLXB321XL-CD10 is compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 10km on SMF .The transceiver module comprises a transmitter with a 1330nm DFB laser transmitter, an integrated 1270nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ for commercial temperature, -40 to 85 °C for industrial temperature, and offers optimum heat dissipation and excellent electromagnetic shielding for 10 GbE systems application.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1310 | 1330 | 1350 | nm | |
| Ave. output power (Enabled) | PAVE | -6 | 0 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Optical Modulation Amplitude | POMA | -2.8 | 0 | dB | OMA | |
| Extinction Ratio | ER | 4 | dB | |||
| RMS spectral width | Δλ | 0.45 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 45 | ps | |||
| Dispersion penalty | TDP | 2 | dB | |||
| Relative Intensity Noise | RIN | -130 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1250 | 1270 | 1290 | nm | |
| Receiver Sensitivity | PSEN | -14 | dBm | 2 | ||
| Average Receive Power | PAVE | 0.5 | dBm | |||
| Receiver Reflectance | Rrx | -12 | dB | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -16 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Product Features
● Supports 9.95 to 11.3Gb/s bit rates
● Simplex LC Connector
● Hot-pluggable XFP footprint
● Uncooled 1330nm DFB transmitter, 1270nm PIN photo-detector
● Applicable for 10km SMF connection
● Low power consumption, < 1.8W
● Digital Diagnostic Monitor Interface
● XFP MSA package
● Operating case temperature: 0 to 70 °C
Applications
● 10GBASE-LR at 10.3125Gbps
● 10GBASE-LW at 9.953Gbps
● Other optical link
