| Place of Origin: | SZ China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | ISO9001,ISO14001,OHSAS18001 |
| Model Number: | OLXP551XL-CD40 |
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | TT/Net 30days |
| Supply Ability: | 80-100k per month |
| Part Number: | OLXP551XL-CD40 | Transmission Distance: | 40km |
|---|---|---|---|
| Low Power Consumption: | < 2W | Wavelength: | 1550nm |
| Commerical Temp: | 0 To 70 °C | Industrial Temp: | -40 To 85°C |
| High Light: | 40km 10GBASE LR XFP,40km XFP Transceiver Module,40km XFP Transceiver Module |
||

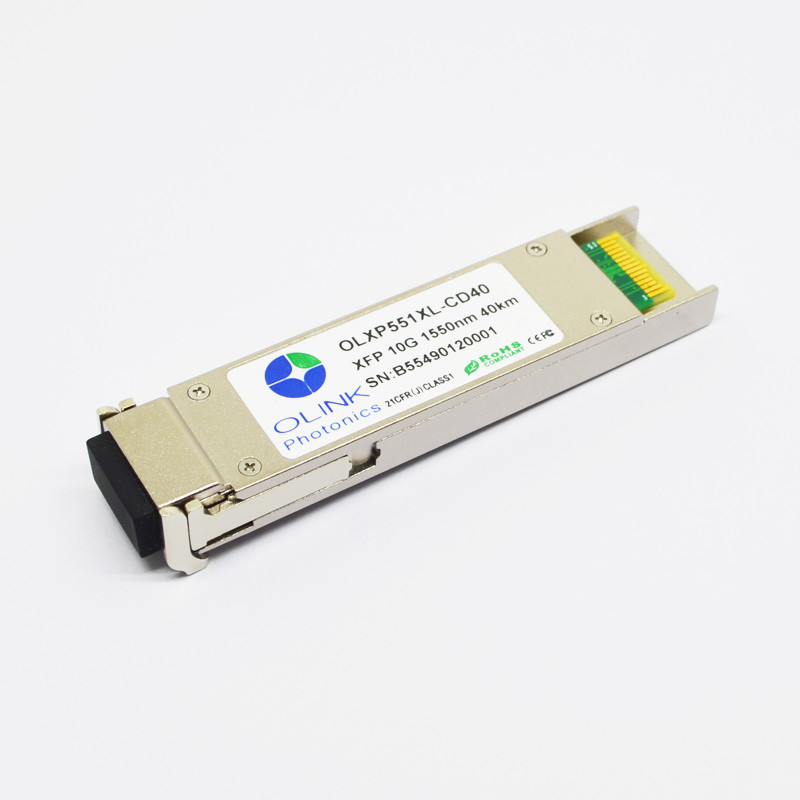

DOM LC 10GBASE LR XFP Transceiver Module 1550nm 40km Dell Support
Dell 100% Support 10GBASE-LR XFP 1550nm 40km DOM LC MMF 10G XFP Transceiver Module
Product Features
● Supports 9.95 to 11.3Gb/s bit rates
● Duplex LC connector
● Hot-pluggable XFP footprint
● Cooled 1550nm EML laser ,PIN photo-detector ●Applicable for 40km SMF connection
● Low power consumption, <2.0W
● Digital Diagnostic Monitor Interface
● No Reference Clock required
● Operating case temperature:
Commerical:0 to 70 °C
Industrial:-40 to 85°C
Applications
● 10GBASE-ER/EW 10G Ethernet
● 40km 10G Fibre Channel
● SONET OC-192 IR-2/3,SDH STM S-64.2/3b,ITU-T G.709
● Other optical link
Product Descriptions
Olinkcom’ OLXP551XL-C(I)D40,Small Form Factor 10Gb/s XFP transceivers comply with the current XFP Multi-Source Agreement (MSA) Specification. They also comply with SONET OC-192 IR-2, OC-192 IR-3, SDH STM S-64.2b, STM S-64.3b as well aswith 10-Gigabit Ethernet 10GBASE-ER/EW per IEEE 802.3ae and 40km 10G Fibre Channel applications. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1530 | 1565 | nm | ||
| Ave. output power | PAVE | 0 | +6 | dBm | 1 | |
| Optical Modulation Amplitude | POMA | -2.1 | dBm | 2 | ||
| Extinction Ratio | ER | 6 | dB | 1 | ||
| Sidemode Superssion Ratio | SMSR | 30 | dB | |||
| SONET Tx Jitter(Peak to Peak) | Txj | 0.1 | UI | 3 | ||
| Tx Jitter(RMS) | 0.01 | UI | 4 | |||
| Dispersion penalty(@800 ps/nm) | TDP | 2 | dB | |||
| Relative Intensity Noise | RIN | -130 | dB/Hz | |||
| Receiver | ||||||
| Operating Wavelength | λ | 1260 | 1620 | nm | ||
| Receiver Sensitivity@10.3Gbps | PSEN1 | -16 | dBm | 5 | ||
| Receiver Sensitivity@11.3Gbps | PSEN2 | -15 | dBm | 5 | ||
| Overload | Pmax | -1 | dBm | |||
| Receiver Reflectance | Rrx | -27 | dB | |||
| Path penalty over 40Km@10.7G | 2 | dB | 6 | |||
| LOS Assert | Pa | -35 | dBm | |||
| LOS De-assert | Pd | -22 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
More details of our products:
High Reliable Optical Components and Excellent Design
1.DLB laser and PIN photodiode
2.Thick Gold Finger
3.Plating Hard Gold Shell
Cost-effective and Reliable Transmission
Our Packing & Labeling:
Our mission is to provide cost effective optical transceiver SFP, SFP+,DAC, QSFP etc with 100% reliable quality, quick lead-time and great after sale service.
Our all modules have 3 years warranty!
