| Product Name: | 10GBase-ZR | Compatibility: | Extreme |
|---|---|---|---|
| Data Rate: | 10Gb/s | Form Factor: | SFP+ |
| Wavelength: | 1550nm | Max Distance: | 100km |
| Fiber Type: | SMF | Connector: | LC |
| Function Options: | DOM | Operating Temperature: | 0-70°C |

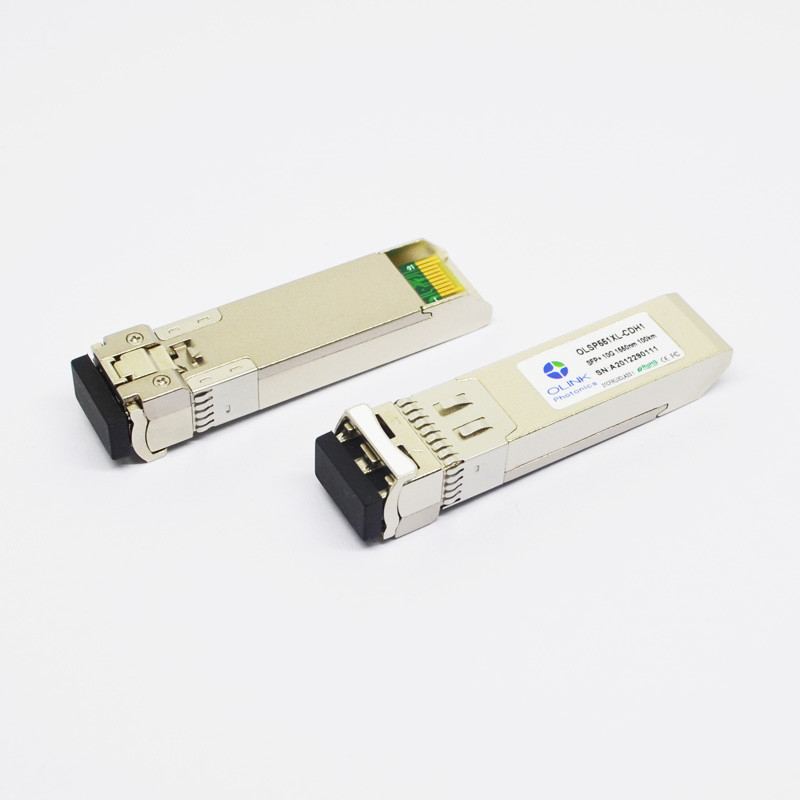

Extreme Networks 10GB-ZR100-SFP Compatible 10GBASE-ZR SFP+ 1550nm 100km Transceiver
This Extreme Networks compatible SFP+ ZR transceiver provides 10GBase-ZR throughput up to 80km over single-mode fiber (SMF) using a wavelength of 1550nm via an LC connector. It is guaranteed to be 100% compatible with the equivalent Extreme Networks equipment. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters.
Features
|
INTERFACE TYPE:
|
10G
|
|
FIBER TYPE:
|
single-mode
|
|
TRANSCEIVER FORMAT:
|
SFP+
|
|
WAVELENGTH:
|
1550nm
|
|
TX DISTANCE:
|
100km
|
|
CONNECTORS:
|
LC
|
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 9.953 | 10.3125 | 11.3 | Gb/s | |
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 450 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Digital Diagnostic Specifications
The OLSP551XL-C(I)DH1 transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.
| Parameter | Symbol | Units | Min. | Max. | Accuracy | Note |
| Transceiver temperature | DTemp-E | ºC | -45 | +90 | ±5ºC | 1,2 |
| Transceiver supply voltage | DVoltage | V | 2.8 | 4.0 | ±3% | |
| Transmitter bias current | DBias | mA | 0 | 127 | ±10% | 3 |
| Transmitter output power | DTx-Power | dBm | -1 | +6 | ±2dB | |
| Receiver average input power | DRx-Power | dBm | -27 | -7 | ±2dB |
Notes:
1.When Operating temp.=0~70 ºC,the range will be min=-5,Max=+75
2. Internally measured
3. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser
Applications
10GBASE-ZR/10GBASE-ZW Ethernet
10G Fiber Channel
10GbE Data Center Switches and Routers
Description
• SFP+ 100km transceiver module
• Electrical interface compliant to SFF-8431
• Compliant with SFF-8472
• 10Gb/s serial optical interface compliant to 802.3ae
• 1550nm EML transmitter, APD photo-detector
• Built-in digital diagnostic functions
