| Product Name: | 10GBase-SR | Compatibility: | Extreme |
|---|---|---|---|
| Data Rate: | 10Gb/s | Form Factor: | SFP+ |
| Wavelength: | 850nm | Max Distance: | 300m |
| Fiber Type: | MMF | Optical Components: | VCSEL/PIN |
| Function Options: | DOM | Operating Temperature: | 0-70°C, -40-85°C |

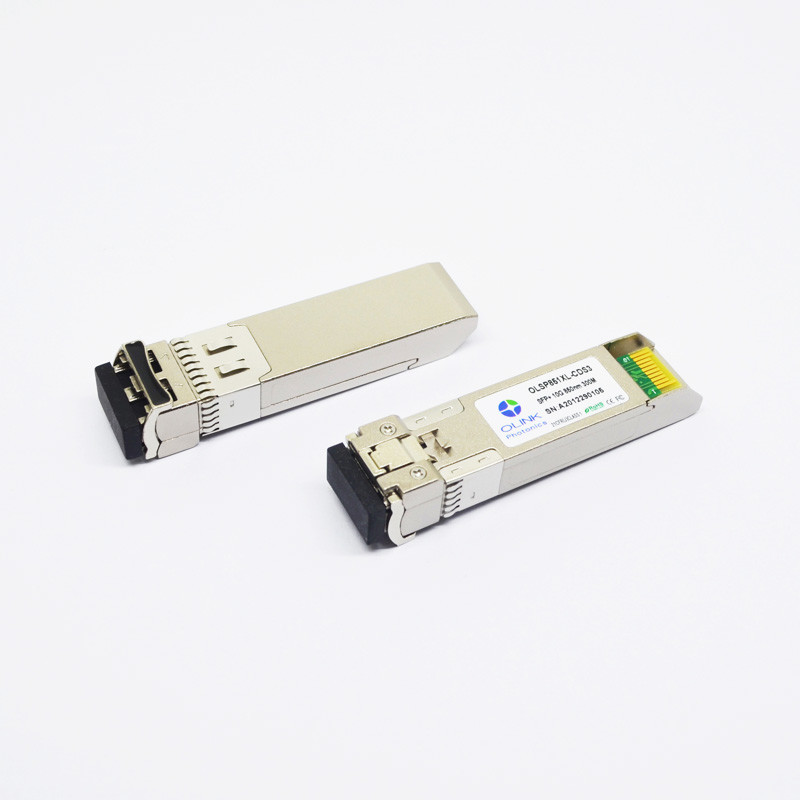

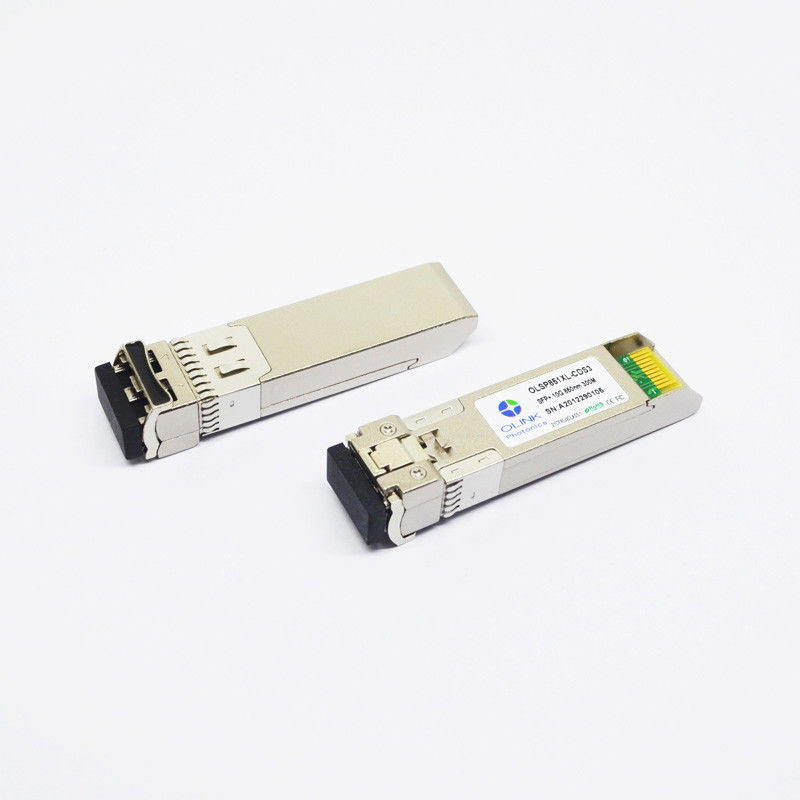

Extreme Networks 10301 Compatible 10GBase-SR SFP+ Transceiver (MMF, 850nm, 300m, DOM, LC)
OLSP851XL-C(I)DS3 Extreme Compatible is a Duplex 10GBASE-SR/SW Ethernet 10G Ethernet / 8G FC SFP+ transceiver designed for long distance optical communications up to 300m with signaling rates up to 10Gbps. Olinkcom's 10Gbps Duplex optical transceivers have undergone rigorous qualification and certification testing to provide End-to-End Compatibility using switching equipment. All SFP+ s are ROHS compliant, allow for real-time diagnostic monitoring.
Features
• Hot-pluggable SFP+ foot print
• Built-in digital diagnostic functions
• Uncooled 850nm VCSEL laser transmitter
• RoHS-6 compliant (lead-free)
• Power dissipation < 1W
• Receiver limiting electrical interface
• Duplex LC connector
• Single 3.3V power supply
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 9.953 | 10.3125 | 11.3 | Gb/s | |
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 300 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Optical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 810 | 850 | 880 | nm | |
| Ave. output power (Enabled) | PAVE | -6 | 0 | dBm | 1 | |
| Extinction Ratio | ER | 3.5 | dB | |||
| RMS spectral width | Δλ | 0.85 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | 2 | ||
| Dispersion penalty | TDP | 2 | dB | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 840 | 850 | 860 | nm | ||
| Receiver Sensitivity(ER=4.5) | PSEN1 | -11.1 | dBm | 3 | ||
| Overload | PAVE | 0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -12 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
2.20%~80%
3.Under the ER worst case=4.5@ 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
Applications
• 10GBASE-SR at 10.3125Gbps
• 10GBASE-SW at 9.953Gbps
• Other optical links
Description
The SFP-10G-SR is a short range multimode 10G SFP+ optical module compliant with 10GBase-SR specs. It uses a VCSEL laser transmitter at 850nm. Line rate of transceiver is 10.3125Gbps. Tested and found compatible on various 10G Ethernet switches.
All our fiber optic transceiver modules come with 3 Years warranty. Every SFP-10G-SR module is environmentally tested in its specific port/platform, which includes compliance verification for distance, wavelength, traffic density and light.
