| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSP311XL-CD10 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ 1310nm 10km | Compatibility: | Extreme |
|---|---|---|---|
| Data Rate: | 10Gb/s | Form Factor: | SFP+ |
| Wavelength: | 1310nm | Max Distance: | 10km |
| Fiber Type: | SMF | Optical Components: | DFB/PIN |
| Function Options: | DOM | Operating Temperature: | 0-70°C |

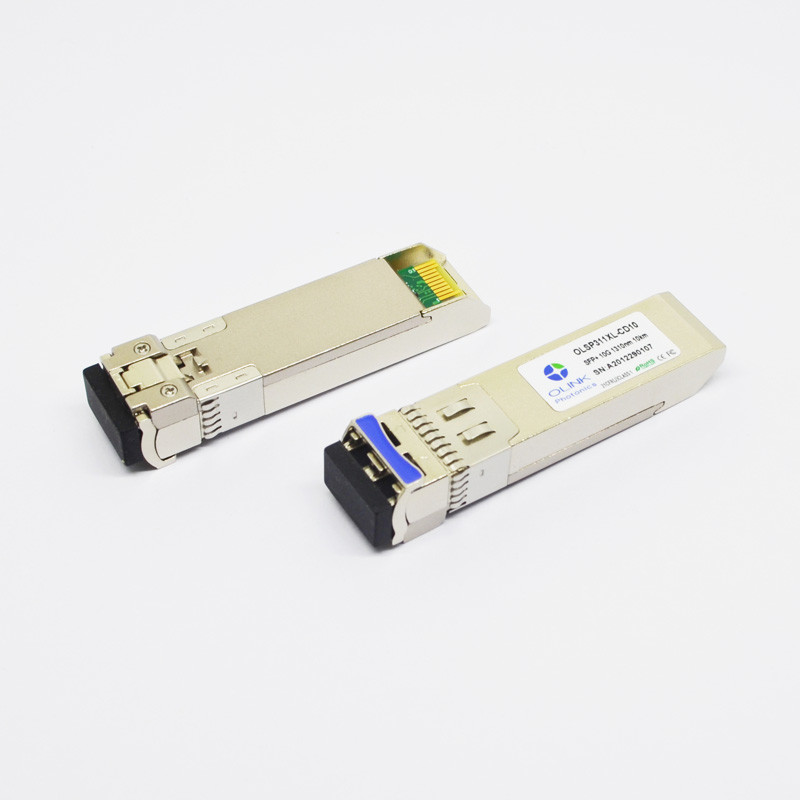

Extreme 10302 Compatible 10GBASE-LR SMF 1310nm 10km SFP+ Transceiver
The OLSP311XL-CD10 Extreme Compatible 10GBASE-LR Transceiver with a duplex LC female connector, is designed to operate with Extreme networking equipment.This 10GBase-LR transceiver is fully hot-pluggable, so you can install it without shutting down the network or rebooting your device. It supports data transfer rates up to 10 Gbps with 1310 nm wavelength signaling, and transmits across six miles (10 kilometers) of 9/125 SMF cabling.
Product Features
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | 9.953 | 10.3125 | 11.3 | Gb/s | ||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 300 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Digital Diagnostic Specifications
The OLSP311XL-C(I)D10 transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.
| Parameter | Symbol | Units | Min. | Max. | Accuracy | Note |
| Transceiver temperature | DTemp-E | ºC | -45 | +90 | ±5ºC | 1,2 |
| Transceiver supply voltage | DVoltage | V | 2.8 | 4.0 | ±3% | |
| Transmitter bias current | DBias | mA | 2 | 80 | ±10% | 3 |
| Transmitter output power | DTx-Power | dBm | -7 | +1 | ±2dB | |
| Receiver average input power | DRx-Power | dBm | -16 | 0 | ±2dB |
Notes:
1.When Operating temp.=0~70 ºC,the range will be min=-5,Max=+75
2. Internally measured
3. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser
• Summit X460-G2-48p-10GE4
• Summit X460-G2-24t-GE4
• Summit X460-G2-48t-GE4
• Summit X460-G2-24p-GE4
• Summit X460-G2-48p-GE4
• Summit X460-G2 VIM-2x
• Summit X460-G2 VIM-2q
• Summit X460 Series
• Summit X450-G2-24t-10GE4
• Summit X450-G2-48t-10GE4
• Summit X450-G2-24p-10GE4
• Summit X450-G2-48p-10GE4
• Summit X450-G2-24t-GE4
• Summit X450-G2-48t-GE4
• Summit X450-G2-24p-GE4
• Summit X450-G2-48p-GE4
| Related Products | |||
| PART NO. | DATA RATE | WAVELENGTH | DISTANCE |
| OLSP851XL-CDS3 | 10Gbps | 850nm | 300m |
| OLSP311XL-CD02 | 10Gbps | 1310nm | 2km |
| OLSP311XL-CD20 | 10Gbps | 1310nm | 20km |
| OLSP311XL-CD10S | 10Gbps | 1310nm | 40km |
| OLSP551XL-CD40 | 10Gbps | 1550nm | 40km |
| OLSP551XL-CD80 | 10Gbps | 1550nm | 80km |
| OLSP551XL-CDH1 | 10Gbps | 1550nm | 100km |
