| Place of Origin: | SZ China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | ISO9001,ISO14001,OHSAS18001 |
| Model Number: | OLXP851XL-CDS3 |
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet |
| Delivery Time: | 3-5 working days |
| Payment Terms: | TT/Net 30days |
| Supply Ability: | 80-100k per month |
| Compatible: | Cisco | Part Number: | OLXP851XL-CDS3 |
|---|---|---|---|
| Data Rate: | 10G | Transmission Distance: | 300m |
| Low Power Consumption: | < 1.3W | Wavelength: | 850nm |
| High Light: | 300m 10G XFP Module,300m 860nm 10G XFP Module,300m xfp 10gbase lr |
||

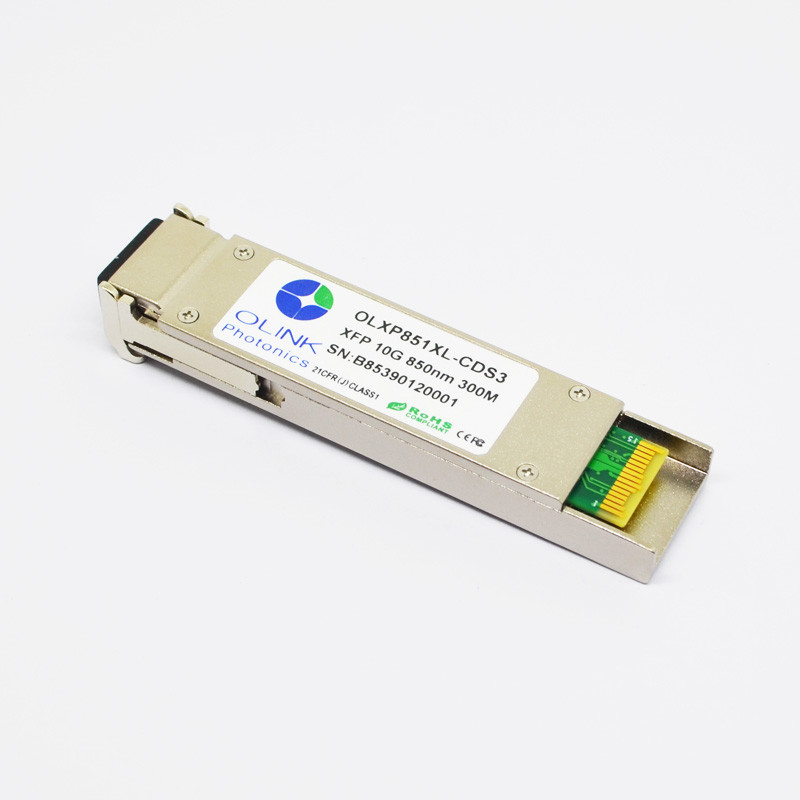

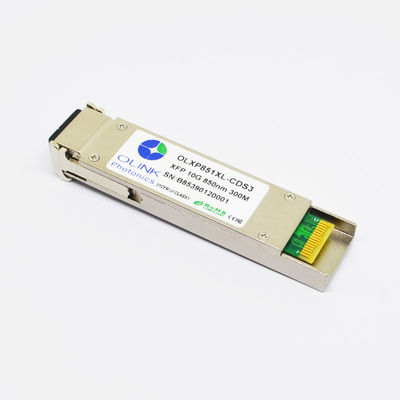

Cisco Compatible 10GBASE-SR XFP 850nm 300m DOM LC MMF 10G XFP Transceiver Module
Product Features
● Supports 9.95 to 11.3Gb/s bit rates
● Duplex LC Connector
● Hot-pluggable XFP footprint
● 850nm heated VCSEL laser
● Applicable for 300m MMF connection
● Low power consumption, < 1.3W
● Digital Diagnostic Monitor Interface
● No Reference Clock required
● Operating case temperature:
Commerical:0 to 70 °C
Industrial:-40 to 85°C
Applications
● 10GBASE-SR/SW 10G Ethernet
● 10G Fibre Channel
● Other optical link
Product Descriptions
Olinkcom’ OLXP851XL-C(I)DS3 Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification, now available with Commerical Temperature Range of Operation(0 °C to 70°C) and Industrial Temperature Range of Operation (-40°C to +85°C). They comply with 10-Gigabit Ethernet 10GBASE-SR/SW per IEEE 802.3ae, 10G Fibre Channel request. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Ave. output power | PAVE | -6 | -1 | dBm | 1 | |
| Optical Modulation Amplitude | POMA | -2.8 | -1.5 | dB | OMA | |
| Extinction Ratio | ER | 3.5 | dB | |||
| RMS spectral width | Δλ | 0.45 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||
| Dispersion penalty | TDP | 3.9 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Tx Jitter | TJ | Compliant with IEEE 802.3ae | ||||
| Receiver | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Receiver Sensitivity | PSEN1 | -11.1 | dBm | 2 | ||
| Stressed Receiver Sensitivity | PSEN2 | -7.5 | dBm | 2 | ||
| Overload | Pmax | 0.5 | dBm | |||
| Receiver Reflectance | Rrx | -12 | dB | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -14 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
More details of our products:
High Reliable Optical Components and Excellent Design
1. DLB laser and PIN photodiode
2. Thick Gold Finger
3. Plating Hard Gold Shell
Cost-effective and Reliable Transmission
Our Packing & Labeling:
Our mission is to provide cost effective optical transceiver SFP, SFP+,DAC, QSFP etc with 100% reliable quality, quick lead-time and great after sale service.
Our all modules have 3 years warranty!
