| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSP551XL-CD40 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ 850nm 300m | Compatibility: | Extreme |
|---|---|---|---|
| Data Rate: | 10Gb/s | Form Factor: | SFP+ |
| Wavelength: | 1550nm | Max Distance: | 40km |
| Fiber Type: | SMF | Optical Components: | DFB/PIN |
| Function Options: | DOM | Operating Temperature: | 0-70°C |

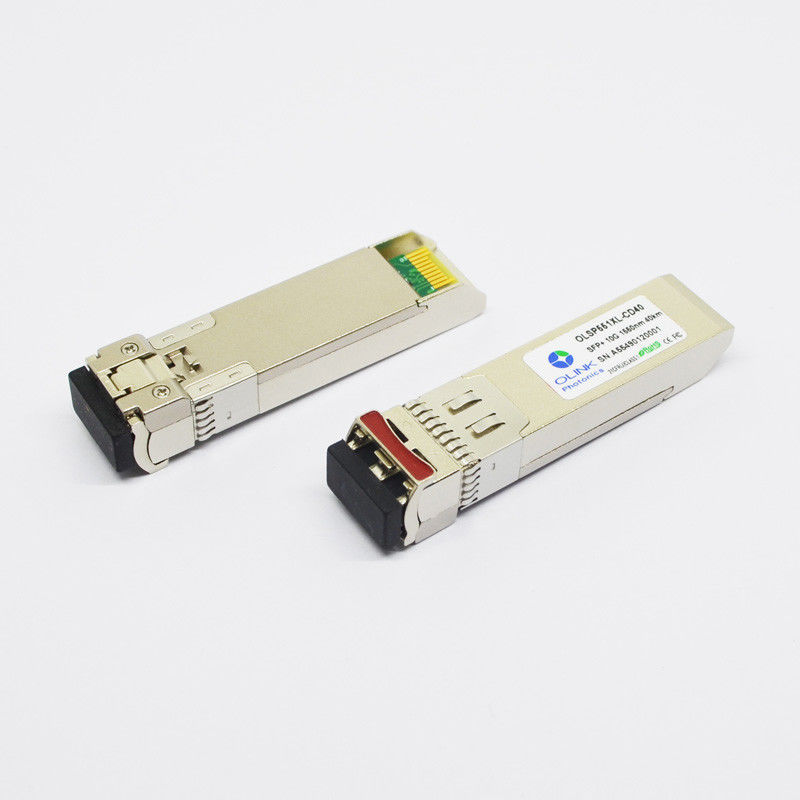

Extreme 10GB-ER-SFPP Compatible 10GBASE-ER SFP+ 1550nm 40km Transceiver
Olinkcom’s OLSP551XL-CD40 is a high performance and cost-effective SFP+ transceiver module supporting data-rate of 10.3125Gbps (10GBASE-ER) or 9.953Gbps (10GBASE-EW) over single mode optical fiber. This transceiver is programmed to be compatible with a wide range of Extreme network equipment such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and Media Converters.
Product Features
• Hot Pluggable
• Built-in digital diagnostic functions
• Commercial Temperature 0 to 70 Celsius
• Metal with Lower EMI
• Excellent ESD Protection
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 9.953 | 10.3125 | 11.3 | Gb/s | |
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 400 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Digital Diagnostic Specifications
The OLSP551XL-C(I)D40 transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.
| Parameter | Symbol | Units | Min. | Max. | Accuracy | Note |
| Transceiver temperature | DTemp-E | ºC | -45 | +90 | ±5ºC | 1,2 |
| Transceiver supply voltage | DVoltage | V | 2.8 | 4.0 | ±3% | |
| Transmitter bias current | DBias | mA | 0 | 80 | ±10% | 3 |
| Transmitter output power | DTx-Power | dBm | -3 | +5 | ±2dB | |
| Receiver average input power | DRx-Power | dBm | -17 | 0 | ±2dB |
Notes:
1.When Operating temp.=0~70 ºC,the range will be min=-5,Max=+75
2. Internally measured
3. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser
• X620-16x
• X620-16t
• X620-10x
• X620-8t-2x
• BlackDiamond 8000 Series Switches
• X8Cloud-Scale Data Center Switch
• Summit X670-G2-48x-4q
• Summit X670-G2-72x
• 17101 Summit X670V-48x-FB
• 17102 Summit X670V-48x-BF
• 17103 Summit X670-48x-FB
• 17104 Summit X670-48x-BF
• Summit x670V-48t
• Summit X460-G2-24t-10GE4
• Summit X460-G2-48t-10GE4
• Summit X460-G2-24x-10GE4
• Summit X460-G2-48x-10GE4
• Summit X460-G2-24p-10GE4
