| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSP551XL-CD40 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ ER | Data Rate: | 10Gbps |
|---|---|---|---|
| Form Factor: | SFP+ | Wavelength: | 1550nm |
| Distance: | 40km | Compatibility: | Ubiquiti |
| TX Power: | -2 ~ 3 DBm | Receiver Sensitivity: | < -16 DBm |
| Function Options: | DOM | Operating Temperature: | 0-70°C |

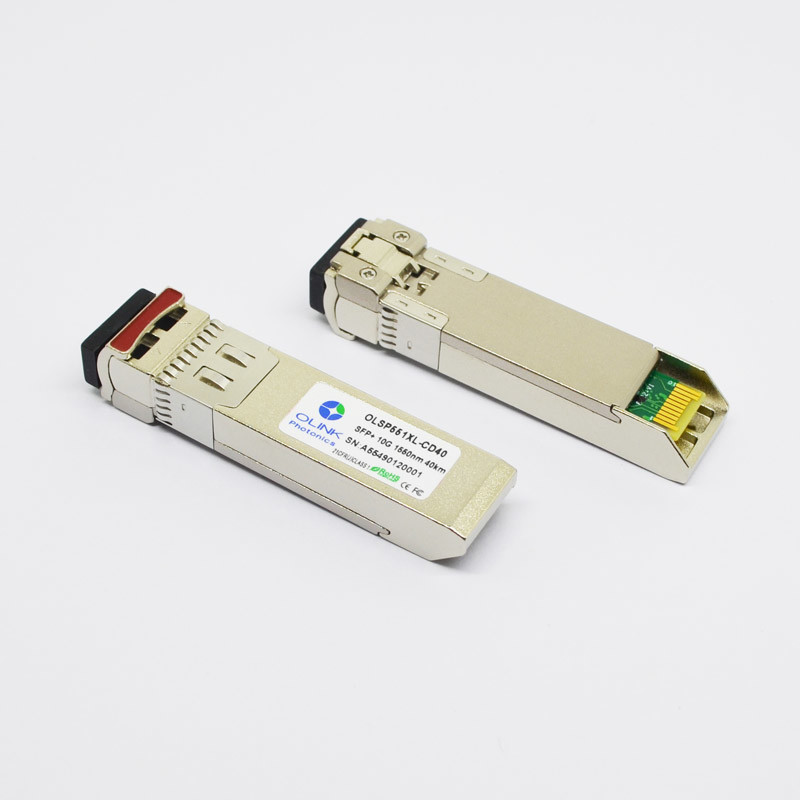

Ubiquiti UF-SM40-10G Compatible 10GBASE-ER SFP+ 1550nm 40km Transceiver
Olinkcom's Ubiquiti UF-SM40-10G Compatible OLSP551XL-CD40 is a 10G ER single-mode SFP+ transceiver using 1550nm wavelength and reaching up to 40km distance. The module can be used for Ubiquiti 10G network equipment, 10G Ethernet, SONET or SDH networks.
Product Features
• Electrical interface compliant to SFF-8431
• 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER
• Distance up to 40km
• ROHS compliant and lead-free
• Duplex LC Connector
Electrical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Differential data input swing | VINPP | 120 | 1200 | mVpp | 1 | |
| Transmit Disable Voltage | VD | VCC-0.8 | Vcc | V | ||
| Transmit Enable Voltage | VEN | 0 | 0.8 | |||
| Input differential impedance | Rin | 100 | Ω | |||
| Receiver | ||||||
| Differential data output swing | Vout,pp | 350 | 700 | mVpp | 2 | |
| Output rise time and fall time | Tr, Tf | 28 | Ps | 3 | ||
| LOS asserted | VLOS_F | VCC-0.8 | Vcc | V | 4 | |
| LOS de-asserted | VLOS_N | 0 | 0.8 | V | 4 | |
Note:
1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
2. Into 100Ω differential termination.
3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an acceptable alternative.
4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1530 | 1570 | nm | ||
| Ave. output power (Enabled) | PAVE | -2 | 4 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 4 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Dispersion penalty | TDP | 4 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 1260 | 1600 | nm | |||
| Receiver Sensitivity @10.3G | -16 | dBm | 2 | |||
| Path Penalty | PP | 2 | dB | |||
| Overload | PAVE | +0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -18 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured with worst ER=5dB
2. PRBS 231 – 1 and BER<10-12
OLSP551XL-CD40 is 100% compatible with Ubiquiti device. It utilizes single-mode fiber (SMF) to achieve a 40km reach. This module is capable of digital optical monitoring (DOM) to show real-time details including Tx output, Rx sensitivity, temperature and more.
