| Product: | 10G SFP+ ER | Reach: | 10Gbps |
|---|---|---|---|
| Type: | SFP+ | Wavelength: | 1550nm |
| Distance: | 40km | Compatible: | Edgecore |
| TX Power: | -2 ~ 3 DBm | Receiver Sensitivity: | < -16 DBm |
| Function Options: | DOM | Operating Temperature: | 0-70°C |

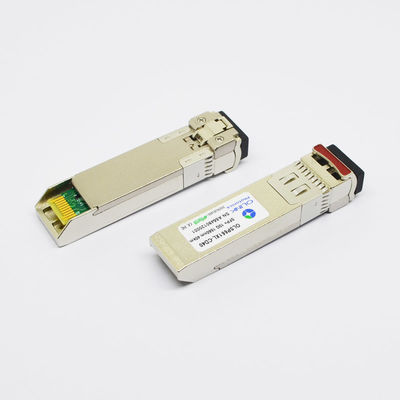

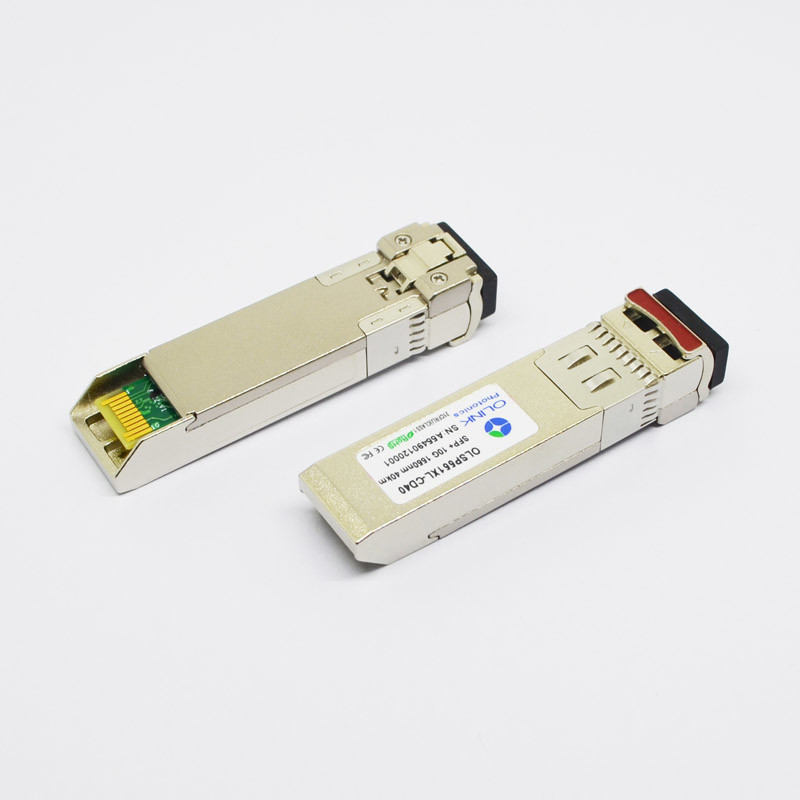

Edgecore ET5402-ER Compatible 10GBASE-ER SFP+ 1550nm 40km Transceiver
OLSP551XL-CD40 is a third party transceiver designed for use with Edgecore 10G networking equipment. This SFP+ module supports data-rate of 10.3125Gbps (10GBASE-ER), providing 10-Gigabit connectivity for up to 40 km over single mode fiber cable. This SFP+ module is programmed and tested at the factory, to ensure it works with Edgecore 10G Ethernet Switches, Routers, and network card.
Features
● LC Fiber Optic Connector Type
● 100% Guaranteed Compatibility
● Part number and unique product serialization
● Eliminates any network communication conflicts and provides easy identification
● Fully comply with the multi-sourcing agreement (MSA) which enables them to work in all MSA compliant platforms
Electrical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Differential data input swing | VINPP | 120 | 1200 | mVpp | 1 | |
| Transmit Disable Voltage | VD | VCC-0.8 | Vcc | V | ||
| Transmit Enable Voltage | VEN | 0 | 0.8 | |||
| Input differential impedance | Rin | 100 | Ω | |||
| Receiver | ||||||
| Differential data output swing | Vout,pp | 350 | 700 | mVpp | 2 | |
| Output rise time and fall time | Tr, Tf | 28 | Ps | 3 | ||
| LOS asserted | VLOS_F | VCC-0.8 | Vcc | V | 4 | |
| LOS de-asserted | VLOS_N | 0 | 0.8 | V | 4 | |
Note:
1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
2. Into 100Ω differential termination.
3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an acceptable alternative.
4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1530 | 1570 | nm | ||
| Ave. output power (Enabled) | PAVE | -2 | 4 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 4 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Dispersion penalty | TDP | 4 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 1260 | 1600 | nm | |||
| Receiver Sensitivity @10.3G | -16 | dBm | 2 | |||
| Path Penalty | PP | 2 | dB | |||
| Overload | PAVE | +0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -18 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured with worst ER=5dB
2. PRBS 231 – 1 and BER<10-12
FAQ:
Q1: How about the warranty ?
All of our products are 3 years warranty (The return and change service within 1 year, repair within 2 years)
Q2: Do you have Minimum order quantity?
We don't have any MOQ.
