Single Mode Fiber 10G SFP+ Optical Transceiver Module 10GBASE-ER

Basic Information
Place of Origin: China
Brand Name: OLKOPTO
Certification: CE, RoHS, FCC, FDA, UL, EMC, ISO9001
Model Number: OLSP551XL-CD40
Minimum Order Quantity: 1 pc
Price: negotiable
Packaging Details: 10pcs/ foil bag, individual package
Delivery Time: 3-6 working days
Payment Terms: T/T
Supply Ability: 80-120k per month
Product Name: 10GBASE-ER Data Rate: 10Gbps
Form Factor: SFP+ Wavelength: 1550nm
Distance: 40km Compatibility: Planet
Fiber: SMF Output Power: -2 ~ 3 DBm
Receiver Sensitivity: < -16 DBm Operating Temperature: 0-70°C
High Light:

Fiber 10G SFP+ Optical Transceiver

,

UL 10G SFP+ Optical Transceiver

,

10GBASE-ER

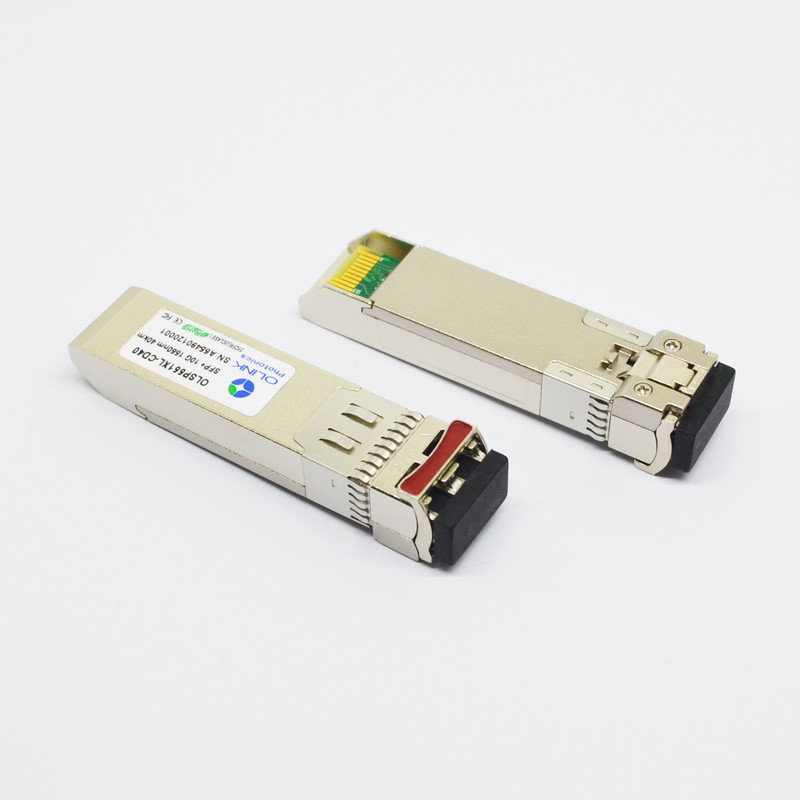

Single Mode Fiber 10G SFP+ Optical Transceiver Module 10GBASE-ER



Planet MTB-ER Compatible 10GBASE-ER SFP+ 1550nm 40km Transceiver



Product Description



Olinkcom's OLSP551XL-CD40 is a 10GBase -ER SFP+ transceiver that is 100% compatible with Planet device. It utilizes single-mode fiber (SMF) to achieve a 40km reach. This module is capable of digital optical monitoring (DOM) to show real-time details including Tx output, Rx sensitivity, temperature and more.



Features

• SFF-8432 and SFF-8472 Compliance
• Duplex LC Connector
• Single-mode Fiber
• Commercial Temperature 0 to 70 Celsius
• Hot Pluggable
• Metal with Lower EMI
• Excellent ESD Protection
• RoHS Compliant and Lead Free



Absolute Maximum Ratings

Parameter Symbol Min. Max. Unit Note
Supply Voltage Vcc -0.5 4.0 V
Storage Temperature TS -40 85 °C
Relative Humidity RH 0 85 %



Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.



General Operating Characteristics

Parameter Symbol Min. Typ Max. Unit Note
Data Rate DR 9.953 10.3125 11.3 Gb/s
Supply Voltage Vcc 3.13 3.3 3.47 V
Supply Current Icc5     400 mA
Operating Case Temp. Tc 0   70 °C
TI -40   85



Digital Diagnostic Specifications



The OLSP551XL-C(I)D40 transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.

Parameter Symbol Units Min. Max. Accuracy Note
Transceiver temperature DTemp-E ºC -45 +90 ±5ºC 1,2
Transceiver supply voltage DVoltage V 2.8 4.0 ±3%
Transmitter bias current DBias mA 0 80 ±10% 3
Transmitter output power DTx-Power dBm -3 +5 ±2dB
Receiver average input power DRx-Power dBm -17 0 ±2dB

Notes:

1. When Operating temp.=0~70 ºC,the range will be min=-5,Max=+75

2. Internally measured

3. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser



Compatibility

• XGSW-28040
• XGSW-28040HP
• XGS3-24042
• XGS3-24242
• SGS-6340-16XR
• SGS-6340-20S4C4X
• SGS-6341-24P4X
• SGS-6341-24T4X
• SGS-5220-24S2XR
• SGS-5220-24P2X
• SGS-5220-24T2X
• IGS-5225-20T4C2X

FAQ:

Q1: What's your main products?

Olinkcom is the manufacturer of optical transceivers, offers full range of transceivers from 155M to 100G, including SFP, SFP+, XFP, SFP28, QSFP+, QSFP28, CFP2 etc.

Q2: Do you have Minimum order quantity?

We don't have any MOQ.
