| Data Rate: | 11.3Gb/s Bit Rates | Form Factor: | XFP |
|---|---|---|---|
| Connector: | LC Duplex | Wavelength: | 850nm |
| Distance: | 300m | Fiber Type: | MMF |
| Compatibility: | Customized | DOM Support: | Yes |
| Temperature: | 0~70 °C / 40~85°C | Warranty: | 3 Years |
| High Light: | SR 10G XFP Module,300m 10G XFP Module,300m SR Optical Transceiver |
||
Customized DOM LC 10G XFP Module SR Optical Transceiver MMF GS Approved

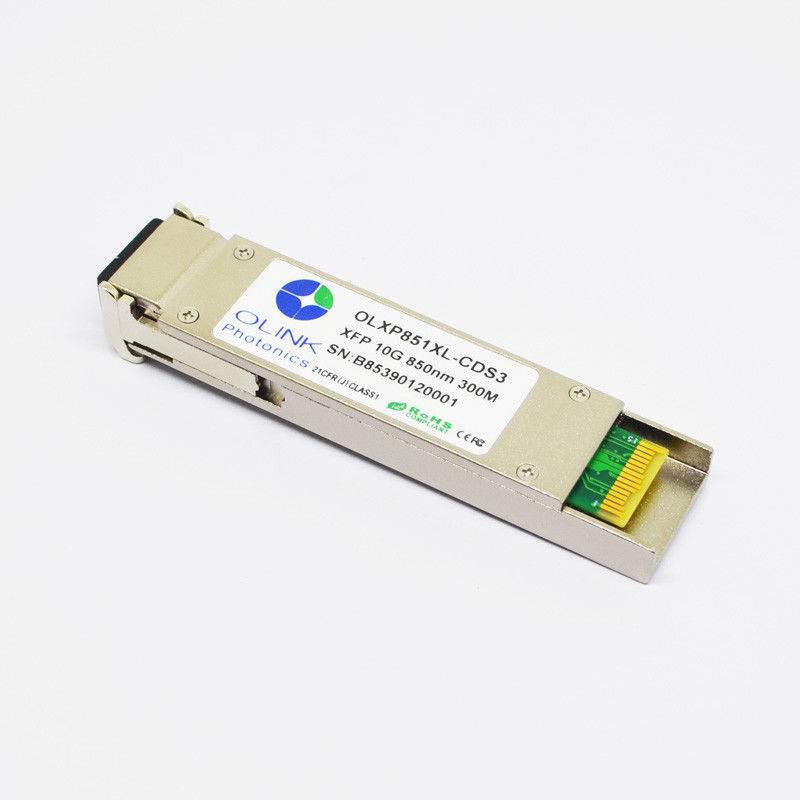

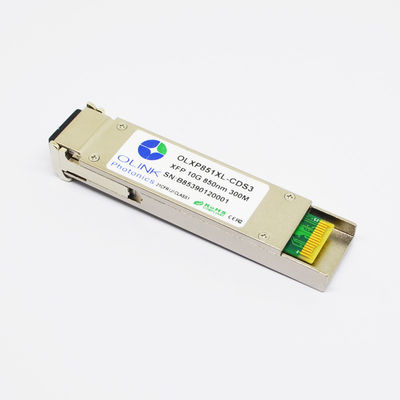

10G XFP SR 850nm 300m DOM LC MMF Customized XFP Optical Transceiver Module
Product Spotlights
1. Supports 9.95 to 11.3Gb/s bit rates
2. Duplex LC Connector
3. Hot-pluggable XFP footprint
4. 850nm heated VCSEL laser
5. Applicable for 300m MMF connection
6. Low power consumption, < 1.3W
7. Digital Diagnostic Monitor Interface
8. No Reference Clock required
9. Operating case temperature: Commerical:0 to 70 °C, Industrial:-40 to 85°C
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Ave. output power | PAVE | -6 | -1 | dBm | 1 | |
| Optical Modulation Amplitude | POMA | -2.8 | -1.5 | dB | OMA | |
| Extinction Ratio | ER | 3.5 | dB | |||
| RMS spectral width | Δλ | 0.45 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||
| Dispersion penalty | TDP | 3.9 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Tx Jitter | TJ | Compliant with IEEE 802.3ae | ||||
| Receiver | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Receiver Sensitivity | PSEN1 | -11.1 | dBm | 2 | ||
| Stressed Receiver Sensitivity | PSEN2 | -7.5 | dBm | 2 | ||
| Overload | Pmax | 0.5 | dBm | |||
| Receiver Reflectance | Rrx | -12 | dB | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -14 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER=4@10.3125G; BER<10-12; 231 – 1 PRBS.
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note | |
| Data Rate | DR | 9.95 | 11.3 | Gb/s | |||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | ||
| Supply Current | Icc5 | 400 | mA | ||||
| Operating Case Temp. | Tc | 0 | 70 | °C | |||
| TI | -40 | 85 | °C | ||||
| Maximum Supported Distances per 850nm OFL bandwidth Fiber | |||||||
| 62.5 μm | 160MHz-Km | Lmax | 26 | m | |||
| OM1 200MHz-Km | 33 | m | |||||
| 50μm | OM2 500MHz-Km | Lmax | 82 | m | |||
| OM3 2000MHz-Km | 300 | m | |||||
Electrical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) = -40 to 85℃ VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Differential data input swing | VIN,PP | 120 | 1000 | mVpp | ||
| Transmit Disable Voltage | VD | 2.0 | Vcc | V | 1 | |
| Transmit Enable Voltage | VEN | Vee | Vee+0.8 | |||
| Input differential impedance | Rin | 100 | Ω | 2 | ||
| Transmit Disable Assert Time | Tda | 10 | us | |||
| Receiver | ||||||
| Differential data output swing | Vout,pp | 340 | 850 | mVpp | 3 | |
| Output rise time and fall time | Tr, Tf | 40 | Ps | 4 | ||
| LOS Fault | VLOS_F | VCC-0.5 | Vcc | V | 5 | |
| LOS Normal | VLOS_N | Vee | Vee+0.5 | V | 5 | |
Notes:
1. Or open circuit.
2. After internal AC coupling.
3. Into 100 ohms differential termination.
4. 20 – 80 %.
5. Loss Of Signal is open collector to be pulled up with a 4.7k~ 10k resistor to 3.15 – 3.6V.
Logic 0,indicates normal operation; logic 1 indicates no signal detected.
Product Descriptions
Olinkcom's OLXP851XL-C(I)DS3 Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification, now available with Commerical Temperature Range of Operation(0 °C to 70°C) and Industrial Temperature Range of Operation (-40°C to +85°C). They comply with 10-Gigabit Ethernet 10GBASE-SR/SW per IEEE 802.3ae, 10G Fibre Channel request. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
