| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSP551XL-CD40 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ OC-192 Transceiver | Compatible OEM: | Intel |
|---|---|---|---|
| Speed Description: | 10-Gigabit | Form Type: | SFP+ |
| Wavelength: | 1550nm | Reach: | 40km |
| TX Power: | -2 ~ +3 DBm | Receiver Sensitivity: | < -16.0 DBm |
| DOM: | DOM | Operating Temperature: | 0-70°C, -40-85°C |
| High Light: | 10gb SFP+ Optical Transceiver,10GBASE SFP+ Optical Transceiver,10GBASE-ER/OC-192 |
||

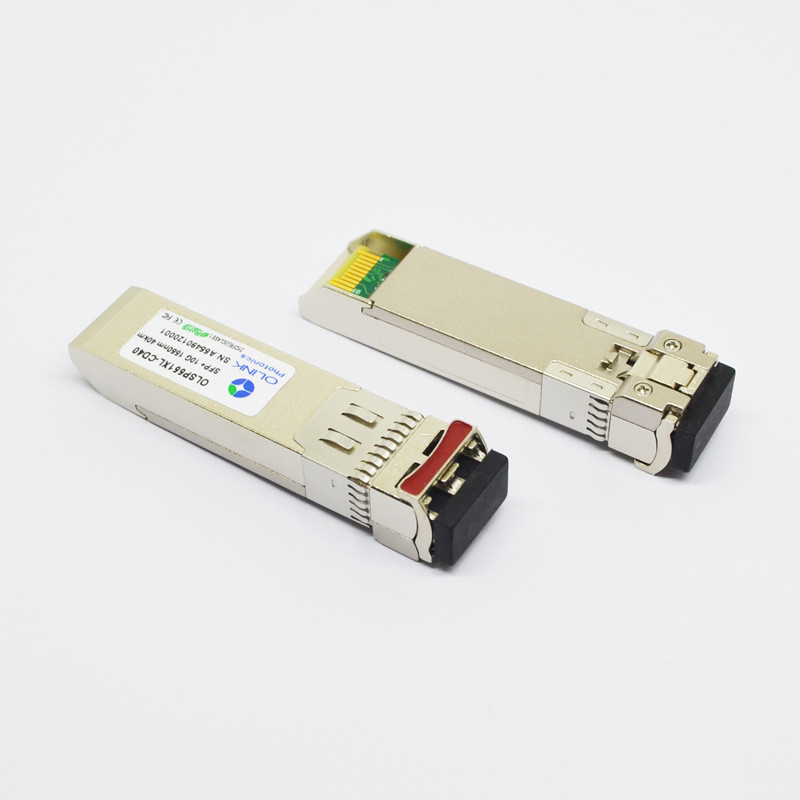

Intel Compatible 10G SFP+ Optical Transceiver 1550nm 10GBASE-ER/OC-192
Intel Compatible 10GBASE-ER/OC-192 IR-2 SFP+ Transceiver
The Intel 10GBASE-ER compatible transceiver provides a high performance and cost-effective solution for 10.3125Gbps (10GBASE-ER) or 9.953Gbps (10GBASE-EW) fiber connectivity over single-mode optical cable. It is programmed to be suitable for use with Intel 10-Gigabit Ethernet Switches, Security gateway appliances and Network Adapters.
● SFP+ Form factor compliant with SFP+ MSA SFF-8431 and SFF-8461 standard
● Hot-swappable input/output device plugs into 10 Gigabit Ethernet SFP+ port
● Digital optical monitoring (DOM) capability for diagnostics
● Supports up to 11.3Gb/s bit rates
● Intel Compatible
● Up to 40km Reach
● 1550nm Wavelength
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1530 | 1570 | nm | ||
| Ave. output power (Enabled) | PAVE | -2 | 4 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 4 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Dispersion penalty | TDP | 4 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 1260 | 1600 | nm | |||
| Receiver Sensitivity @10.3G | -16 | dBm | 2 | |||
| Path Penalty | PP | 2 | dB | |||
| Overload | PAVE | +0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -18 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured with worst ER=5dB
2. PRBS 231 – 1 and BER<10-12.
Digital Diagnostic Specifications
The OLSP551XL-C(I)D40 transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.
| Parameter | Symbol | Units | Min. | Max. | Accuracy | Note |
| Transceiver temperature | DTemp-E | ºC | -45 | +90 | ±5ºC | 1,2 |
| Transceiver supply voltage | DVoltage | V | 2.8 | 4.0 | ±3% | |
| Transmitter bias current | DBias | mA | 0 | 80 | ±10% | 3 |
| Transmitter output power | DTx-Power | dBm | -3 | +5 | ±2dB | |
| Receiver average input power | DRx-Power | dBm | -17 | 0 | ±2dB |
Notes:
1.When Operating temp.=0~70 ºC,the range will be min=-5,Max=+75
2. Internally measured
3. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser
Application
● 10GbE Switches, Routers, and network card
● 10GBASE-ER/EW
● 10G Fiber Channel
● Other optical links
