| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSP551XL-CD40 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G ER SFP+ | Compatible OEM: | Dell |
|---|---|---|---|
| Speed: | 10Gbps | Form Factor: | SFP+ |
| Wavelength: | 1550nm | Reach: | 40km |
| Media: | SMF | Connector: | LC |
| DOM: | DOM | Temperature: | 0-70°C |
| High Light: | 10G SFP+ ER,40km 10G SFP+,SFP+ ER Transceiver |
||

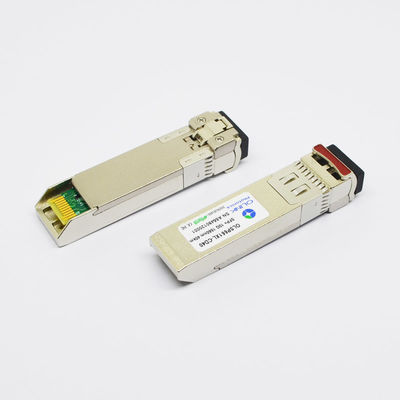

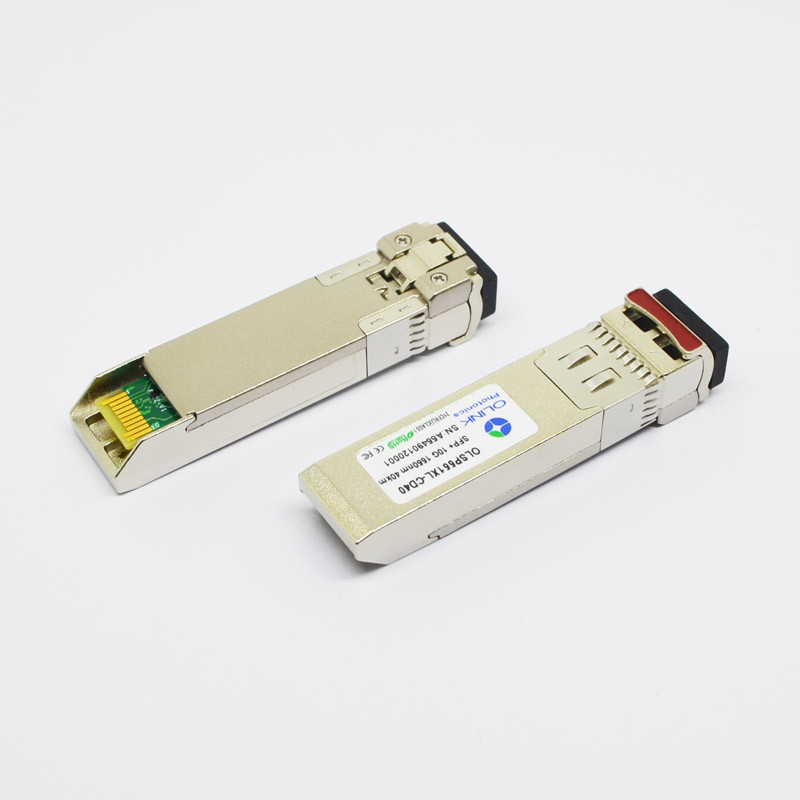

Telecommunication 1550nm 40km 10G SFP+ ER Transceiver Module DOM SMF Dell Compatible
Dell Compatible 10G ER SFP+ (SMF, 1550nm, 40km, DOM, LC)
Product Descriptions
The SFP+ 10GBase-ER is a 10G ER single-mode multi-rate SFP+ transceiver using 1550nm wavelength and reaching up to 40km distance. They can be used for 10 Gigabit Ethernet and Fibre Channel. The transceivers follow the industry standards of SFP Multi-Source Agreement (MSA) and SFF-8472, making them directly interchangeable with any networking device following industry standards.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1530 | 1570 | nm | ||
| Ave. output power (Enabled) | PAVE | -2 | 4 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 4 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Dispersion penalty | TDP | 4 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 1260 | 1600 | nm | |||
| Receiver Sensitivity @10.3G | -16 | dBm | 2 | |||
| Path Penalty | PP | 2 | dB | |||
| Overload | PAVE | +0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -18 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured with worst ER=5dB
2. PRBS 231 – 1 and BER<10-12
Digital Diagnostic Specifications
The OLSP551XL-C(I)D40 transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.
| Parameter | Symbol | Units | Min. | Max. | Accuracy | Note |
| Transceiver temperature | DTemp-E | ºC | -45 | +90 | ±5ºC | 1,2 |
| Transceiver supply voltage | DVoltage | V | 2.8 | 4.0 | ±3% | |
| Transmitter bias current | DBias | mA | 0 | 80 | ±10% | 3 |
| Transmitter output power | DTx-Power | dBm | -3 | +5 | ±2dB | |
| Receiver average input power | DRx-Power | dBm | -17 | 0 | ±2dB |
Notes:
1.When Operating temp.=0~70 ºC,the range will be min=-5,Max=+75
2. Internally measured
3. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser
Olinkcom's Dell Compatible 10GBASE-ER SFP+ transceiver can be worked with the below Dell equipment.
FAQ
1. How about the warranty ?
All of our products are 3 years warranty (The return and change service within 1 year, repair within 2 years)
2. What is your terms of delivery?
EXW, FOB, DAP ... is available, you can contact with us for more details
| Related Products | |||
| PART NO. | DATA RATE | WAVELENGTH | DISTANCE |
| OLSP851XL-CDS3 | 10Gbps | 850nm | 300m |
| OLSP311XL-CD02 | 10Gbps | 1310nm | 2km |
| OLSP311XL-CD10 | 10Gbps | 1310nm | 10km |
| OLSP311XL-CD20 | 10Gbps | 1310nm | 20km |
| OLSP311XL-CD10S | 10Gbps | 1310nm | 40km |
| OLSP551XL-CD80 | 10Gbps | 1550nm | 80km |
| OLSP551XL-CDH1 | 10Gbps | 1550nm | 100km |
