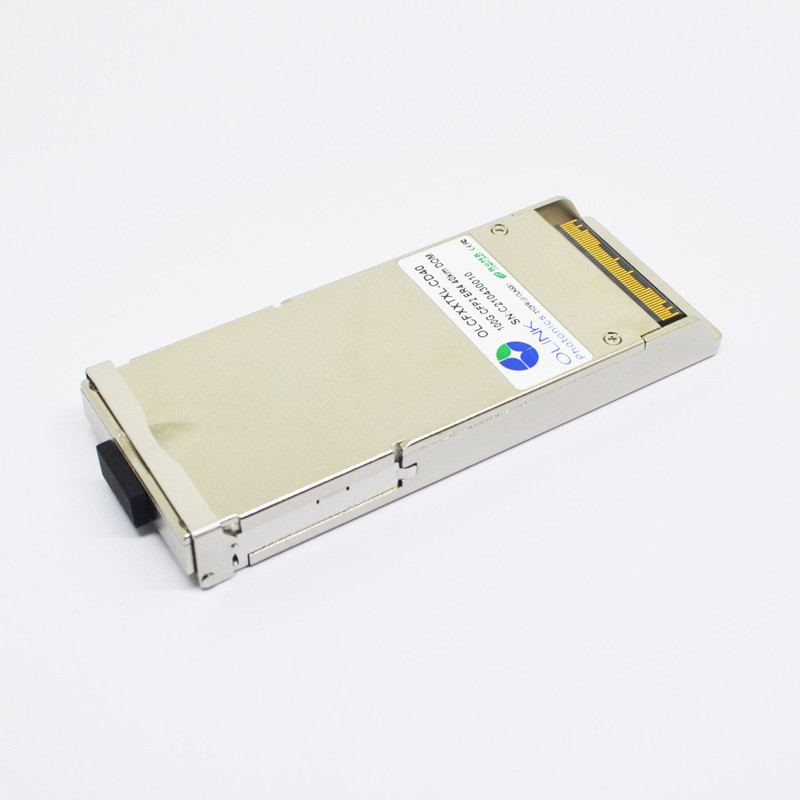

Extreme Compatible CFP2 Optical Transceiver ER4 Lite LAN-WDM 30km

Basic Information
Place of Origin: SZ China
Brand Name: OLKOPTO
Certification: ISO9001,ISO14001,OHSAS18001
Model Number: OLCFxxTXL-CD1(3)0R
Minimum Order Quantity: 1pcs
Packaging Details: Individual package OR 10 pcs/ pallet OR 20 pcs/ pallet
Delivery Time: 3-5 working days
Payment Terms: TT/Net 30days
Supply Ability: 80-100k per month
Part Number: OLCFxxTXL-CD1(3)0R Data Rate: 100G
Wavelength: LAN-WDM Distance: 30km
Compatible: Extreme Low Power Consumption: < 3W
High Light:

ER4 CFP2 Optical Transceiver

,

30km CFP2 Optical Transceiver

,

30km 100g cfp2

Extreme Compatible CFP2 Optical Transceiver ER4 Lite LAN-WDM 30km



Extreme 100% 100GBASE-LR4 Compatible CFP2 ER4 Lite LAN-WDM 30km Optical Transceiver



Product Features

● Supports up to 112Gbps bit rates

● Duplex LC connector

● Hot pluggable

● PIN or APD ROSA

● Operating electrical serial data rate up to 27.952493Gbps

● 4parallel electrical serial interface

● Applicable for 10km(PIN) or 30km(APD) SMF connection

● Low power consumption, < 3W

● Digital Diagnostic Monitor Interfacel

● MDIO Communication Interface

● Compliant with 100GBASE-LR4,ER4 and OTU4

● Operating case temperature:

Commerical:0 to 70 °C



Applications

● Local Area Network(LAN)

● Wide Area Network(WAN)

● Switch to router interface

● ITU-T OTU4 OTL4.4



Standards

● Compliant with IEEE 802.3ba

● Compliant with CFP2 MSA hardware specifications

● Compliant with CFP2 MSA management specifications

● Compliant with ITU-T G709/Y.1331

● Compliant with RoHS



Functional Description

● Olinkcom’s OLCFXXTXL-CD1(3)0R, 100G CFP2 LR4 or ER4 optical receiver integrates the 4 receive paths onto one module.

● On the receive side, 4 lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer.

● Each data steam is recovered by a PIN photodetector or APD and transimpedance amplifier, retimed, and passed on to an output driver.

● This module features a hot-pluggable electrical interface, low power consumption, and MDIO management interface.



Optical Characteristics

(Tested under recommended operating conditions,unless otherwise noted)

Parameter Symbol Unit Min Typ Max Notes
Optical Receiver Characteristics
Receive Rate for Each Lane   Gbps   25.78125 27.9525
Overload Input Optical Power Pmax dBm 5.5     3

Average Receive Power for Each

Lane

Pin dBm -8.6 + ∆   3 4, 5

Receive Power In OMA for Each

Lane

PinOMA dBm     3

Difference in Receive Power in

OMA between Any Two Lanes

  dBm

Receiver Sensitivity in OMA for

Each Lane (PIN)

SOMA1 dBm     -8.6 6

Receiver Sensitivity in OMA for

Each Lane (APD)

SOMA2 dBm     -16 6

Stressed Receiver Sensitivity in

OMA for Each Lane(PIN)

  dBm     -6.8 7, 8

Stressed Receiver Sensitivity in

OMA for Each Lane(APD)

        -13 7, 8





More details of our products:

High Reliable Optical Components and Excellent Design

1.DLB laser and PIN photodiode

2.Thick Gold Finger



3.Plating Hard Gold Shell



Cost-effective and Reliable Transmission



Comprehensive Performance Test with our Advanced Equipment
  • Certified and tested on the automatic quality control system, to ensure the high performance in the actual working environment.Fully Tested for compatibility in our matched switches.

Our Packing & Labeling:

  • Anti-static box
  • Individual package
  • 10pcs/pallet
  • 20pcs/pallet

Our mission is to provide cost effective optical transceiver SFP, SFP+,DAC, QSFP etc with 100% reliable quality, quick lead-time and great after sale service!



Our all modules have 3 years warranty
