| Part Number: | OLCFxxTXL-CD1(3)0R | Data Rate: | 100G |
|---|---|---|---|
| Wavelength: | LAN-WDM | Distance: | 30km |
| Compatible: | Arista | DDM/DOM: | Yes |
| High Light: | 30km cfp optical module,30km 100g cfp optical module,CFP2 ER4 |
||

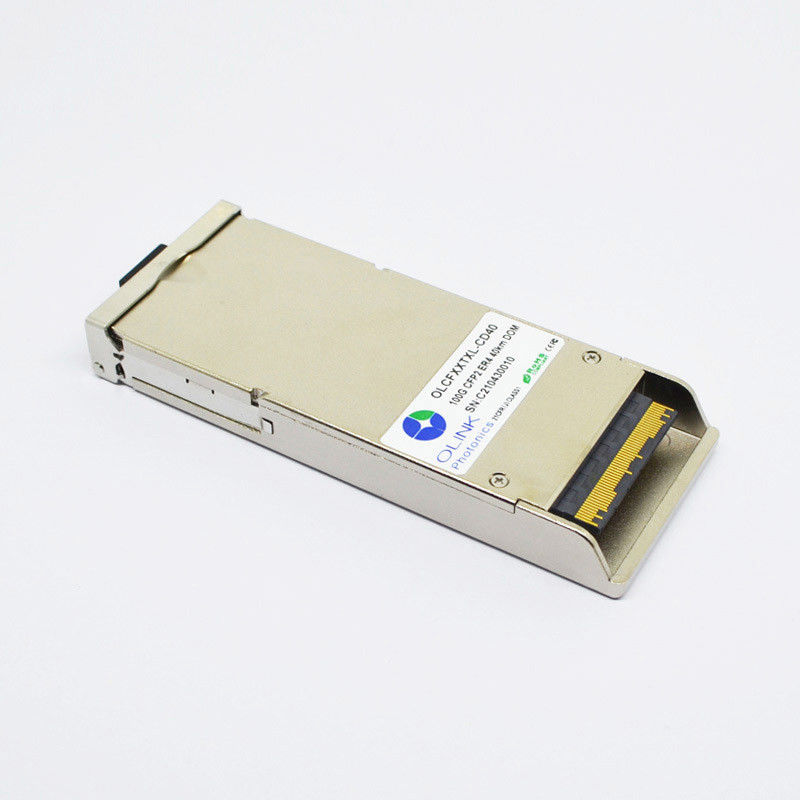

CFP2 ER4 30km 100g Cfp Optical Module LAN WDM DOM Single Mode Fiber
Arista Networks 100GBASE-ER4 Compatible CFP2 ER4 Lite LAN-WDM SMF 30km DOM
Product Features
● Supports up to 112Gbps bit rates
● Duplex LC connector
● Hot pluggable
● PIN or APD ROSA
● Operating electrical serial data rate up to 27.952493Gbps
● 4parallel electrical serial interface
● Applicable for 10km(PIN) or 30km(APD) SMF connection
● Low power consumption, < 3W
● Digital Diagnostic Monitor Interfacel
● MDIO Communication Interface
● Compliant with 100GBASE-LR4,ER4 and OTU4
● Operating case temperature:
Commerical:0 to 70 °C
Applications
● Local Area Network(LAN)
● Wide Area Network(WAN)
● Switch to router interface
● ITU-T OTU4 OTL4.4
Standards
● Compliant with IEEE 802.3ba
● Compliant with CFP2 MSA hardware specifications
● Compliant with CFP2 MSA management specifications
● Compliant with ITU-T G709/Y.1331
● Compliant with RoHS
Functional Description
Olinkcom’s OLCFXXTXL-CD1(3)0R, 100G CFP2 LR4 or ER4 optical receiver integrates the 4 receive paths onto one module. On the receive side, 4 lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector or APD and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and MDIO management interface.
Optical Characteristics
(Tested under recommended operating conditions,unless otherwise noted)
| Parameter | Symbol | Unit | Min | Typ | Max | Notes | |||
| Optical Receiver Characteristics | |||||||||
| Receive Rate for Each Lane | Gbps | 25.78125 | 27.9525 | ||||||
| Overload Input Optical Power | Pmax | dBm | 5.5 | 3 | |||||
|
Average Receive Power for Each Lane |
Pin | dBm | -8.6 + ∆ | 3 | 4, 5 | ||||
|
Receive Power In OMA for Each Lane |
PinOMA | dBm | 3 | ||||||
|
Difference in Receive Power in OMA between Any Two Lanes |
dBm | ||||||||
|
Receiver Sensitivity in OMA for Each Lane (PIN) |
SOMA1 | dBm | -8.6 | 6 | |||||
|
Receiver Sensitivity in OMA for Each Lane (APD) |
SOMA2 | dBm | -16 | 6 | |||||
|
Stressed Receiver Sensitivity in OMA for Each Lane(PIN) |
dBm | -6.8 | 7, 8 | ||||||
|
Stressed Receiver Sensitivity in OMA for Each Lane(APD) |
-13 | 7, 8 | |||||||
