| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSP551XL-CD40 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ ER | Data Rate: | 10-Gigabit |
|---|---|---|---|
| Form Factor: | SFP+ | Wavelength: | 1550nm |
| Distance: | 40km | Compatibility: | Mikrotik |
| Transmitter Power: | -2 ~ 3 DBm | Receiver Sensitivity: | < -16 DBm |
| Optical Optical Components: | EML/PIN | Digital Diagnostic Monitoring: | YES |
| High Light: | 10gb SFP+ Sr Transceiver,40km SFP+ Sr Transceiver,1550nm 10g sfp+ er |
||

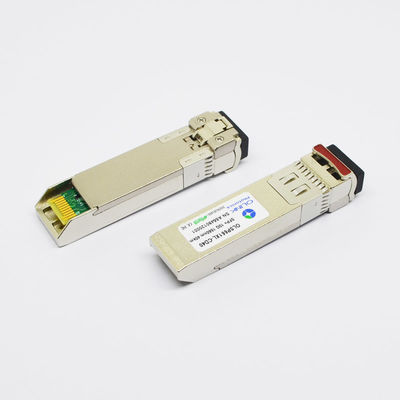

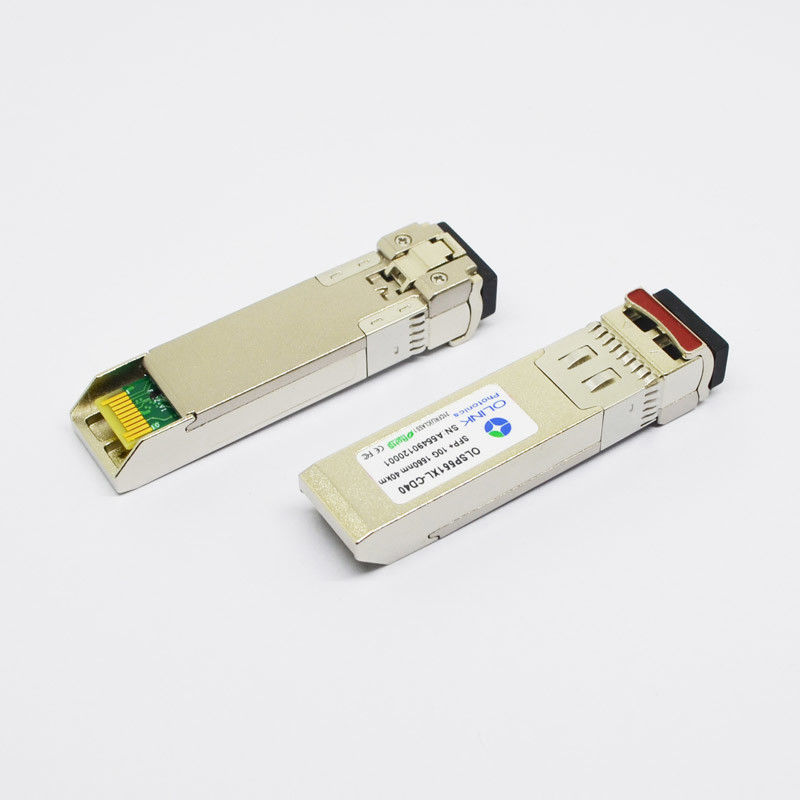

1550nm 40km 10gb SFP+ Sr Transceiver SMF For Ethernet Switches
MikroTik S+55DLC40D Compatible 10GBASE-ER SFP+ 1550nm 40km Transceiver
Oinkcom's SFP+ ER transceivers provide 10GBase-ER throughput up to 40km over single-mode fiber (SMF) using a wavelength of 1550nm via a LC connector. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters.
Product Features
1. Hot pluggable
2. 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER
3. Distance up to 40km on single mode fiber
4. Part number and unique product serialization
5. Duplex LC connector
6. Digital Diagnostic Monitor Interface
7. 100% Guaranteed Compatibility
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 9.953 | 10.3125 | 11.3 | Gb/s | |
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 400 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Digital Diagnostic Specifications
The OLSP551XL-C(I)D40 transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.
| Parameter | Symbol | Units | Min. | Max. | Accuracy | Note |
| Transceiver temperature | DTemp-E | ºC | -45 | +90 | ±5ºC | 1,2 |
| Transceiver supply voltage | DVoltage | V | 2.8 | 4.0 | ±3% | |
| Transmitter bias current | DBias | mA | 0 | 80 | ±10% | 3 |
| Transmitter output power | DTx-Power | dBm | -3 | +5 | ±2dB | |
| Receiver average input power | DRx-Power | dBm | -17 | 0 | ±2dB |
Notes:
1. When Operating temp.=0~70 ºC,the range will be min=-5,Max=+75
2. Internally measured
3. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser
• CCR1036-12G-4S
• CCR1036-8G-2S+
• CCR1009-8G-1S-1S+
• CCR1016-12S-1S+
• CCR1016-12G
• CRS125-24G-1S Gigabit Ethernet layer 3 Smart Switch
• CRS226-24G-2S+ Gigabit Ethernet Smart Switch
• CRS210-8G-2S+ Gigabit Smart Switch
FAQ
1. How about the warranty ?
All of our products are 3 years warranty (The return and change service within 1 year, repair within 2 years)
2. What is your terms of delivery?
EXW, FOB, DAP ... is available, you can contact with us for more details
