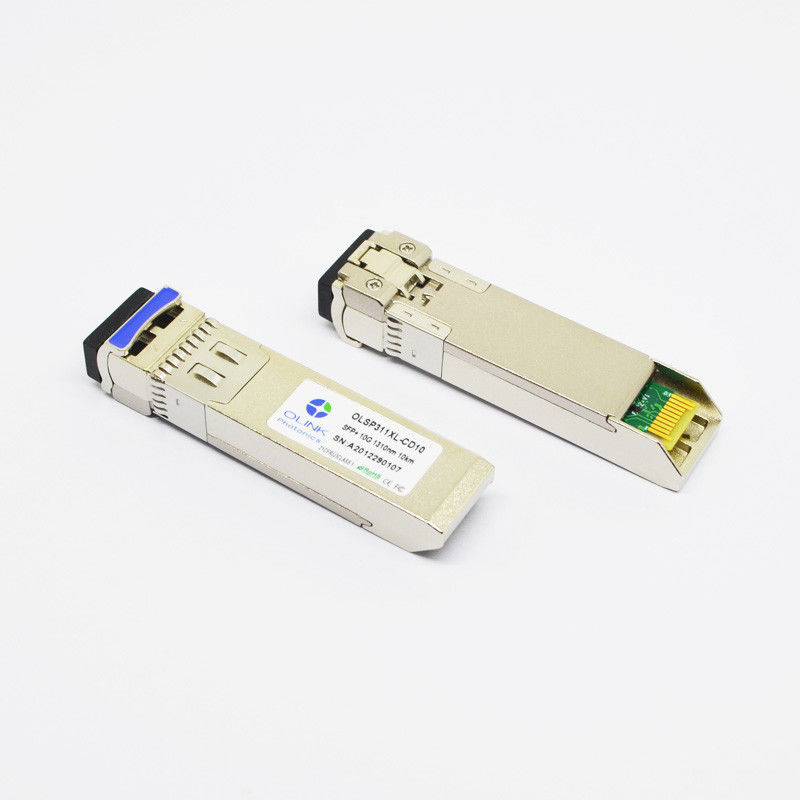

Cisco SFP-10G-LR Compatible SFP+ Transceiver (SMF, 1310nm, 10km, DOM, LC)

Basic Information
Place of Origin: China
Brand Name: OLKOPTO
Certification: CE, RoHS, FCC, FDA, UL, EMC, ISO9001
Model Number: OLSP311XL-CD10
Minimum Order Quantity: 1 pc
Price: negotiable
Packaging Details: 10pcs/ foil bag
Delivery Time: 3-6 working days
Payment Terms: T/T
Supply Ability: 80-120k per month
Product Name: 10G SFP+ 1310nm 10km Data Rate: 10-Gigabit
Form Factor: SFP+ Wavelength: 1310nm
Distance: 10km Compatibility: Cisco
TX Power: -6 ~ 0 DBm Receiver Sensitivity: < -14.4 DBm
Function Options: DOM Operating Temperature: 0-70°C, -40-85°C

Cisco SFP-10G-LR Compatible SFP+ Transceiver (SMF, 1310nm, 10km, DOM, LC)



Product Features

1. Hot pluggable
2. 10Gb/s serial optical interface
3. Up to 10km on SMF
4. SFP MSA package with duplex LC connector
5. Digital Diagnostic Monitor Interface
6. Very low EMI and excellent ESD protection
7. High transmission margin
8. +3.3V single power supply
9. CISCO and main brands coding available



Electrical Characteristics (TOP(C) = 0 to 70 , TOP(I) =-40 to 85 ,VCC = 3.13 to 3.47 V)

Parameter Symbol Min. Typ Max. Unit Note
Transmitter
Differential data input swing VINPP 180   700 mVpp 1
Transmit Disable Voltage VD VCC-0.8   Vcc V
Transmit Enable Voltage VEN Vee   Vee+0.8
Input differential impedance Rin   100   Ω
Receiver
Differential data output swing Vout,pp 300   850 mVpp 2
Output rise time and fall time Tr, Tf 28     Ps 3
LOS asserted VLOS_F VCC-0.8   Vcc V 4
LOS de-asserted VLOS_N Vee   Vee+0.8 V 4

Note:

1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.

2. Into 100Ω differential termination.

3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an acceptable alternative.

4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.





Optical Characteristics (TOP(C) = 0 to 70 , TOP(I) =-40 to 85 ,VCC = 3.13 to 3.47 V)

Parameter Symbol Min. Typ Max. Unit Note
Transmitter
Operating Wavelength λ 1260 1310 1355 nm
Ave. output power (Enabled) PAVE -6   0 dBm 1
Side-Mode Suppression Ratio SMSR 30     dB
Extinction Ratio ER 4 4.5   dB
RMS spectral width Δλ     1 nm
Rise/Fall time (20%~80%) Tr/Tf     50 ps
Dispersion penalty TDP     3.2 dB
Relative Intensity Noise RIN     -128 dB/Hz
Output Optical Eye Compliant with IEEE 0802.3ae
Receiver
Operating Wavelength   1270   1600 nm
Receiver Sensitivity PSEN2     -14.4 dBm 2
Overload PAVE     0.5 dBm
LOS Assert Pa -30     dBm
LOS De-assert Pd     -18 dBm
LOS Hysteresis Pd-Pa 0.5     dB



Notes:

1. Average power figures are informative only, per IEEE 802.3ae.

2. Measured at the BER less than 1E-12, back to back. The measure pattern is PRBS 231-1 with worst ER=4.5@ 10.3125Gb/s.



Product Descriptions

Olinkcom's OLSP311XL-CD10 is designed for 10Gb/s serial optical interfaces for data communications with single mode fiber (SMF) 1310nm. The transceiver can support 1.25 Gb/s to 11.1Gb/s. It is designed to optimize high performance and it is costly effective for customers’ solution in datacom.



Applications

● 10G Base-SR/SW at 10.3125G

● 10G Fiber Channel

● Other optical links

● 10G Ethernet



Compatibility

• Cisco 2360-48TD-S
• Cisco 3100 WS-CBS3110X-S-I
• Cisco 3100 WS-CBS3120X-S
• Cisco 3100 WS-CBS3130X-S
• Cisco 4500 WS-X4013+10GE
• Cisco 4500 WS-X4516-10GE
• Cisco 4500 WS-X45-SUP6-E
• Cisco 4500 WS-X45-SUP6L-E
• Cisco 4500 WS-X45-SUP7-E
• Cisco 4500 WS-X45-SUP7L-E
• Cisco 4500 WS-X45-SUP8-E
• Cisco 4500 WS-X45-SUP8L-E
• Cisco 4500 WS-X4606-X2-E
• Cisco 4500 WS-X4712-SFP+E
• Cisco 4900 ME-4924-10GE
• Cisco 4900 WS-C4928-10GE
• Cisco 4900 WS-C4948-10GE
• Cisco 4900 WS-C4948E



• Cisco Nexus 7000 N7K-F248XP-25E
• Cisco Nexus 7000 N7K-M108X2-12L
• Cisco Nexus 7000 N7K-M132XP-12
• Cisco Nexus 7000 N7K-M132XP-12L
• Cisco Nexus 7000 N7K-M224XP-23L
• Cisco Nexus 9000 N9K-C92160YC-X
• Cisco Nexus 9000 N9K-C9372PX
• Cisco Nexus 9000 N9K-C9372PX
• Cisco Nexus 9000 N9K-C9372PX-E
• Cisco Nexus 9000 N9K-C9372PX-E
• Cisco Nexus 9000 N9K-C9396PX
• Cisco Nexus 9000 N9K-C9396PX
• Cisco Nexus 9000 N9K-X9464PX
• Cisco Nexus 9000 N9K-X9564PX
• Cisco UCSB-5108-AC2
• Cisco UCS-FI-6248UP
• Cisco UCS-FI-6296UP
• Cisco UCS-FI-6324UP
