| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSP311XL-CD10 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10GBASE-LR SFP+ | Data Rate: | 10Gbps |
|---|---|---|---|
| Form Factor: | SFP+ | Wavelength: | 1310nm |
| Distance: | 10km | Compatibility: | Mellanox |
| TX Power: | -6 ~ 0 DBm | Receiver Sensitivity: | < -14.4 DBm |
| Function Options: | DOM | Operating Temperature: | 0-70°C, -40-85°C |
| High Light: | 10Gbps SFP+ Optical Transceiver,DOM SFP+ Optical Transceiver,10gbase lr sfp+ |
||

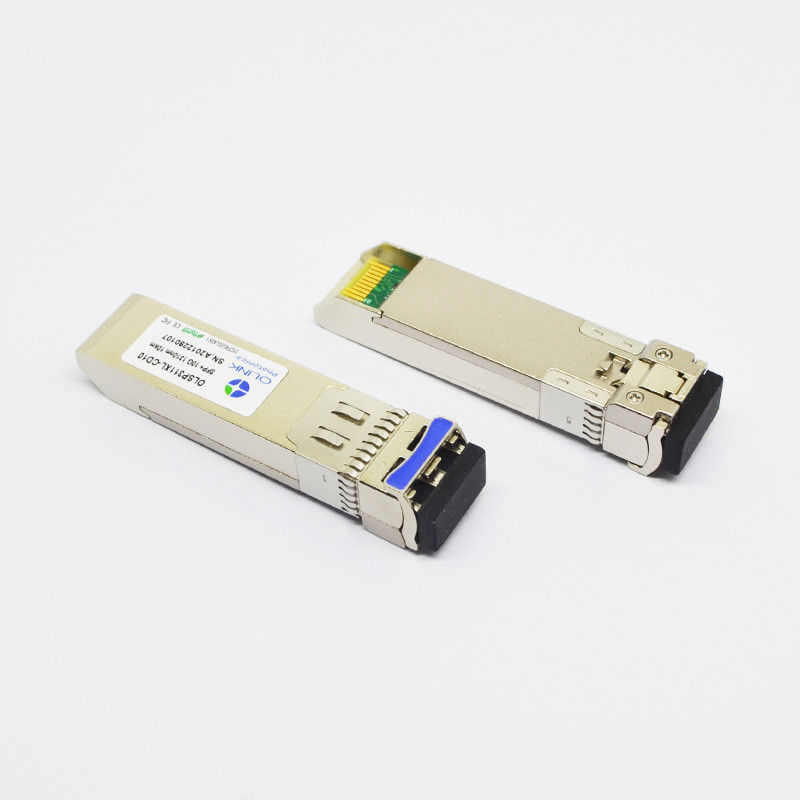

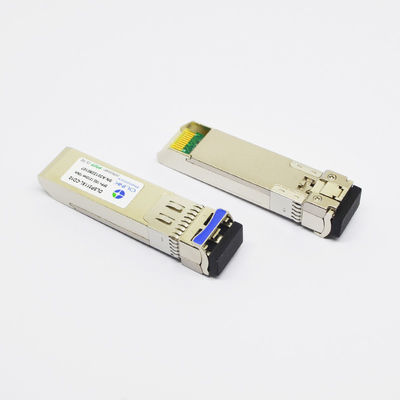

Mellanox Compatible 10G SFP+ Optical Transceiver 10GBASE-LR For SONET
The SFP+ 10GBASE-LR is a 10G LR single-mode SFP+ transceiver using 1310nm wavelength and reaching up to 10km distance. They can be used for 10G Ethernet, SONET or SDH networks. The transceivers follow the industry standards of SFP Multi-Source Agreement (MSA) and SFF-8472, making them directly interchangeable with any networking device following industry standards.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1260 | 1310 | 1355 | nm | |
| Ave. output power (Enabled) | PAVE | -6 | 0 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 4 | 4.5 | dB | ||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||
| Dispersion penalty | TDP | 3.2 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 1270 | 1600 | nm | |||
| Receiver Sensitivity | PSEN2 | -14.4 | dBm | 2 | ||
| Overload | PAVE | 0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -18 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured at the BER less than 1E-12, back to back. The measure pattern is PRBS 231-1 with worst ER=4.5@ 10.3125Gb/s.
Digital Diagnostic Specifications
The OLSP311XL-C(I)D10 transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.
| Parameter | Symbol | Units | Min. | Max. | Accuracy | Note |
| Transceiver temperature | DTemp-E | ºC | -45 | +90 | ±5ºC | 1,2 |
| Transceiver supply voltage | DVoltage | V | 2.8 | 4.0 | ±3% | |
| Transmitter bias current | DBias | mA | 2 | 80 | ±10% | 3 |
| Transmitter output power | DTx-Power | dBm | -8 | +2 | ±2dB | |
| Receiver average input power | DRx-Power | dBm | -16 | 0 | ±2dB |
Notes:
1. When Operating temp.=0~70 ºC,the range will be min=-5,Max=+75
2. Internally measured
3. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser
Product Descriptions
Olinkcom’s OLSP311XL-CD10 is an Enhanced Small Form-factor Pluggable (SFP+) transceiver module with maximum data transfer rate of 10 Gbps up to 10km over singlemode fiber cable. It is used in compatible network devices with SFP slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Applications
● 10GBASE-LR/10GBASE-LW Ethernet
● 10G Fiber Channel
● SONET, SDH networks
