| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSP311XL-CD10 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ 1310nm 10km | Compatible OEM: | Intel |
|---|---|---|---|
| Speed Description: | 10-Gigabit | Form Type: | SFP+ |
| Wavelength: | 1310nm | Reach: | 10km |
| TX Power: | -6 ~ 0 DBm | Receiver Sensitivity: | < -14.4 DBm |
| DOM: | DOM | Operating Temperature: | 0-70°C, -40-85°C |
| Highlight: | 10G SFP+ Optical Transceiver,FCC 10G SFP+ Optical Transceiver,10km sfp 10g single mode |
||

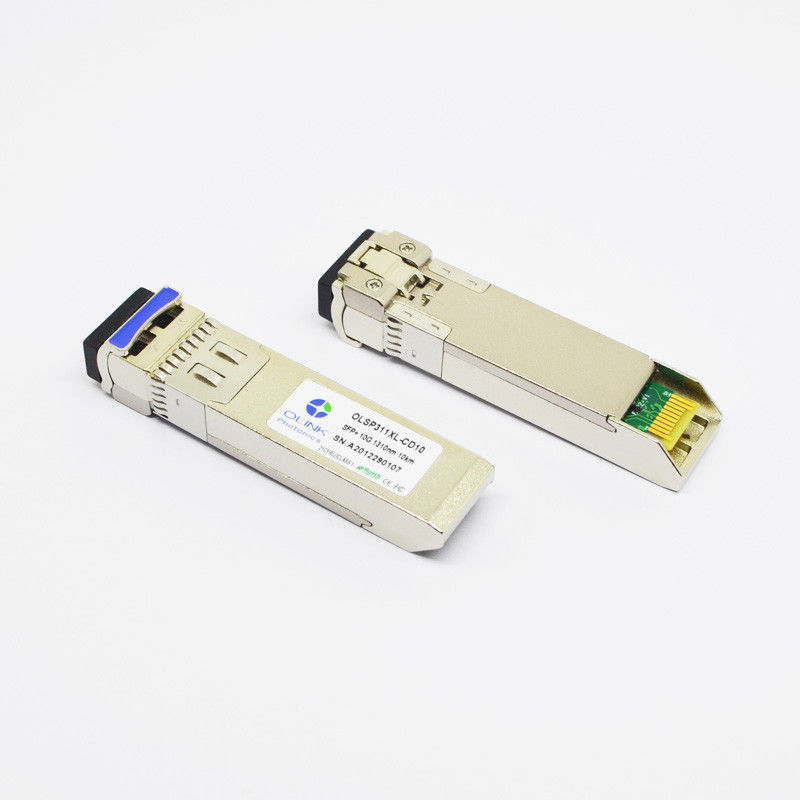

10GBASE-LR 10G SFP+ Optical Transceiver 1310nm 10km Single Mode
Intel E10GSFPLR Compatible 10GBASE-LR SFP+ 1310nm 10km Transceiver
This 10GbE SFP+ LR module is suitable for use with Intel networking systems. It supports data-rate of 10.3125Gbps (10GBASE-LR) or 9.953Gbps (10GBASE-LW), providing fiber connectivity up to 10km on single mode fiber. The module is programmed and tested to ensure working with Intel 10 Gigabit switches, servers, and other platforms.
● 10Gb/s serial optical interface
● Duplex LC connector
● Hot pluggable SFP+ footprint
● Compliant with SFP+MSA
● Uncooled 1310nm DFB transmitter, PIN photo-detector
● Applicable for 10km SMF connection
● Low power consumption, < 1W
● Digital Diagnostic Monitor Interface
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | 9.953 | 10.3125 | 11.3 | Gb/s | ||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 300 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1260 | 1310 | 1355 | nm | |
| Ave. output power (Enabled) | PAVE | -6 | 0 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 4 | 4.5 | dB | ||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||
| Dispersion penalty | TDP | 3.2 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 1270 | 1600 | nm | |||
| Receiver Sensitivity | PSEN2 | -14.4 | dBm | 2 | ||
| Overload | PAVE | 0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -18 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured at the BER less than 1E-12, back to back. The measure pattern is PRBS 231-1 with worst ER=4.5@ 10.3125Gb/s.
Applications
● 10GBASE-LR/10GBASE-LW Ethernet
● 10G Fibre Channel
● 10G Data Center Switches and Routers
● 10G Network interface cards and Fiber Media Converters
● LTE systems
● Other Optical Links
The OLSP311XL-CD10 is a Class 1 laser product. It fully complies with the multi-sourcing agreement (MSA) which enables it to work in all MSA compliant platforms. OLSP311XL-CD10 must be operated within the specified temperature and voltage limits. The optical ports of the module shall be terminated with an optical connector or with a dust plug.
