| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSP311XL-CD10 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ 1310nm 10km | Data Rate: | 10Gbps |
|---|---|---|---|
| Form Factor: | SFP+ | Fiber Type: | SMF |
| Wavelength: | 1310nm | Distance: | 10km |
| Compatibility: | TP-Link | TX Power: | -6 ~ 0 DBm |
| Receiver Sensitivity: | < -14.4 DBm | DOM: | DOM |
| High Light: | 10km 10G SFP+ Optical Transceiver,SMF 10G SFP+ Optical Transceiver,SMF 10gb sfp |
||

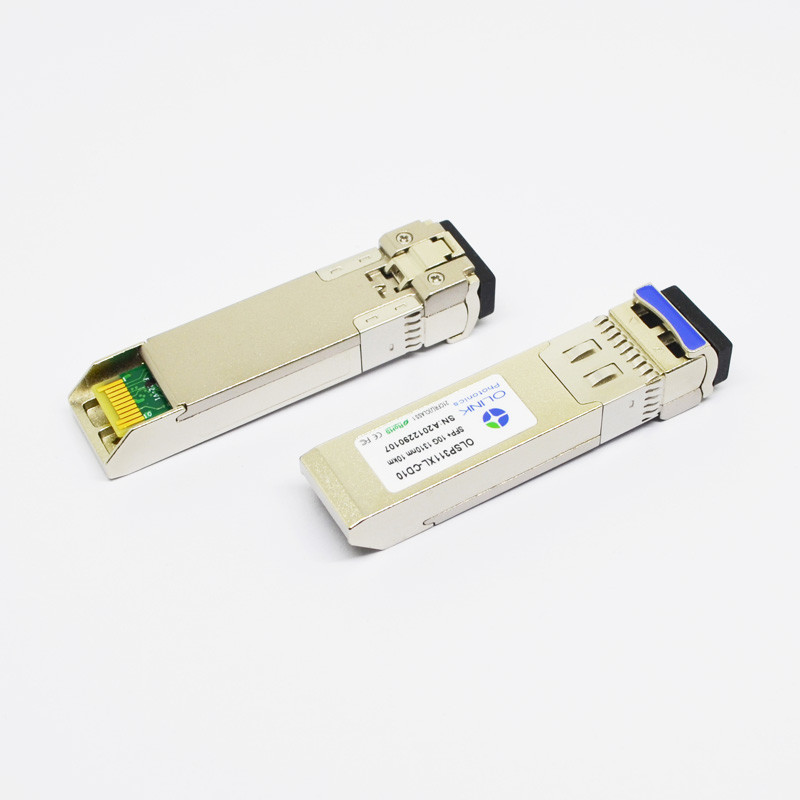

SMF 1310nm 10km 10G SFP+ Optical Transceiver TP-Link Compatible
TP-Link TXM431-LR Compatible 10GBASE-LR SFP+ 1310nm 10km Transceiver
OLSP311XL-CD10 adopts a LC interface and are compatible with IEEE802.3ae, SFF-8472, SFF-8431 and other standards. SFP+ 10G optical transceivers have the characteristics of low power consumption, small size, and high speed. They are most commonly used in Data Centers, Wireless, Transmission, and other environments.
• Up to 11.1Gbps Data Links
• Up to 10km transmission on SMF
• VSCEL laser and PIN receiver
• Metal enclosure, for lower EMI
• 2-wire interface with integrated Digital Diagnostic monitoring
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | 9.953 | 10.3125 | 11.3 | Gb/s | ||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 300 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Digital Diagnostic Specifications
The OLSP311XL-C(I)D10 transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.
| Parameter | Symbol | Units | Min. | Max. | Accuracy | Note |
| Transceiver temperature | DTemp-E | ºC | -45 | +90 | ±5ºC | 1,2 |
| Transceiver supply voltage | DVoltage | V | 2.8 | 4.0 | ±3% | |
| Transmitter bias current | DBias | mA | 2 | 80 | ±10% | 3 |
| Transmitter output power | DTx-Power | dBm | -8 | +2 | ±2dB | |
| Receiver average input power | DRx-Power | dBm | -16 | 0 | ±2dB |
Notes:
1. When Operating temp.=0~70 ºC,the range will be min=-5,Max=+75
2. Internally measured
3. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser
• T1700G-28TQ: JetStream 24-Port Gigabit Stackable Smart Switch with 4 10GE SFP+ Slots
• T2700G-28TQ: JetStream 28-Port Gigabit Stackable L2+ Managed Switch
• T3700G-28TQ: JetStream 28-Port Gigabit Stackable L3 Managed Switch
We make sure our transceivers are tested rigorously by Certified technicians, and cover each item by 3 years warranty. Contact us for more information and configuration support on the SFP-10G-SR
