| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSP851XL-C(I)DS3 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product: | 10G SFP+ LR | Reach: | 10Gbps |
|---|---|---|---|
| Type: | SFP+ | Wavelength: | 1310nm |
| Distance: | 10km | Compatible: | Edgecore |
| TX Power: | -6 ~ 0 DBm | Receiver Sensitivity: | < -14.4 DBm |
| Function Options: | DOM | Operating Temperature: | 0-70°C, -40-85°C |
| High Light: | 10ge SFP+ Transceiver Module,10km SFP+ Transceiver Module,1310nm sfp+ optical |
||

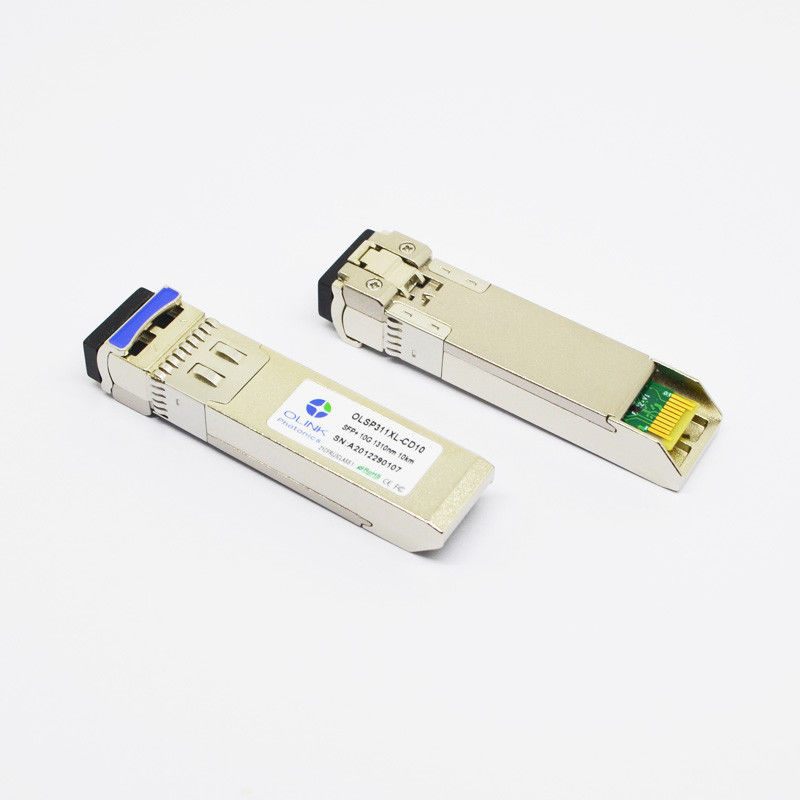

OEM 10GBASE-LR 10ge SFP+ Transceiver Module Edgecore Compatible
Edgecore ET5402-LR Compatible 10GBASE-LR SFP+ Transceiver
Oinkcom's SFP+ LR transceivers provide 10GBase-LR throughput up to 10km over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters.
Product Features
1. Hot pluggable
2. 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR
3. Distance up to 10km on single mode fiber
4. Compliant with SFP+MSA
5. Duplex LC connector
6. Digital Diagnostic Monitor Interface
7. ROHS compliant and lead-free
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 9.953 | 10.3125 | 10.518 | Gb/s | |
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 280 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Digital Diagnostic Specifications
The OLSP851XL-C(I)DS3 transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.
| Parameter | Symbol | Units | Min. | Max. | Accuracy | Note |
| Transceiver temperature | DTemp-E | ºC | -45 | +90 | ±5ºC | 1 |
| Transceiver supply voltage | DVoltage | V | 2.8 | 4.0 | ±3% | |
| Transmitter bias current | DBias | mA | 0 | 80 | ±10% | 2 |
| Transmitter output power | DTx-Power | dBm | -8 | +1 | ±2dB | |
| Receiver average input power | DRx-Power | dBm | -13 | 0 | ±2dB |
Notes:
1. Internally measured
2. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser
Details
• High transmission margin
• Very low EMI and excellent ESD protection
• Wide data-rate range
