| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSP851XL-C(I)DS3 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ 1310nm 10km | Data Rate: | 10Gbps |
|---|---|---|---|
| Form Factor: | SFP+ | Wavelength: | 1310nm |
| Distance: | 10km | Compatibility: | Ubiquiti |
| TX Power: | -6 ~ 0 DBm | Receiver Sensitivity: | < -14.4 DBm |
| Function Options: | DOM | Operating Temperature: | 0-70°C, -40-85°C |
| High Light: | 10gb SFP+ Module,1310nm 10km SFP+ Module,1310nm Sfp+ Optical Transceiver |
||

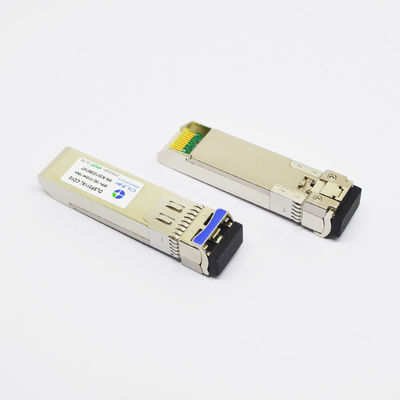

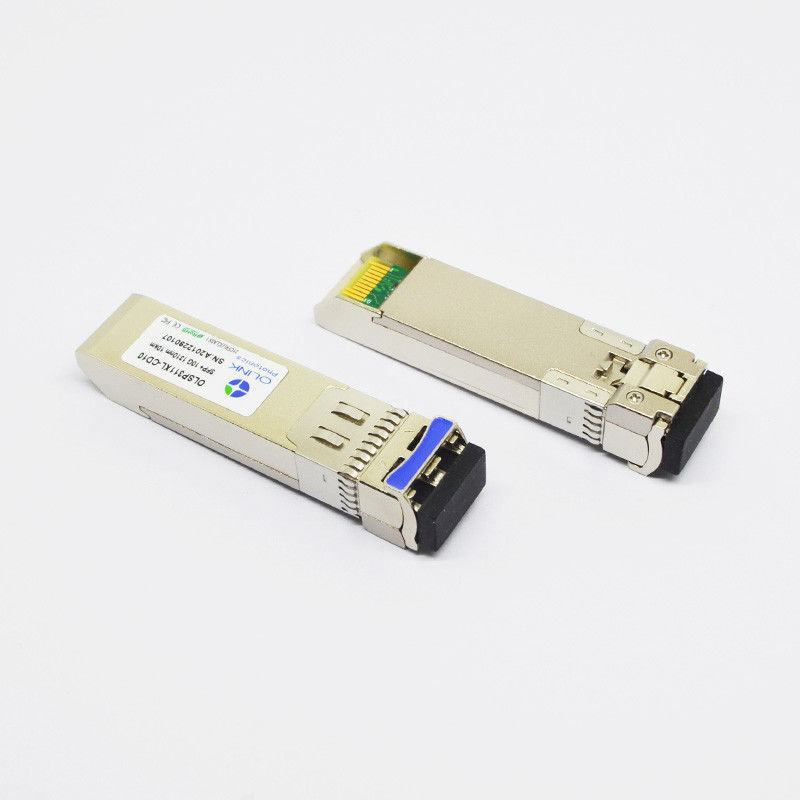

10GBASE-LR 10gb SFP+ Module 1310nm 10km Sfp+ Optical Transceiver
Ubiquiti UF-SM-10G Compatible 10GBASE-LR SMF 1310nm 10km SFP+ Module
Olinkcom's Ubiquiti UF-SM-10G compatible SFP+ module provides a high performance and cost-effective replacement, supporting data-rate of 10.3125Gbps (10GBASE-LR) or 9.953Gbps (10GBASE-LW) over single mode optical fiber. This module is programmed to be compatible with a wide range of Ubiquiti Networks equipment such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and Media Converters.
Product Features
1. Hot-pluggable SFP+ footprint
2. 1310nm DFB transmitter, PIN photo-detector
3. Distance up to 10km on single mode fiber
4. Compliant with SFP+ MSA with LC connector
5. Single 3.3V power supply
6. Case operating temperature range: Commercial: 0°C to +70°C, Industrial: -40-85°C
Electrical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Differential data input swing | VINPP | 180 | 700 | mVpp | 1 | |
| Transmit Disable Voltage | VD | VCC-0.8 | Vcc | V | ||
| Transmit Enable Voltage | VEN | Vee | Vee+0.8 | |||
| Input differential impedance | Rin | 100 | Ω | |||
| Receiver | ||||||
| Differential data output swing | Vout,pp | 300 | 850 | mVpp | 2 | |
| Output rise time and fall time | Tr, Tf | 28 | Ps | 3 | ||
| LOS asserted | VLOS_F | VCC-0.8 | Vcc | V | 4 | |
| LOS de-asserted | VLOS_N | Vee | Vee+0.8 | V | 4 | |
Note:
1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
2. Into 100Ω differential termination.
3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an acceptable alternative.
4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1260 | 1310 | 1355 | nm | |
| Ave. output power (Enabled) | PAVE | -6 | 0 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 4 | 4.5 | dB | ||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||
| Dispersion penalty | TDP | 3.2 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 1270 | 1600 | nm | |||
| Receiver Sensitivity | PSEN2 | -14.4 | dBm | 2 | ||
| Overload | PAVE | 0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -18 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured at the BER less than 1E-12, back to back. The measure pattern is PRBS 231-1 with worst ER=4.5@ 10.3125Gb/s.
FAQ
1. How about the warranty ?
All of our products are 3 years warranty (The return and change service within 1 year, repair within 2 years)
2. What is your transport method?
Depend on client's choice (Such as UPS,Fedex,TNT or DHL)
Related Products
| PART NO. | DATA RATE | WAVELENGTH | DISTANCE |
| OLSP311XL-CD02 | 10Gbps | 1310nm | 2km |
| OLSP311XL-CD10 | 10Gbps | 1310nm | 10km |
| OLSP311XL-CD20 | 10Gbps | 1310nm | 20km |
| OLSP311XL-CD10S | 10Gbps | 1310nm | 40km |
| OLSP551XL-CD40 | 10Gbps | 1550nm | 40km |
| OLSP551XL-CD80 | 10Gbps | 1550nm | 80km |
| OLSP551XL-CDH1 | 10Gbps | 1550nm | 100km |
