| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSP311XL-CD10 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ 1310nm 10km | Compatible: | Brocade |
|---|---|---|---|
| Data Rate: | 10Gbps | Package: | SFP+ |
| Wavelength: | 1310nm | Distance: | 10km |
| Device Type: | SFP+ LR | Operating Temperature: | 0-70°C, -40-85°C |
| Function Options: | DOM | Warranty: | 3 Years |
| High Light: | FTTH SFP+ Module,1310nm SFP+ Module,10gbe SFP+ Module |
||

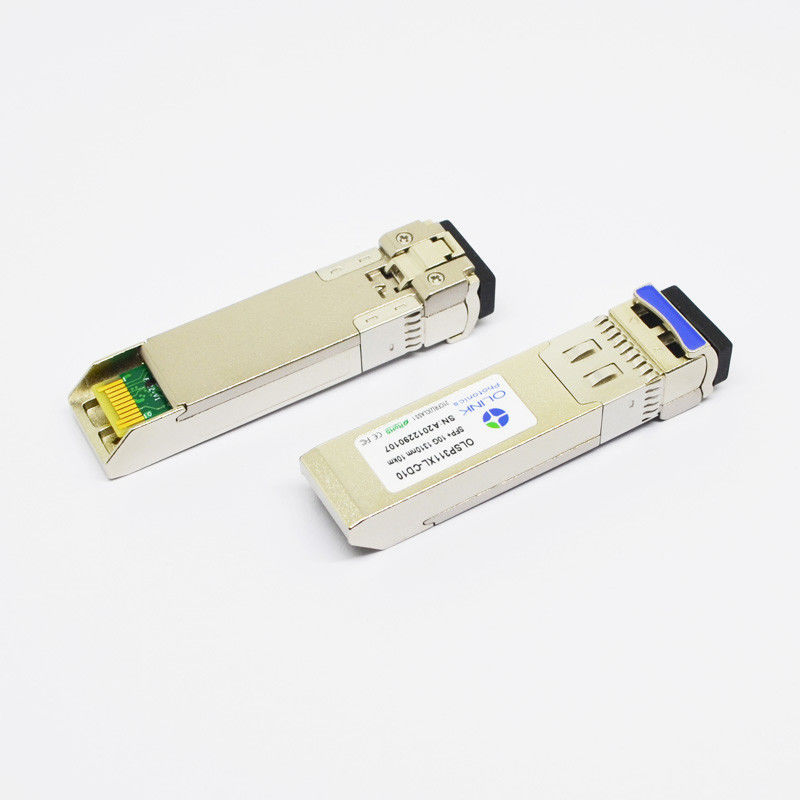

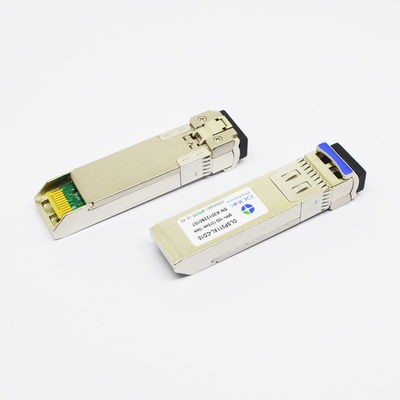

FTTH FTTB SFP+ Module Multi Mode Fiber 10gbe LC 1310nm Low Power Consumption
Brocade 10G-SFP+-LR Compatible 10GBASE-LR SFP+ 1310nm 10km Transceiver
1. Optical interface compliant to IEEE 802.3ae 10GBASE-LR
2. Electrical interface compliant to SFF-8431
3. Hot Pluggable
4. 1310nm DFB transmitter, PIN photo-detector
6. Operating case temperature: 0 to 70℃, -40 to 85°C
7. Low power consumption
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | 9.953 | 10.3125 | 11.3 | Gb/s | ||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 300 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| TI | -40 | 85 |
Digital Diagnostic Specifications
The OLSP311XL-C(I)D10 transceivers can be used in host systems that require either internally or externally
calibrated digital diagnostics.
| Parameter | Symbol | Units | Min. | Max. | Accuracy | Note |
| Transceiver temperature | DTemp-E | ºC | -45 | +90 | ±5ºC | 1,2 |
| Transceiver supply voltage | DVoltage | V | 2.8 | 4.0 | ±3% | |
| Transmitter bias current | DBias | mA | 2 | 80 | ±10% | 3 |
| Transmitter output power | DTx-Power | dBm | -8 | +2 | ±2dB | |
| Receiver average input power | DRx-Power | dBm | -16 | 0 | ±2dB |
Notes:
1. When Operating temp.=0~70 ºC,the range will be min=-5,Max=+75
2. Internally measured
3. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser
• ICX Switches – ICX6450-24
• ICX Switches – ICX6450-24-A
• ICX Switches – ICX6450-24P
• ICX Switches – ICX6450-24P-A
• ICX Switches – ICX6450-48
• ICX Switches – ICX6450-48-A
• ICX Switches – ICX6450-48P
• ICX Switches – ICX6450-48P-A
• ICX Switches – ICX6610-24-E
• ICX Switches – ICX6610-24F-E
• ICX Switches – ICX6610-24F-I
• ICX Switches – ICX6610-24F-PE
• ICX Switches – ICX6610-24F-PI
• ICX Switches – ICX6610-24-I
• ICX Switches – ICX6610-24P-E
• ICX Switches – ICX6610-24-PE
OLSP311XL-CD10 are certified 100% compliant in all OEM applications. They are pre-configured with an application specific code to meet the requirement set forth by the router and switch OEMs. Olinkcom's compatible transceivers perform, fit and function identically when compared to “Original” Transceivers. Our transceivers fully comply with the multi-sourcing agreement (MSA) which enables them to work in all MSA compliant platforms.
• ICX Switches – ICX6610-24P-I
• ICX Switches – ICX6610-24-PI
• ICX Switches – ICX6610-24P-PE
• ICX Switches – ICX6610-24P-PI
• ICX Switches – ICX6610-48-E
• ICX Switches – ICX6610-48-I
• ICX Switches – ICX6610-48P-E
• ICX Switches – ICX6610-48-PE
• ICX Switches – ICX6610-48P-I
• ICX Switches – ICX6610-48-PI
• ICX Switches – ICX6610-48P-PE
• ICX Switches – ICX6610-48P-PI
• ICX Switches – ICX6650-32-ADV
• ICX Switches – ICX6650-32-E-ADV
• ICX Switches – ICX6650-48-E-ADV
• ICX Switches – ICX6650-56-E-ADV
