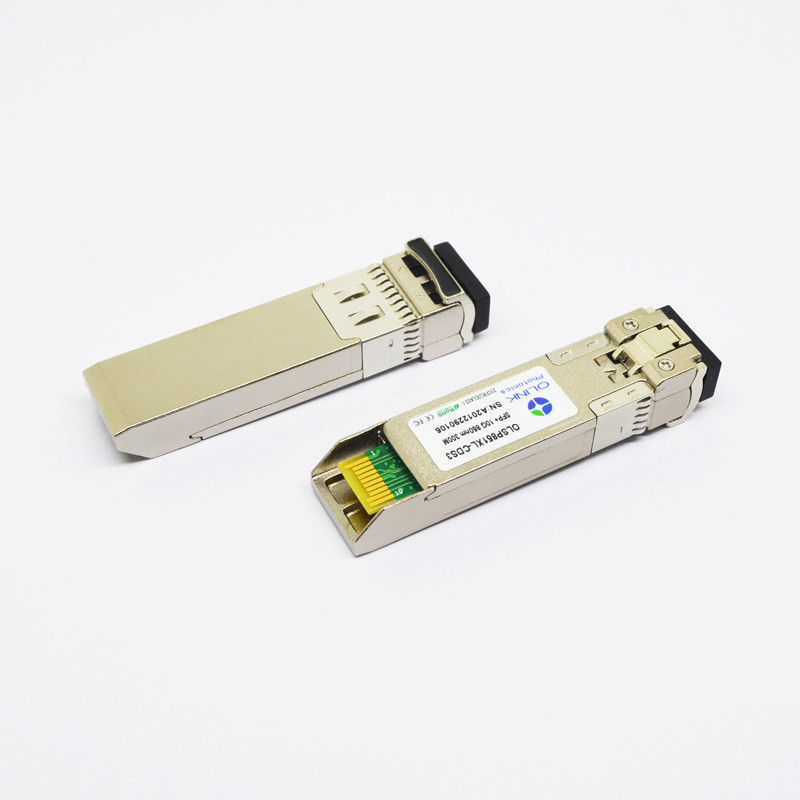

Edgecore Compatible 10GBASE-SR SFP+ Transceiver 850nm 300m DOM

Basic Information
Place of Origin: China
Brand Name: OLKOPTO
Certification: CE, RoHS, FCC, FDA, UL, EMC, ISO9001
Model Number: OLSP851XL-C(I)DS3
Minimum Order Quantity: 1 pc
Price: negotiable
Packaging Details: 10pcs/ foil bag, individual package
Delivery Time: 3-6 working days
Payment Terms: T/T
Supply Ability: 80-120k per month
Product: 10G SFP+ SR Reach: 10Gbps
Type: SFP+ Wavelength: 850nm
Distance: 300m Compatible: Edgecore
TX Power: -6 ~ -1 DBm Receiver Sensitivity: < -10 DBm
Function Options: DOM Operating Temperature: 0-70°C, -40-85°C
High Light:



300m 10GBASE-SR SFP+


850nm SFP+ Transceiver

Edgecore Compatible 10GBASE-SR SFP+ Transceiver 850nm 300m DOM


Edgecore ET5402-SR Compatible 10GBASE-SR SFP+ 850nm 300m Transceiver


The Edgecore ET5402-SR compatible transceiver provides a high performance and cost-effective solution for 10.3125Gbps (10GBASE-SR) or 9.953Gbps (10GBASE-SW) fiber connectivity over multi-mode optical cable. It is programmed to be suitable for use with Edgecore 10-Gigabit Ethernet Switches, Security gateway appliances and Network Adapters.


Product Features

1. Hot pluggable
2. 10Gb/s serial optical interface
3. Up to 300m on 50/125um MMF (2000MHZ km)
4. Compliant with SFP+MSA
5. SFP MSA package with duplex LC connector
6. Digital Diagnostic Monitor Interface


Absolute Maximum Ratings

Parameter Symbol Min. Max. Unit Note
Supply Voltage Vcc -0.5 4.0 V
Storage Temperature TS -40 85 °C
Relative Humidity RH 0 85 %


Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.


General Operating Characteristics

Parameter Symbol Min. Typ Max. Unit Note
Data Rate DR 9.953 10.3125 10.518 Gb/s
Supply Voltage Vcc 3.13 3.3 3.47 V
Supply Current Icc5     280 mA
Operating Case Temp. Tc 0   70 °C
TI -40   85



Digital Diagnostic Specifications


The OLSP851XL-C(I)DS3 transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.

Parameter Symbol Units Min. Max. Accuracy Note
Transceiver temperature DTemp-E ºC -45 +90 ±5ºC 1
Transceiver supply voltage DVoltage V 2.8 4.0 ±3%
Transmitter bias current DBias mA 0 80 ±10% 2
Transmitter output power DTx-Power dBm -8 +1 ±2dB
Receiver average input power DRx-Power dBm -13 0 ±2dB


1. Internally measured

2. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser



+3.3V single power supply
Below 1W power consumption
High transmission margin
Very low EMI and excellent ESD protection
Wide data-rate range

Olinkcom always provide high performance and costly effective solution for customers in datacom and storage applications.
