| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSP851XL-C(I)DS3 |
| Minimum Order Quantity: | 1 pc |
| Packaging Details: | 10pcs/ foil bag |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ 850nm 300m | Data Rate: | 10Gbps |
|---|---|---|---|
| Form Factor: | SFP+ | Wavelength: | 850nm |
| Distance: | 300m | Compatibility: | Ubiquiti |
| TX Power: | -6 ~ -1 DBm | Receiver Sensitivity: | < -10 DBm |
| Function Options: | DOM | Operating Temperature: | 0-70°C, -40-85°C |
| High Light: | SR 10G SFP+ Optical Transceiver,850nm SFP+ Optical Transceiver,300m sfp+ sr |
||

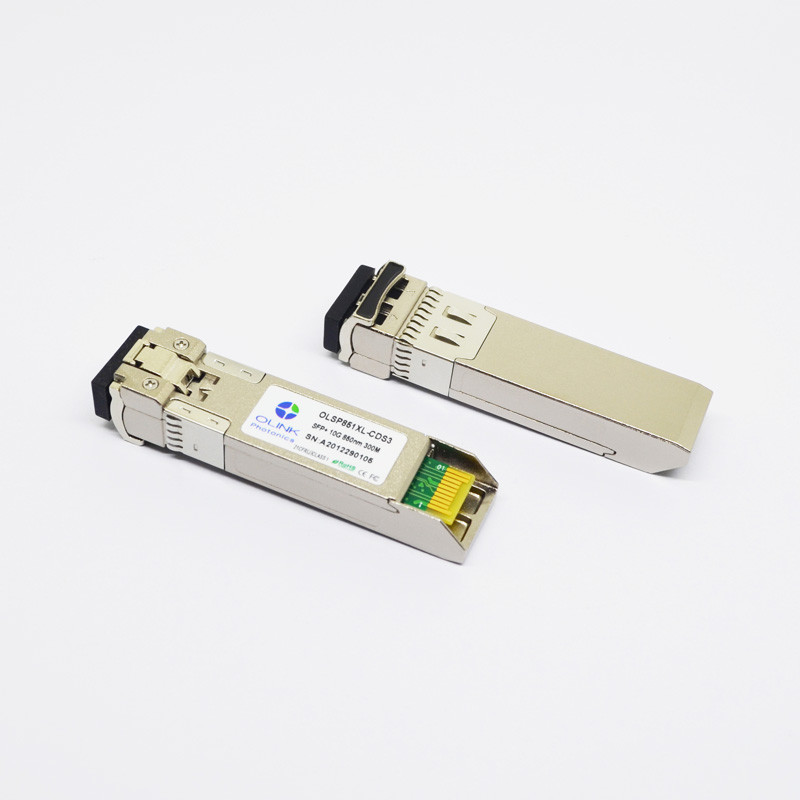

Ubiquiti Compatible 10G SFP+ Optical Transceiver SR 850nm 300m Multi Mode
Ubiquiti UF-MM-10G Compatible 10GBASE-SR SFP+ 850nm 300m Transceiver
Olinkcom's Ubiquiti UF-MM-10G compatible SFP+ SR module is suitable for use with Ubiquiti 10G network equipment. It supports data-rate of 10.3125Gbps (10GBASE-SR) or 9.953Gbps (10GBASE-SW) over multi-mode fiber cable. The module is programmed to work with Ubiquiti Switches, Routers, Network Interface Cards (NICs) and Ethernet Media Converters.
Product Features
1. Hot-pluggable SFP+ footprint
2. Up to 300m on 50/125um MMF (2000MHZ km)
3. Compliant with SFP+ MSA with LC connector
4. Single 3.3V power supply
5. Case operating temperature range: Commercial: 0°C to +70°C, Industrial: -40-85°C
Electrical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Differential data input swing | VINPP | 180 | 700 | mVpp | 1 | |
| Transmit Disable Voltage | VD | VCC-0.8 | Vcc | V | ||
| Transmit Enable Voltage | VEN | Vee | Vee+0.8 | |||
| Input differential impedance | Rin | 100 | Ω | |||
| Receiver | ||||||
| Differential data output swing | Vout,pp | 300 | 850 | mVpp | 2 | |
| Output rise time and fall time | Tr, Tf | 28 | Ps | 3 | ||
| LOS asserted | VLOS_F | 2 | Vcc_HOST | V | 4 | |
| LOS de-asserted | VLOS_N | Vee | Vee+0.8 | V | 4 | |
Note:
1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
2. Into 100Ω differential termination.
3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an acceptable alternative.
4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.
Optical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Ave. output power (Enabled) | PAVE | -6 | -1 | dBm | 1 | |
| Extinction Ratio | ER | 4 | 4.5 | dB | ||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | 2 | ||
| Dispersion penalty | TDP | 3.9 | dB | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 840 | 850 | 860 | nm | ||
| Receiver Sensitivity(ER=4.5) | PSEN1 | -11.1 | dBm | 3 | ||
| Overload | PAVE | 0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -12 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
2. 20%~80%
3.Under the ER worst case=4.5@ 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
FAQ
1. How about the warranty ?
All of our products are 3 years warranty (The return and change service within 1 year, repair within 2 years)
2. What is your transport method?
Depend on client's choice (Such as UPS,Fedex,TNT or DHL)
