| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSP311XL-CD10 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag, individual package |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ 1310nm 10km | Data Rate: | 10Gbps |
|---|---|---|---|
| Form Factor: | SFP+ | Wavelength: | 1310nm |
| Distance: | 10km | Compatibility: | Mikrotik |
| Transmitter Power: | -6 ~ 0 DBm | Receiver Sensitivity: | < -14.4 DBm |
| Optical Optical Components: | DFB/PIN | Digital Diagnostic Monitoring: | YES |

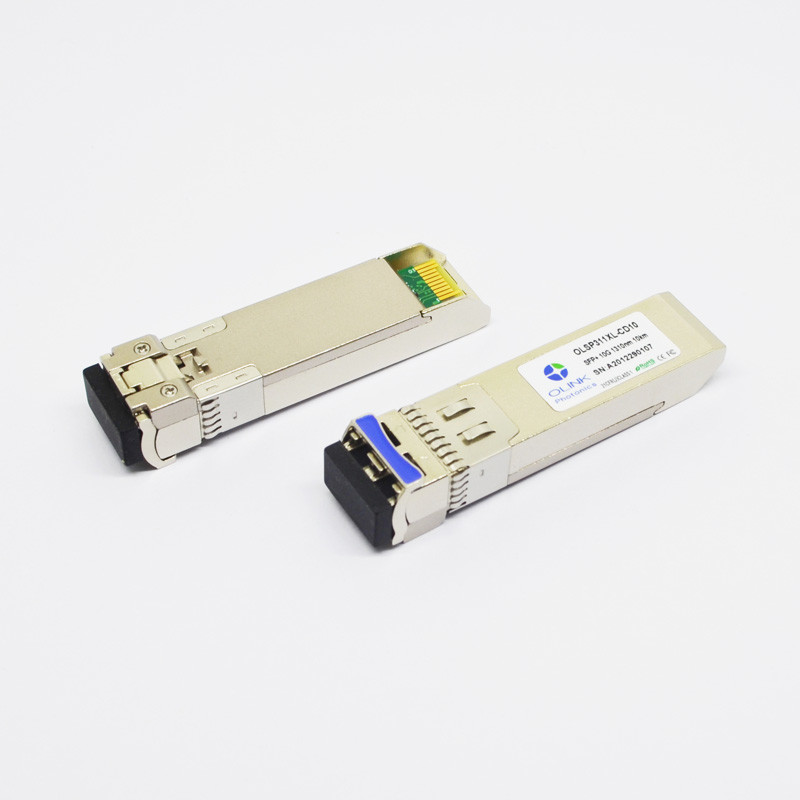

Mikrotik S+31DLC10D Compatible 10GBASE-LR SMF 1310nm 10km SFP+ Transceiver
Olinkcom's OLSP851XL-C(I)DS3 transceivers are designed for use in 10Gb/s links up to 300m over Type A1a (50/125 µm multimode) fiber. The SFP+ module supports IEEE 802.3ae 10GBASE-SR and –SW applications along with 10G FC 1200-Mx-SN-I applications for Ethernet Switches or IP Router optical interfaces.
Product Features
• Hot-pluggable footprint
• Electrical interface compliant to SFF-8431
• Compliant with SFF-8472
• 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR
• 1310nm DFB transmitter, PIN photo-detector
• Metal enclosure,for lower EMI
Electrical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Differential data input swing | VINPP | 180 | 700 | mVpp | 1 | |
| Transmit Disable Voltage | VD | VCC-0.8 | Vcc | V | ||
| Transmit Enable Voltage | VEN | Vee | Vee+0.8 | |||
| Input differential impedance | Rin | 100 | Ω | |||
| Receiver | ||||||
| Differential data output swing | Vout,pp | 300 | 850 | mVpp | 2 | |
| Output rise time and fall time | Tr, Tf | 28 | Ps | 3 | ||
| LOS asserted | VLOS_F | 2 | Vcc_HOST | V | 4 | |
| LOS de-asserted | VLOS_N | Vee | Vee+0.8 | V | 4 | |
Note:
1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
2. Into 100Ω differential termination.
3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an acceptable alternative.
4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.
Optical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Ave. output power (Enabled) | PAVE | -6 | -1 | dBm | 1 | |
| Extinction Ratio | ER | 4 | 4.5 | dB | ||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | 2 | ||
| Dispersion penalty | TDP | 3.9 | dB | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 840 | 850 | 860 | nm | ||
| Receiver Sensitivity(ER=4.5) | PSEN1 | -11.1 | dBm | 3 | ||
| Overload | PAVE | 0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -12 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
2.20%~80%
3.Under the ER worst case=4.5@ 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
• CCR1036-12G-4S
• CCR1036-8G-2S+
• CCR1009-8G-1S-1S+
• CCR1016-12S-1S+
• CCR1016-12G
• CRS125-24G-1S Gigabit Ethernet layer 3 Smart Switch
• CRS226-24G-2S+ Gigabit Ethernet Smart Switch
• CRS210-8G-2S+ Gigabit Smart Switch
| Related Products | |||
| PART NO. | DATA RATE | WAVELENGTH | DISTANCE |
| OLSP311XL-CD02 | 10Gbps | 1310nm | 2km |
| OLSP311XL-CD10 | 10Gbps | 1310nm | 10km |
| OLSP311XL-CD20 | 10Gbps | 1310nm | 20km |
| OLSP311XL-CD10S | 10Gbps | 1310nm | 40km |
| OLSP551XL-CD40 | 10Gbps | 1550nm | 40km |
| OLSP551XL-CD80 | 10Gbps | 1550nm | 80km |
| OLSP551XL-CDH1 | 10Gbps | 1550nm | 100km |
