| Cisco Compatible: | SFP-10G-LR | Vendor Name: | Olinkcom |
|---|---|---|---|
| Form Factor: | SFP+ | Data Rate: | 11.3Gb/s Bit Rates |
| Wavelength: | 1310nm | Distance: | 10km |
| Connector: | LC Duplex | DDM/DOM: | Supported |
| Highlight: | 1310nm 10G SFP+ Optical Transceiver,10km SFP+ Optical Transceiver,1310nm sfp+ transceiver |
||

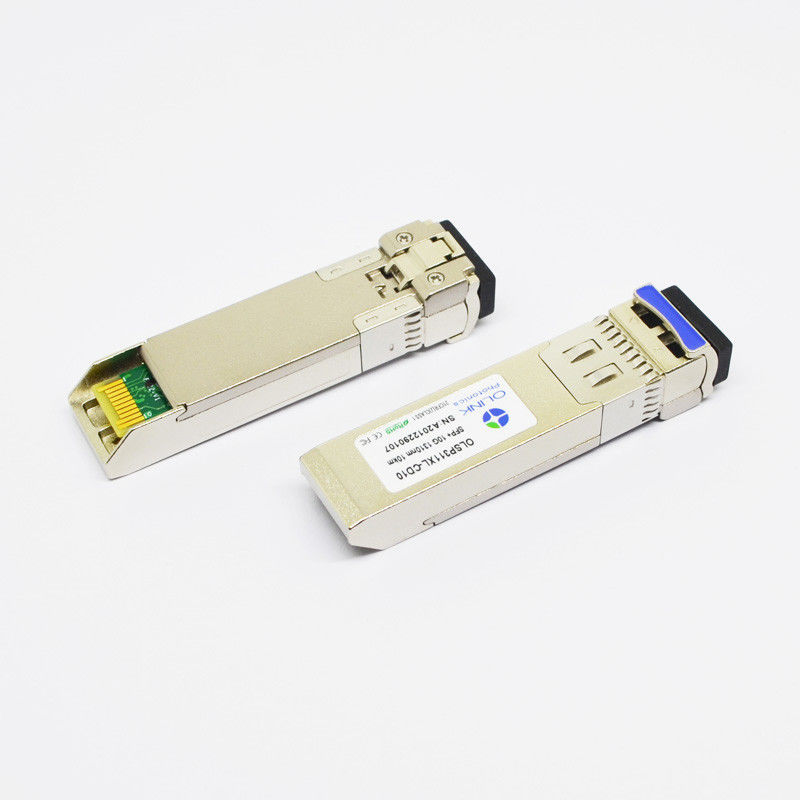

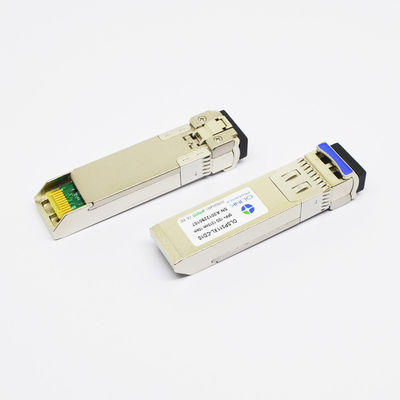

1310nm 10km 10G SFP+ Optical Transceiver
Cisco SFP-10G-LR Compatible 10GBASE-LR SFP+ 1310nm 10km DOM LC SMF Optical Transceiver
Product Descriptions
Cisco SFP-10G-LR designed for use in 10-Gigabit Ethernet links up to 10km over SingleMode fiber. Low power consumption and low latency allow your network devices to work efficiently, and the DDM function supports real-time monitoring for transceiver status.
Electrical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Differential data input swing | VINPP | 180 | 700 | mVpp | 1 | |
| Transmit Disable Voltage | VD | VCC-0.8 | Vcc | V | ||
| Transmit Enable Voltage | VEN | Vee | Vee+0.8 | |||
| Input differential impedance | Rin | 100 | Ω | |||
| Receiver | ||||||
| Differential data output swing | Vout,pp | 300 | 850 | mVpp | 2 | |
| Output rise time and fall time | Tr, Tf | 28 | Ps | 3 | ||
| LOS asserted | VLOS_F | VCC-0.8 | Vcc | V | 4 | |
| LOS de-asserted | VLOS_N | Vee | Vee+0.8 | V | 4 | |
Note:
1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
2. Into 100Ω differential termination.
3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an acceptable alternative.
4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1290 | 1310 | 1330 | nm | |
| Ave. output power (Enabled) | PAVE | -6 | 0 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 4 | 4.5 | dB | ||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||
| Dispersion penalty | TDP | 3.2 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 1270 | 1600 | nm | |||
| Receiver Sensitivity | PSEN2 | -14.4 | dBm | 2 | ||
| Overload | PAVE | 0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -18 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured at the BER less than 1E-12, back to back. The measure pattern is PRBS 231-1 with worst ER=4.5@ 10.3125Gb/s.
Product Features
● Low power consumption, < 1W
● Digital Diagnostic Monitor Interface
● Optical interface compliant to IEEE 802.3ae 10GBASE-LR
● Electrical interface compliant to SFF-8431
● Operating case temperature: Commerical: 0 to 70 °C
Applications
● 10GBASE-LR/LW at 10.3125Gbps
● 10G Fiber Channel
