| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | RoHs, FCC, CE, UL etc |
| Model Number: | OLCFXXTXL-CD10 |
| Minimum Order Quantity: | 1 pc |
| Packaging Details: | Individual package |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T or Net 30 days |
| Supply Ability: | 10K per month |
| Data Rate: | 103.1 Gbps | Form Factor: | CFP2 |
|---|---|---|---|
| Wavelength: | 1310nm | Distance: | 10km |
| Connector: | Duplex LC | Source: | DML+PIN |
| Optical Power: | -4.3~4.5 | Sensitivity: | <-10.6 DBm |
| Operating Temperature: | 0~70℃ | Fiber Type: | SMF |
| DOM: | Supported | Application: | ●Local Area Network(LAN) ●Wide Area Network(WAN) ●Switch To Router Interface ●ITU-T OTU4 OTL4.4 |
| High Light: | 10km 1310nm Cfp2 Transceiver,10km Cfp2 Transceiver,cfp2 100g lr4 |
||

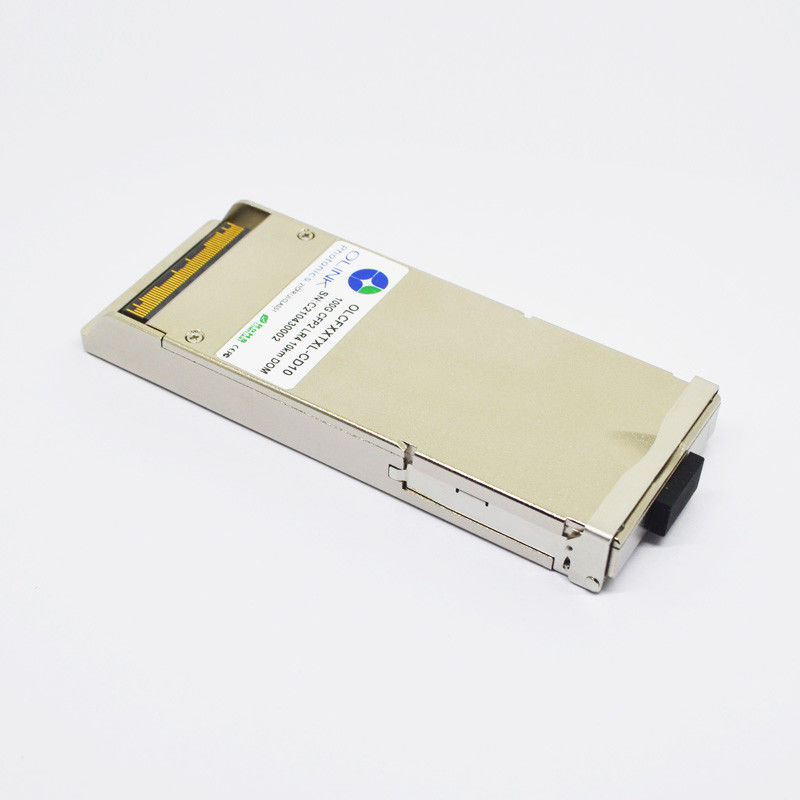

1310nm 10km DOM LC SMF Cfp2 Transceiver CFP2-100G-LR4 Compatible
Cisco CFP2-100G-LR4-C Compatible 100GBASE-LR4 1310nm 10km DOM LC SMF Transceiver Module
Product Features
●Supports up to 112Gbps bit rates
●Duplex LC connector
●Hot pluggable
●Operating electrical serial data rate up to 27.952493Gbps
●4 parallel electrical serial interface
●Applicable for 10km SMF connection
●Low power consumption, < 6W
●Digital Diagnostic Monitor Interfacel
●MDIO Communication Interface
●Compliant with 100GBASE-LR4 and OTU4
●Operating case temperature:
Commerical:0 to 70 °C
Functional Description
Olinkcom’ OLCFXXTXL-CD10, 100G CFP2 LR4 optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed,and passed on to four laser drivers, which control four electric-absorption modulated lasers (EMLs) with 1296, 1300, 1305, and 1309 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.On the receive side, 4 lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and MDIO management interface.
