| Data Rate: | 10Gb/s | Type: | SFP+ |
|---|---|---|---|
| Tx/Rx Wavelength: | 1550/1490nm | Distance: | 80km |
| Source: | Cooled 1550nm EML Transmitter, 1490nm APD Receiver | Operating Temperature: | 0~70℃ |
| Compatibility: | Multi-Vendor MSA Compatible | Application: | ●10.3125Gbps Ethernet ●10GBASE-LW At 9.953Gbps ●Other Optical Link |
| High Light: | BiDi 10G SFP+ Optical Transceiver,1490nm SFP+ Optical Transceiver,BiDi 10gbe sfp+ |
||

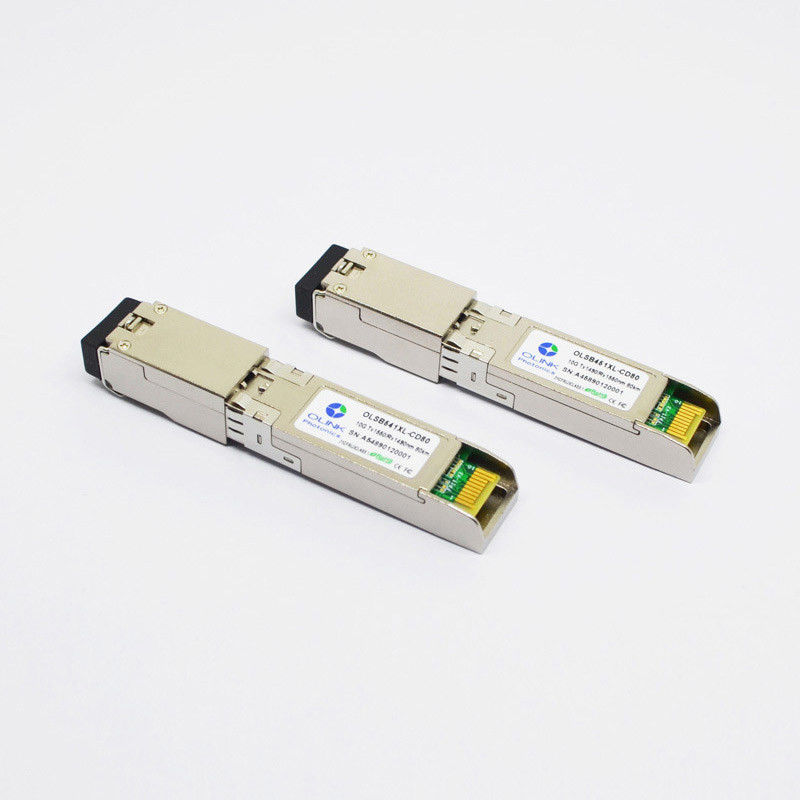

1550nmTX 1490nmRX 10G SFP+ Optical Transceiver
Cisco SFP-10G-BX80D Compatible BiDi SFP+ 1550nmTX/1490nmRX 80km Transceiver
Key Technical Data
| TX Wavelength: | 1490 nm. | Media Type: | Single-Mode Fiber (SMF) |
| RX Wavelenght: | 1550 nm. | Maximum Distance: | 80km |
| Supported Data Rate: | 1.0625-10.52 Gbps | Supported Applications: | 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps) |
| Connectors: | Double LC | Transmitter Type: | EML Laser |
| Minimum Transmitting Power: | 0 dB | Receiver Type: | APD Photodiode |
| Maximum Transmitting Power: | 6 dB | Compliance: | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA |
| Receiver Sensitivity: | -21 dBm | Power: | +3.3V single power supply |
Optical Characteristics (TOP(C) = 0 to 70 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1483 | 1490 | 1497 | nm | |
| 1543 | 1550 | 1577 | ||||
| Ave. output power (Enabled) | PAVE | 0 | 6 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 8.2 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||
| Dispersion penalty | TDP | 3.2 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1550 | nm | |||
| 1490 | ||||||
| Receiver Sensitivity | PSEN1 | -21 | dBm | 2 | ||
| Overload | PAVE | -7 | dBm | |||
| LOS Assert | Pa | -40 | dBm | |||
| LOS De-assert | Pd | -25 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER=9; BER<10-12; 231 – 1 PRBS.
Product Features
● Supports 9.95 to 11.3Gb/s bit rates
● Hot pluggable SFP+ footprint
● Cooled 1490nm EML transmitter, 1550nm APD receiver
● Cooled 1550nm EML transmitter, 1490nm APD receiver
● Applicable for 80km SMF connection
● Low power consumption, < 1.5W
Product Descriptions
OLSB541XL-CD80 uses top quality EML Laser transmitter with operating at nominal wavelength 1490 nm and 1550 nm APD Photodiode receiver. It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. OLSB541XL-CD80 operates in Standard 0°-70°C temperature range and has Single LC interface. SFP+ support 1.0625-10.52 Gbps data rate and such applications as 10G Fiber Channel (10.52 Gbps)|8G Fiber Channel (8.5 Gbps)|4G Fiber Channel (4.25 Gbps)|2G Fiber Channel (2.125 Gbps)|1G Fiber Channel (1.0625 Gbps).
Application
Storage Area Network
Data Center
Fiber Channel Interconnections over Backbone
Enterprise Networks SAN Interconnections
other optical links
