| Date Rate: | 10GBASE | Form Factor: | SFP+ |
|---|---|---|---|
| Wavelength: | 1550nm | Reach: | 80km |
| Source: | EML+APD | Optical Power: | 0~+5 |
| Sensitivity: | <-24 DBm | Application: | ●10GBASE-ZR At 10.3125Gbps ●OTN G.709 OTU1e/2/2e ●4x, 8x And 10x 10G Fiber Channel |
| High Light: | 80km 10G SFP+ Optical Transceiver,1550nm SFP+ Optical Transceiver,80km 10g sfp+ |
||

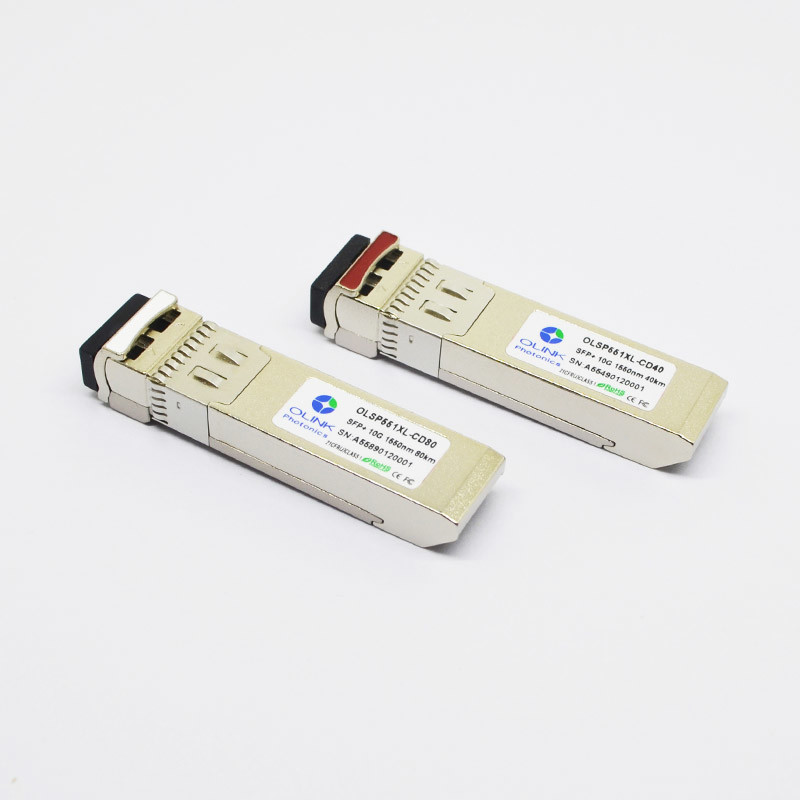

1550nm 80km 10G SFP+ Optical Transceiver
Cisco SFP-10G-ZR-C Compatible 10G-ZR SFP+ 1550nm 80km SMF Transceiver Module
Product Descriptions
1. Type: SFP+
2. Compatibility: Multi-Vendor MSA Compatible
3. Tx/Rx Wavelength: 1550 nm. / 1550 nm.
4. Media Type: Single-Mode Fiber (SMF)
5. Max. Distance: 80 km
6. Data Rate: 1.25-10.31 Gbps
7. Temperature: Standard 0°-70°C
Technical Data
| TX Wavelength: | 1550 nm. | Media Type: | Single-Mode Fiber (SMF) |
| RX Wavelenght: | 1550 nm. | Maximum Distance: | 80km |
| Supported Data Rate: | 1.25-10.31 Gbps | Supported Applications: | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps) |
| Connectors: | Double LC | Transmitter Type: | EML Laser |
| Minimum Transmitting Power: | 0 dB | Receiver Type: | APD Photodiode |
| Maximum Transmitting Power: | 5 dB | Compliance: | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA |
| Receiver Sensitivity: | -23 dBm | Power: | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA |
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1543 | 1550 | 1557 | nm | |
| Ave. output power (Enabled) | PAVE | 0 | 5 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 8.2 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1260 | 1610 | nm | ||
| Receiver Sensitivity | PSEN1 | -24 | dBm | 2 | ||
| Recevier Reflectance | Rrx | -27 | dB | |||
| Overload | PAVE | -7 | dBm | |||
| LOS Assert | Pa | -37 | dBm | |||
| LOS De-assert | Pd | -28 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured with worst ER=9dB
2. PRBS 231 – 1 and BER<10-12@10.3125G
Product Features
● Supports 9.95 to 11.3Gb/s bit rates with Dual CDR
● Duplex LC connector
● Hot pluggable SFP+ footprint
● Cooled 1550nm EML transmitter, APD receiver
● Applicable for 80km SMF connection
● Low power consumption, < 1.5W
● Digital Diagnostic Monitor Interface
● Optical interface compliant to IEEE 802.3ae 10GBASE-ZR
● Electrical interface compliant to SFF-8431,SFF-8432
● Operating case temperature:
Commerical:0 to 70 °C
Applications
● 10GBASE-ZR at 10.3125Gbps
● OTN G.709 OTU1e/2/2e
● 4x, 8x and 10x 10G Fiber Channel
● Other optical links
Product Brief
Olinkcom’s OLSP551XL-CD80 transceivers are Enhanced Small Form Factor Pluggable SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 80km of G.652 single mode fiber. They are compliant with SFF-8431, SFF-8432 and support 10G Ethernet ZR and 10G Fibre Channel.Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecommunication and datacom.
