| Place of Origin: | China |
|---|---|
| Brand Name: | OLKOPTO |
| Certification: | CE, RoHS, FCC, FDA, UL, EMC, ISO9001 |
| Model Number: | OLSCxx1XL-CD10 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiable |
| Packaging Details: | 10pcs/ foil bag |
| Delivery Time: | 3-6 working days |
| Payment Terms: | T/T |
| Supply Ability: | 80-120k per month |
| Product Name: | 10G SFP+ 850nm 300m | Data Rate: | 10Gbps |
|---|---|---|---|
| Form Factor: | SFP+ | Wavelength: | 850nm |
| Distance: | 300m | Compatibility: | HP |
| Part Number: | OLSCxx1XL-CD10 | Applications: | 10GBase-SR |
| Function Options: | DOM | Operating Temperature: | 0-70°C, -40-85°C |
| High Light: | Fiber 10G SFP+ Fiber Transceiver,300M 10G SFP+ Fiber Transceiver,10G Multimode Fiber Transceiver |
||

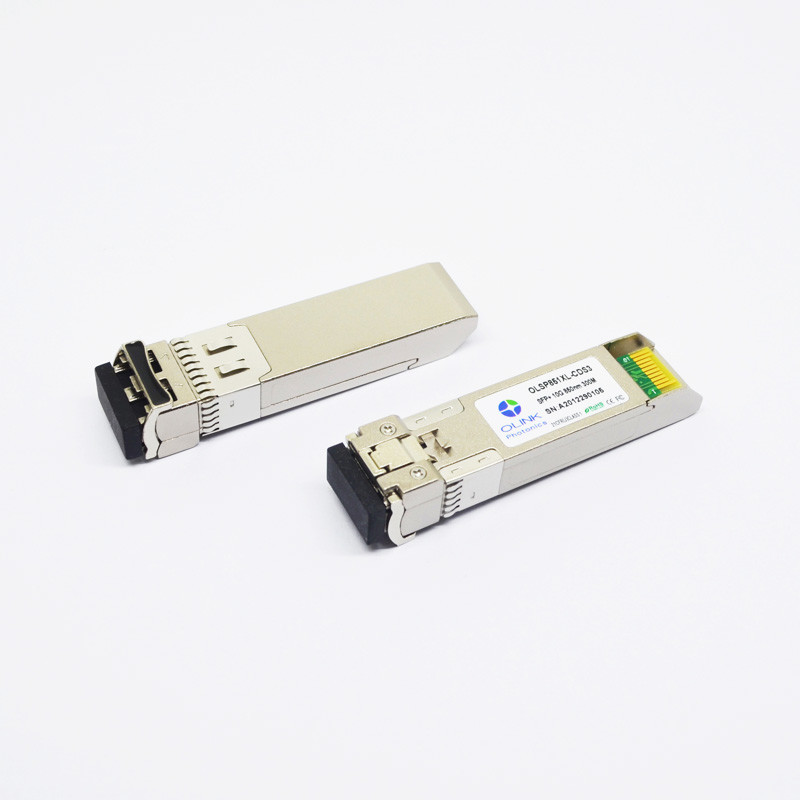

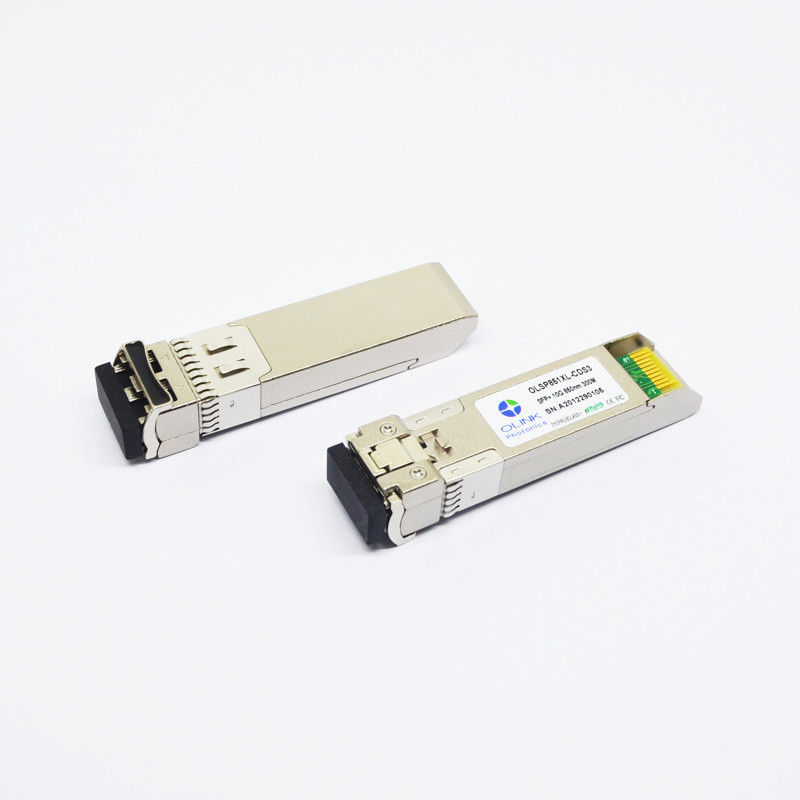

Multimode Fiber 10G SFP+ Fiber Transceiver 850nm 300m Transceiver HP Compatible
10G SFP+ LC SR 850nm 300m Transceiver HP Compatible JD092B
Product Features
● Supports up to 11.3Gb/s bit rates
● 100% HP Compatible
● SFP+ Transceiver Module
● Multimode Fiber (MMF)
● Up to 300m Reach
● 850nm Wavelength
● Duplex LC Connector
● Digital Diagnostics (DDM)
Optical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Ave. output power (Enabled) | PAVE | -6 | -1 | dBm | 1 | |
| Extinction Ratio | ER | 4 | 4.5 | dB | ||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | 2 | ||
| Dispersion penalty | TDP | 3.9 | dB | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | 840 | 850 | 860 | nm | ||
| Receiver Sensitivity(ER=4.5) | PSEN1 | -11.1 | dBm | 3 | ||
| Overload | PAVE | 0.5 | dBm | |||
| LOS Assert | Pa | -30 | dBm | |||
| LOS De-assert | Pd | -12 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
2. 20%~80%
3. Under the ER worst case=4.5@ 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
Product Descriptions
Olinkcom’s OLSP851XL-C(I)DS3 delivers 10 Gigabit connectivity over multimode fiber cable with a range of up to 300 m (984 ft). It provides a dependable and cost-effective way to add, replace or upgrade the ports on your networking equipment.
Applications
● 10G Base-SR/SW at 10.3125G
● 10G Fiber Channel
● 10G Ethernet
The HP JD092B compatible 10G SFP+ LC SR transceiver works with the following HP 10G Ethernet Switches and Routers.
• HP A5120 EI Switch Series
• HP A5500 EI Switch Series
• HP A5500 SI Switch Series
• HP A5800 Switch Series
• HP A5810 Switch Series
• HP A5820 Switch Series
• HP E4210G Switch Series
• HP E4500G Switch Series
• HP E4510G Switch Series
• HP E4800G Switch Series
• HPE FlexNetwork 7500 Switch Series
• HPE FlexFabric 7900 Switch Series
• HPE FlexFabric 11900 Switch Series
• HPE FlexNetwork 10500 Switch Series
